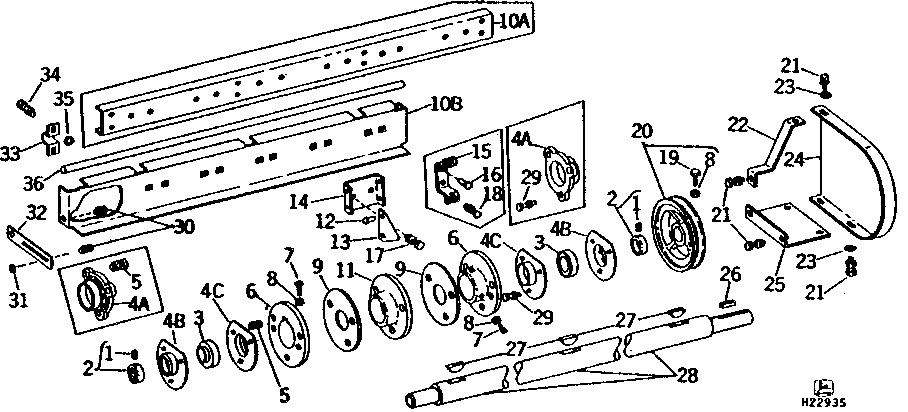

STRAW CHOPPER HUBS, SHAFT, KNIVES, AND SHIELD ( - 211800)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H775	2	Set Screw	5/16" X 1/4"
2	JD8551	2	Eccentric Locking Collar	-
2	JD8544	2	Bearing	-
3	JD8552	2	Ball Bearing	-
3	JD9274	2	BALL BEARING	-
5	14H812	6	NUT	3/8"
5	19H2284	3	Cap Screw	3/8" X 7/8"
5	19H1731	6	Cap Screw	3/8" X 1"
6	PK1876H	2	Hub	OUTER
7	22H853	4	Set Screw	3/8" X 7/8"
8	14H732	6	Nut	3/8"
9	P48911	2	Plate	INNER
11	PK1875H	1	Hub	INNER
12	AH84096	24	Rivet	(SUB AH116874, THIS APPLICATION)
12	AH116874	1	Rivet	(CTN. OF (100) Z8946H)
13	Z6451H	12	Section	-
14	H76181	6	Bracket	-
15	H76185	4	Bracket	-
16	16H658	8	Rivet	1/4" X 5/8"
17	03H1774	12	Bolt	5/16" X 5/8"
17	14H785	12	Nut	5/16"
17	19H1900	12	Cap Screw	5/16" X 3/4"
18	14H785	8	Nut	5/16"
18	03H1539	8	Bolt	5/16" X 5/8"
19	22H817	2	Set Screw	3/8" X 3/4"
20	AH78637	1	Pulley	(MARKED H76186) (SUB AH85419)
20	AH85419	1	Pulley	188 MM (7-3/8") DIA.
21	19H1813	6	CAP SCREW	5/16" X 5/8"
21	14H785	6	Nut	5/16"
22	H76210	1	Bracket	-
23	24H1136	3	Washer	11/32" X 11/16" X 0.065"
24	H98221	1	Shield	-
24	H76208	1	Shield	(SUB H98221)
25	H76209	1	Bracket	LOWER
26	-	1	Part 41	1/4" X 1/4" X 2", (CUT FROM H64374 IN H64587 KEY STOCK KIT)
27	26H31	3	Shaft Key	5/16" X 1-1/4"
28	H86747	1	Shaft	-
28	H76171	1	Shaft	(SUB AH86747, (2) JD8544 AND (2) JD9274)
29	19H1732	3	Cap Screw	3/8" X 1-1/4"
29	19H2284	3	Cap Screw	3/8" X 7/8"
29	14H812	3	NUT	3/8"
30	03H1500	4	Bolt	3/8" X 1"
30	14H812	4	NUT	3/8"
31	24H1305	2	Washer	13/32" X 13/16" X 0.065"
32	H84992	2	Strap	-
33	H84990	4	Clamp	-
34	03H1540	8	Bolt	5/16" X 3/4"
34	14H785	8	Nut	5/16"
35	24H1136	8	Washer	11/32" X 11/16" X 0.065"
36	H84995	1	Pin	-
4A	H76170	2	Housing	(SUB (2) H85011 AND (2) H85012)
4B	H85011	2	Pressed Flanged Housing	-
4C	H85012	2	Pressed Flanged Housing	-
4C	AH87743	2	Pressed Flanged Housing	-
10A	H76207	1	Bar	-
10B	H84998	1	Support	-

STRAW CHOPPER HUBS, SHAFT, KNIVES, AND SHIELD ( - 211800)
