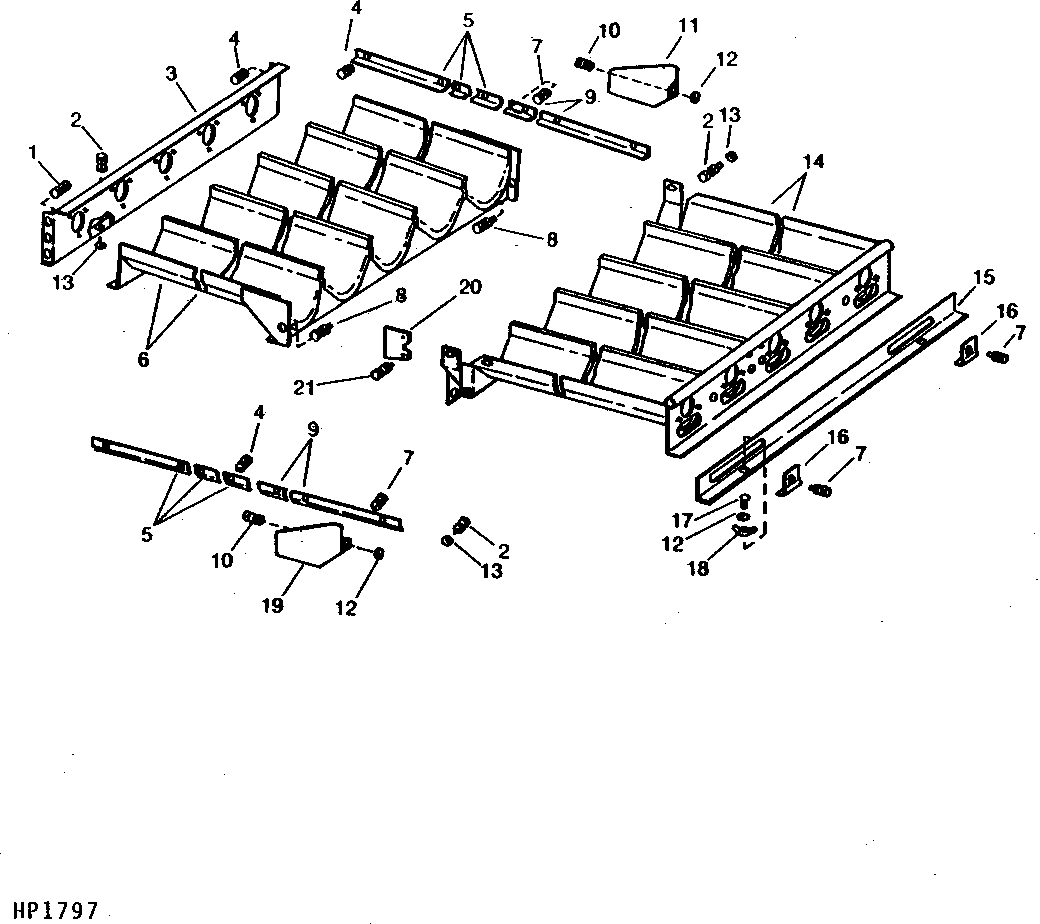

SHOE GRAIN SUPPLY AUGERS HOUSING (260901 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H76139	2	Screw	SELF-TAPPING
2	19H1900	17	Cap Screw	5/16" X 3/4"
2	14H785	17	Nut	5/16"
2	12H303	17	Lock Washer	5/16"
2	19H2127	17	Cap Screw	5/16" X 7/8"
3	AH79736	1	Plate	REAR
4	H65108	10	Screw	SELF-TAPPING
5	H76062	2	Seal	REAR
6	AH79738	1	Housing	REAR
7	19H1813	8	CAP SCREW	5/16" X 5/8"
7	12H303	8	Lock Washer	5/16"
7	14H785	8	Nut	5/16"
8	19H1732	2	Cap Screw	3/8" X 1-1/4"
8	14H812	2	NUT	3/8"
9	H76061	2	Seal	FRONT
10	N10217	1	Lock Nut	-
10	T23876	10	Screw	-
10	12H302	6	Lock Washer	1/4"
10	19H1919	6	Cap Screw	1/4" X 5/8"
10	14H786	6	Nut	1/4"
11	H81936	3	Partition	RH
11	H113921	3	Partition	RH
12	24H1287	8	Washer	9/32" X 5/8" X 0.065"
13	24H1136	32	Washer	11/32" X 11/16" X 0.065"
14	AH113232	1	Housing	FRONT
14	AH96394	1	Housing	(SUB AH113232)
14	AH113882	1	Housing	-
14	AH75042	1	Housing	(SUB AH113882)
15	H89729	1	Door	CLEANOUT
16	H94167	2	Clamp	-
17	03H1778	2	Bolt	1/4" X 5/8"
18	14H952	2	Wing Nut	1/4"
19	H81937	1	Partition	LH
19	H113922	1	Partition	LH
20	H115628	2	Seal	-
21	N10212	2	Self-Locking Screw	-
21	N10213	2	Lock Nut	-

SHOE GRAIN SUPPLY AUGERS HOUSING (260901 - )
