Открытый узел

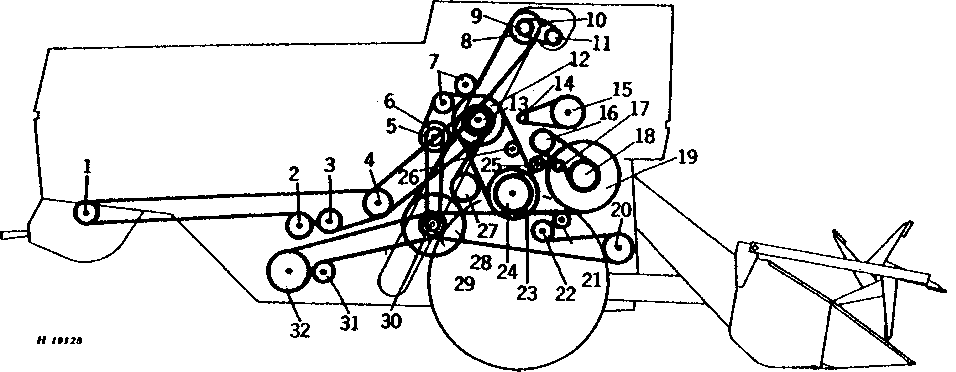

SHEAVES, SPROCKETS, AND TIGHTENERS ON RIGHT-HAND SIDE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH85419	1	Pulley	7-3/8" DIA., DRIVEN, STRAW CHOPPER
1	AH90273	1	Sheave Assembly	7-3/8" DIA., DRIVEN, STRAW CHOPPER
1	AH78637	1	Pulley	8" DIA., (MARKED H76186) (SUB AH85419) DRIVEN, STRAW CHOPPER
2	AH85276	1	Idler	229 MM (9") DIA., IDLER, STRAW CHOPPER DRIVE
3	AN15237	1	Idler	7-5/16" DIA., IDLER, STRAW CHOPPER DRIVE
4	H78743	1	Idler	9-3/16" DIA., DRIVE, STRAW CHOPPER REAR AND SHEAVE DRIVEN, STRAW CHOPPER FRONT
5	AH75986	1	Pulley	10-5/8" DIA., DRIVEN, CLEAN GRAIN ELEVATOR COUNTERHFT
6	AH75984	1	Pulley	9-5/8" DIA., DRIVE CLEAN GRAIN ELEVATOR
7	AH14097	1	Idler	7" DIA., TIGHTENER, CLEAN GRAIN ELEVATOR DRIVE
8	AH75986	1	Pulley	10-5/8" DIA., DRIVEN, CLEAN GRAIN ELEVATOR
9	H77059	1	Chain Sprocket	(SUB AH87146) DRIVE, LOADING AUGER
9	AH87146	1	Chain Sprocket	26 TEETH, DRIVE, LOADING AUGER
10	AH15303	1	CHAIN SPROCKET	11 TEETH, TIGHTENER, LOADING AUGER DRIVE
10	AH83654	1	IDLER	3-1/2" DIA., TIGHTENER, LOADING AUGER DRIVE
11	H77059	1	Chain Sprocket	(SUB AH87146) DRIVEN, LOADING AUGER
11	AH87146	1	Chain Sprocket	26 TEETH, DRIVEN, LOADING AUGER
12	AH75109	1	Pulley	16-1/4" DIA., (SUB AH80049) FIXED, DRIVE, CYLINDER INTERMEDIATE
12	AH80049	1	Pulley	16-1/4" DIA., (MARKED H81579) (SUB AH84886) FIXED, DRIVE, CYLINDER INTERMEDIATE
12	AH84886	1	Pulley	16-1/4" DIA., (MARKED H84416) FIXED, DRIVE, INTERMEDIATE CYLINDER, (SUB AH84884, JD7797 AND JD9450
12	AH84884	1	Pulley	INCLUDES R27899
12	AH78077	1	Pulley	16-1/4" DIA., (MARKED H75010) (SUB AH84846) SLIDING, DRIVE, CYLINDER INTERMEDIATE
12	AH84846	1	Pulley	16-1/4" DIA., (MARKED H75010) SLIDING, DRIVE, CYLINDER, INTERMEDIATE
..	JD7797	1	Lubrication Fitting	-
..	JD9450	1	Ball Bearing	-
..	R27899	1	Bushing	-

SHEAVES, SPROCKETS, AND TIGHTENERS ON RIGHT-HAND SIDE

Нет текстового описания
