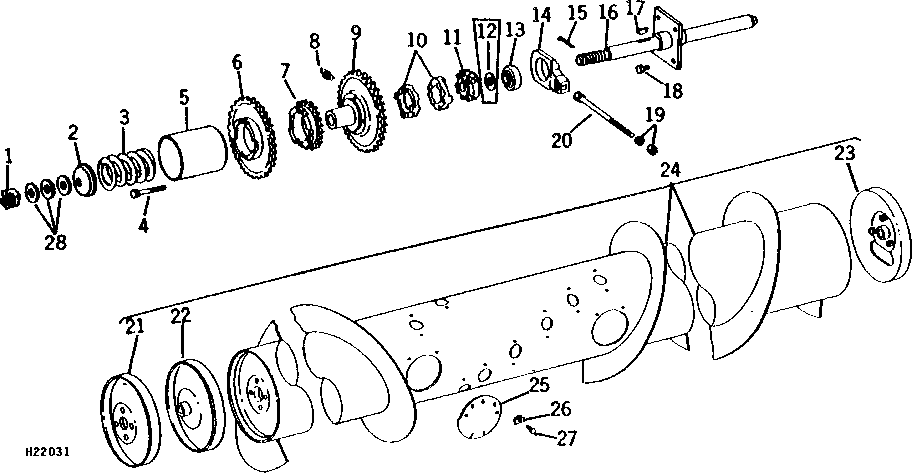

PLATFORM AUGER, DRIVE SHAFT, AND SPROCKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P42278	1	Nut	SLOTTED
2	H22216	1	Round Retainer	-
3	H84588	1	Spring	-
3	P47794	1	Spring	(SUB H84588, THIS APPLICATION)
4	19H1907	4	Cap Screw	5/16" X 2-3/4", (ATTACHES TWO SPROCKETS)
4	19H1901	4	Cap Screw	5/16" X 2", (ATTACHES ONE SPROCKET)
5	AP19309	1	Shield	-
6	H75905	1	Chain Sprocket	47 TEETH, (REEL AND BELT PICKUP)
7	H75904	1	Chain Sprocket	27 TEETH, (REEL)
8	JD7797	1	Lubrication Fitting	-
9	H83640	1	Chain Sprocket	50 TEETH
9	H75903	1	Chain Sprocket	(SUB H83640)
10	Z699H	2	SLIP CLUTCH	-
11	H11391	1	Hub	-
11	H84129	1	Locking Collar	-
12	24H1633	1	Washer	1-17/64" X 1-7/8" X 0.048"
13	JD9219	1	Ball Bearing	-
14	H75899	1	Housing	(SUB H63075)
14	H63075	1	Housing	-
15	11H215	1	COTTER PIN	1/4" X 1-1/2"
16	AH63649	1	Drive Shaft	-
17	26H82	1	Shaft Key	1/4" X 7/8"
18	19H1815	4	Cap Screw	1/2" X 1-1/4"
18	12H301	4	Lock Washer	1/2"
19	14H826	2	Nut	1/2"
20	H77309	1	Stud	ADJUSTING
20	08H4240	1	Cap Screw	1/2" X 7-1/2"
21	AH84326	1	Hub	LH, OUTER
22	AH83396	1	Hub	LH, INNER
23	H34589	1	Hub	RH, OUTER
23	AH87861	1	Hub	RH, OUTER
23	AH84989	1	Hub	(SUB AH87861) RH
24	AH87180	1	Auger	(SUB FOR AH76189, AH80768, AH84317 AND AH85019) WITH SHAFT AND FINGERS
24	AH87863	1	Auger	(SUB FOR AH75814, AH80736, AH84331, AH84992 AND AH87193) LESS SHAFT AND FINGERS
25	H36018	2	Cover	-
26	P41706	4	Nut	SPEED
27	19H1919	4	Cap Screw	1/4" X 5/8"
28	E20664	1	Washer	-
..	AH87193	1	Auger	(CONSISTS OF (13) AH87177, (26) H78354, (6) H84555, (13) H85241, (9) 12H303 AND (9) 19H1900)

PLATFORM AUGER, DRIVE SHAFT, AND SPROCKETS
