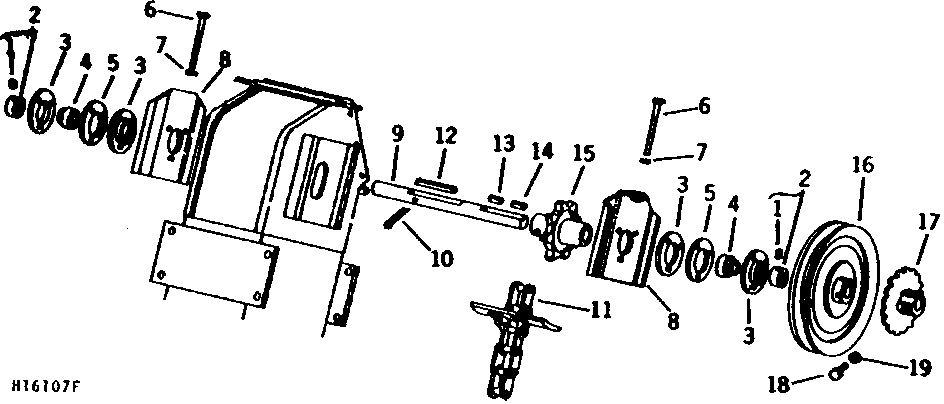

CLEAN GRAIN ELEVATOR CONVEYOR CHAIN, SHAFT, BEARINGS, AND DRIVE SPROCKET

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	2	Set Screw	1/4" X 1/4"
2	JD8554	2	Eccentric Locking Collar	-
3	P44439	4	PRESSED FLANGED HOUSING	-
4	JD8555	2	BALL BEARING	(SUB JD8665, THIS APPLICATION)
4	JD8665	2	Ball Bearing	-
5	H36155	1	Shim	-
6	19H3118	2	Cap Screw	3/8" X 4-1/2"
7	14H812	2	NUT	3/8"
8	AH78549	2	Bracket	-
8	AH80508	2	Bracket	-
9	H82948	1	Shaft	-
9	H77030	1	Shaft	(SUB H82948)
10	11H244	1	Cotter Pin	3/16" X 2-1/2"
11	H33807	30	Paddle	(SUB H86758) RUBBER
11	AH87765	30	Chain Link	-
11	AH21791	30	Link	(SUB AH87765)
11	14H786	1	Nut	1/4"
11	19H1948	2	Cap Screw	1/4" X 3/4"
11	AH86897	60	Bolt	(PADDLE) (REPLACES RIVETS)
11	P46115	60	Rivet	(SUB AH86897) (PADDLE)
11	H86760	1	Paddle	STEEL
11	H81582	1	Paddle	(SUB H86760) STEEL
11	AC14974	1	Pin Fastener	-
11	C10263	1	Track Chain W/O Shoes	-
11	AC11779	1	Pin Fastener	-
11	C10233	1	Chain Link	-
11	C10232	1	Link	-
11	AH87753	1	Link Chain	(CA-550 ROLLER CHAIN) (30 PADDLES)
11	AH76007	1	Elevator	(SUB AH87753) (CA-550 ROLLER CHAIN) (30 PADDLES)
11	H86758	30	Paddle	RUBBER
12	-	1	Part 31	5/16" X 5/16" X 2-1/4", (CUT FROM H64375 IN AH64587 KEY STOCK KIT)
13	-	1	Part 32	1/4" X 1/4" X 1-1/8", (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
14	-	1	Part 33	1/4" X 1/4" X 1-3/8", (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
15	H11339	1	Chain Sprocket	(SUB H11340)
15	H11340	1	Chain Sprocket	(SUB H108576, THIS APPLICATION)
15	H108576	1	Chain Sprocket	8 TEETH
16	AH75986	1	Pulley	270 MM (10-5/8") DIA.
17	H77059	1	Chain Sprocket	(SUB AH87146)
17	AH87146	1	Chain Sprocket	26 TEETH
18	22H853	4	Set Screw	3/8" X 7/8"
19	14H732	4	Nut	3/8"
