WHEEL HUB, MOTOR, AND HOUSING (POWER REAR WHEEL DRIVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR73212	1	CYLINDER BLOCK	-
2	R42817	1	SWASH PLATE	-
3	15H558	1	Pipe Plug	1/8"
4	19H1732	2	Cap Screw	3/8" X 1-1/4"
4	19H1726	4	Cap Screw	3/8" X 2-1/4"
5	R42885	2	COVER	UPPER RH AND LOWER LH
6	JD7759	1	Lubrication Fitting	STRAIGHT
7	JD7781	1	Lubrication Fitting	90°
8	R42881	1	Dowel Pin	-
9	R42886	2	COVER	UPPER LH AND LOWER RH
10	AR45414	1	HOUSING	(USED WITH MODEL NO. 1HD1 THROUGH 1HD3 AND 3HD1 THROUGH 3HD3) (MARKED R42332) (SUB AR86538, (2) R66650 AND (2) AR86539)
10	AR86538	1	HOUSING	(USED WITH MODEL NO. 1HD4 AND 3HD5) (MARKED R66649)
11	R36666	2	DOWEL PIN	-
12	R27490	1	O-Ring	(B)
13	R45569	1	Snap Ring	-
14	AR47137	1	SEAL	-
15	R42735	1	SHAFT	-
16	JD9029	1	Bearing Cone	-
17	JD7403	1	Bearing Cup	-
18	JD9028	2	BEARING CONE	-
19	JD8292	2	BEARING CUP	-
20	R41958	1	HUB	-
21	R42765	1	Shim	.08 MM (0.003")
21	R42766	1	Shim	.25 MM (0.010")
21	R48811	1	Shim	.13 MM (0.005")
22	R42729	8	Washer	-
23	19H1800	8	Cap Screw	3/8" X 1-1/2"
24	R54171	1	PISTON	(SUB R42927)
25	R34404	1	O-Ring	(SUB R42927)
26	R59860	1	SPRING	(SUB R42927)
27	R26552	1	Ball	(SUB R42927)
28	R54172	1	PLUNGER	(SUB R42927)
29	R33282	1	Snap Ring	(SUB R42927)
30	R35473	9	Back-Up Ring	(B)
31	R42763	9	O-RING	(B)
32	AR44376	1	HOUSING	-
33	R42969	12	SCREW	-
34	R42927	8	PISTON	PLANET BRAKE
34	R42927	9	PISTON	PLANET BRAKE
35	R26287	1	O-Ring	(A) (B)
36	R31631	1	DRAIN PLUG	-
37	R42877	1	PACKING	(B)
..	AR63929	1	Cylinder	SEAL REPAIR, PIVOT PIN, (CONSISTS OF ALL PARTS IDENTIFIED BY AN (A))
..	AR63930	1	Bracket	SEAL REPAIR, BRAKE PISTON, (CONSISTS OF ALL PARTS IDENTIFIED BY AN (B))

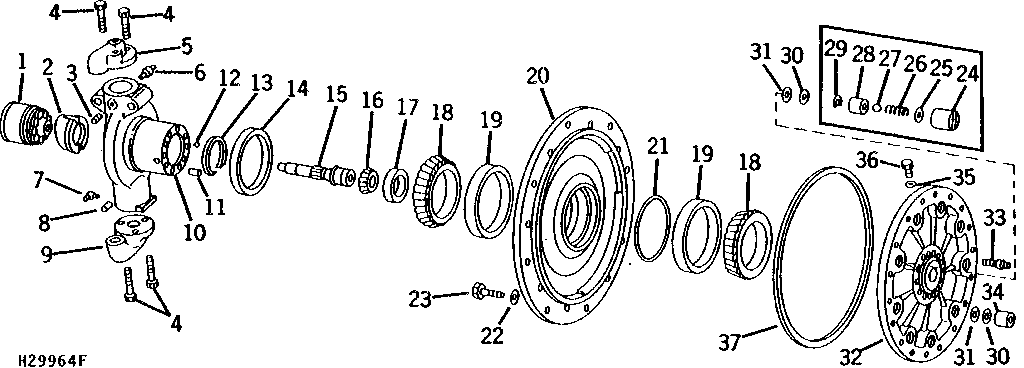

WHEEL HUB, MOTOR, AND HOUSING (POWER REAR WHEEL DRIVE)
