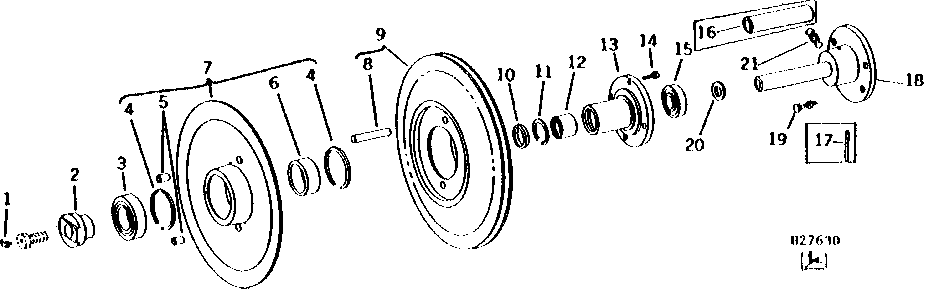

UPPER COUNTERSHAFT AND SHEAVES FOR PLATFORM AND FEEDER HOUSE VARIABLE BELT DRIVE - REGULAR AND SIDEHILL (PADDLE TYPE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7806	1	Lubrication Fitting	1/4", STRAIGHT
1	22H841	1	Set Screw	1/4" X 1/4"
2	H85652	1	Hub	-
2	H77268	1	Hub	(SUB H85652)
3	JD9406	1	Ball Bearing	-
4	H83285	1	Snap Ring	-
4	H83285	2	Snap Ring	-
5	H79405	2	Bushing	(SUB H82457)
5	H82457	2	Bushing	-
5	H82457	6	Bushing	-
6	H75691	1	Bushing	-
7	AH83397	1	Pulley	(MARKED H79402) (SUB AH83817)
7	AH84905	1	Pulley	432 MM (17") DIA., OUTER (MARKED H84447)
7	AH84613	1	Pulley	377 MM (14-55/64") DIA., OUTER (MARKED H84201)
7	AH83817	1	Pulley	(MARKED H83722) (SUB AH84613)
7	AH77257	1	Pulley	(MARKED H79402) (SUB AH83397)
8	H79404	2	Pin Fastener	-
8	H79404	4	Pin Fastener	-
8	H79404	6	Pin Fastener	-
9	AH77255	1	Pulley	(MARKED H79400) (SUB AH83815 SERIAL NO. 7501 UP; SUB AH83815 AND AH83817, PRIOR TO SERIAL NO. 7501)
9	AH83815	1	Pulley	437 MM (17-3/16") DIA., INNER (MARKED H83720)
9	AH84904	1	Pulley	432 MM (17") DIA., INNER (MARKED H84446)
10	H25051	1	Seal	-
11	E1343FN	1	Snap Ring	-
12	JD9878	1	NEEDLE BEARING	-
13	H79403	1	Hub	(SUB H83286)
13	H83286	1	Hub	(SUB H84449)
13	H84449	1	Hub	-
14	19H1732	4	Cap Screw	3/8" X 1-1/4"
15	JD9301	1	Ball Bearing	-
16	H76852	1	Pin	(SUB AH75823, THIS APPLICATION)
17	34H321	1	Spring Pin	1/4" X 2-1/2"
18	AH94706	1	Support	(MARKED H95784)
18	AH93158	1	Shaft	(SIDEHILL)
18	AH88921	1	Shaft	(SIDEHILL) (SUB AH93158)
18	AH84896	1	Support	(MARKED H76847) (SUB AH94706 AND H95783)
18	AH75823	1	Support	(MARKED H76847) (SUB AH84896 AND 24H1669)
19	09H1693	4	Bolt	3/8" X 1-3/4"
19	14H812	4	NUT	3/8"
19	H95783	1	Screw	-
19	12H301	4	Lock Washer	1/2"
19	14H1040	4	Nut	1/2"
20	24H1669	1	Washer	1-25/64" X 2-1/8" X 0.075"
21	JD7797	1	Lubrication Fitting	(SIDEHILL)
21	JD7813	1	Lubrication Fitting	(SIDEHILL)

UPPER COUNTERSHAFT AND SHEAVES FOR PLATFORM AND FEEDER HOUSE VARIABLE BELT DRIVE - REGULAR AND SIDEHILL (PADDLE TYPE)
