Открытый узел

UNLOADING AUGER COUNTERSHAFT

UNLOADING AUGER COUNTERSHAFT

UNLOADING AUGER COUNTERSHAFT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

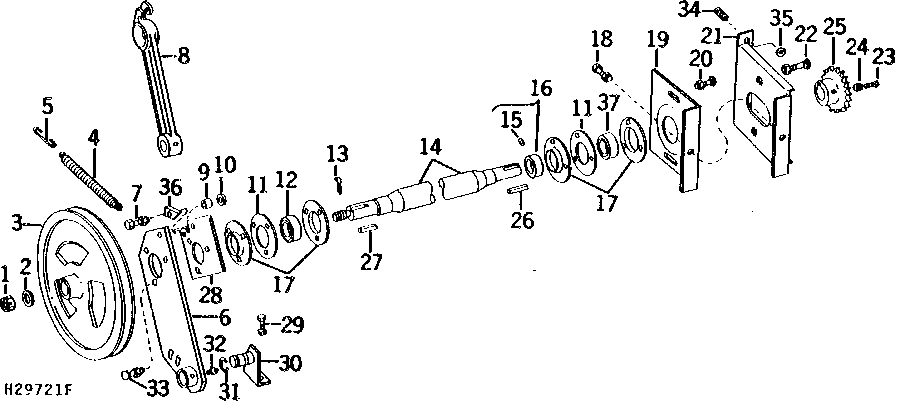

UNLOADING AUGER COUNTERSHAFT

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H35925	1	Lock Nut	-
1	P49075	1	Lock Nut	(SUB H35925, THIS APPLICATION)
1	14H874	1	Nut	5/8"
2	24H1373	1	Washer	21/32" X 1-9/16" X 0.180"
3	H76144	1	Pulley	(SUB H82179)
3	H82179	1	Pulley	284 MM (11-3/16") DIA.
3	H82179	1	Pulley	284 MM (11-3/16") DIA., (SIDEHILL)
3	H84423	1	Pulley	280 MM (11-11/64") DIA., (SIDEHILL)
4	H78746	1	Spring	(SUB H85783)
4	H85783	1	Spring	-
5	H88575	1	Link	(SUB FOR H81862)
6	AH87202	1	Arm	-
7	19H1732	1	Cap Screw	3/8" X 1-1/4"
7	19H1800	1	Cap Screw	3/8" X 1-1/2"
7	14H812	1	NUT	3/8"
8	H76143	1	Arm	-
9	28H2481	1	Spacer	0.423" X 0.675" X 1/2", 3/8" X 1/2"
10	24H1176	1	Washer	13/32" X 1-1/4" X 0.100"
11	H36155	1	Shim	-
11	H36155	2	Shim	-
12	JD8555	2	BALL BEARING	-
12	JD8555	1	BALL BEARING	(SUB JD8665, THIS APPLICATION)
12	JD8665	1	Ball Bearing	-
13	11H237	1	Cotter Pin	1/8" X 2"
14	AH75530	1	Countershaft	(SUB AH86634, 11H237 AND 14H874)
14	AH86634	1	Countershaft	-
15	22H897	1	Set Screw	1/4" X 1/4"
16	JD8554	1	Eccentric Locking Collar	-
17	H76654	2	Pressed Flanged Housing	-
17	H76654	4	Pressed Flanged Housing	(SUB C12865, THIS APPLICATION)
17	C12865	4	Pressed Flanged Housing	-
18	19H3034	1	Cap Screw	3/8" X 3"
18	14H812	3	NUT	3/8"
19	H76133	1	Bracket	-
19	H86484	1	Bracket	-
20	03H1540	3	Bolt	5/16" X 3/4"
20	14H785	3	Nut	5/16"
21	AH75524	1	Support	(SUB AH81264)
21	AH81264	1	Support	-
21	AH87632	1	Support	(SUB AH89687)
21	AH89687	1	Support	-
22	03H1709	2	Bolt	5/16" X 1"
22	14H785	2	Nut	5/16"
23	22H853	2	Set Screw	3/8" X 7/8"
24	14H732	2	Nut	3/8"
25	H80388	1	Drive Sprocket	(SUB AH84242)
25	AH84242	1	Chain Sprocket	15 TEETH
25	AH84244	1	Drive Sprocket	18 TEETH
26	-	1	Part 49	6 MM X 6 MM X 38 MM (1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
27	-	1	Part 50	6 MM X 6 MM X 35 MM (1/4" X 1/4" X 1-3/8"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
28	H86083	1	Spacer	-
29	19H1731	2	Cap Screw	3/8" X 1"
29	14H812	2	NUT	3/8"
30	AH75529	1	Support	(SUB AH85275)
30	AH85275	1	Support	-
30	AH87203	1	Support	-
31	P43026	1	Snap Ring	-
32	JD7788	1	Lubrication Fitting	-
33	03H1524	3	Bolt	5/16" X 1"
33	14H785	3	Nut	5/16"
34	03H1833	3	Bolt	3/8" X 1-3/4"
34	12H304	3	Lock Washer	3/8"
34	14H812	3	NUT	3/8"
35	24H1305	2	Washer	13/32" X 13/16" X 0.065"
36	H94197	1	Anchor	-
37	AH169077	1	Ball Bearing	(SUB FOR JD9273) (SUB AH214862)
37	AH214862	1	Ball Bearing	-
