Transmission Drive Mud Shield, Regular Belt and Hydrostatic Drive ( - 156500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H84640	1	Bracket	UPPER, FRONT
2	19H1944	1	Cap Screw	3/8" X 2-3/4", (4 USED, BELT DRIVE; 6 USED, HYDROSTATIC DRIVE)
2	14H812	4	NUT	3/8"
3	03H1500	5	Bolt	3/8" X 1"
3	14H812	5	NUT	3/8"
4	24H1305	1	Washer	13/32" X 13/16" X 0.065", (5 USED, BELT DRIVE; 7 USED, HYDROSTATIC DRIVE)
5	AH85251	1	Shield	(BELT DRIVE)
5	AH85252	1	Sheet	(HYDROSTATIC DRIVE)
6	H84643	1	Bracket	UPPER, REAR
7	H84644	1	Bracket	LOWER, REAR
8	19H2335	1	Cap Screw	1/4" X 2-3/4"
8	14H786	1	Nut	1/4"
9	H84645	1	Bracket	LOWER (HYDROSTATIC DRIVE)
10	24H1287	1	Washer	9/32" X 5/8" X 0.065", (BELT DRIVE)
11	19H1732	1	Cap Screw	3/8" X 1-1/4", (2 USED, BELT DRIVE; 1 USED, HYDROSTATIC DRIVE)
11	14H812	2	NUT	3/8", (HYDROSTATIC DRIVE)
12	H84641	2	Bracket	LOWER, FRONT (BELT DRIVE)
13	H84642	1	Bracket	LOWER, FRONT (HYDROSTATIC DRIVE)
14	19H1905	2	Cap Screw	5/16" X 1", (HYDROSTATIC DRIVE)
14	14H785	2	Nut	5/16"

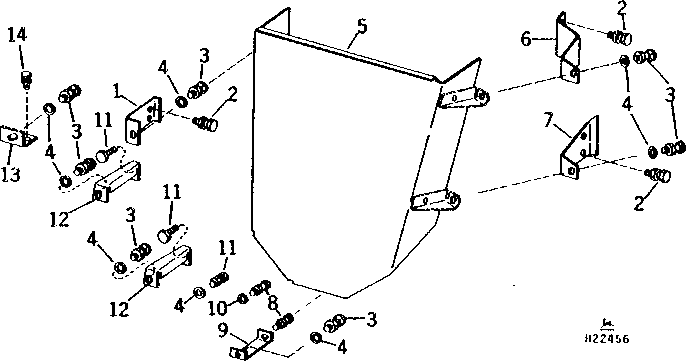

Transmission Drive Mud Shield, Regular Belt and Hydrostatic Drive ( - 156500)
