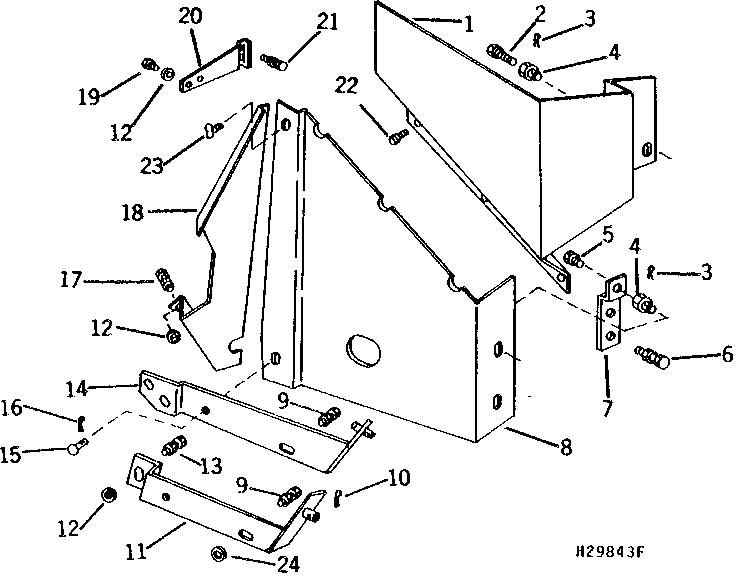

TRANSMISSION DRIVE MUD SHIELD (POSI-TORQ AND HYDROSTATIC GROUND DRIVE) (254051 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH100120	1	Shield	UPPER
1	AH93721	1	Shield	(SUB AH100120)
2	12H304	1	Lock Washer	3/8"
2	19H1733	1	CAP SCREW	3/8" X 2-1/2"
3	A3581R	2	Spring Locking Pin	-
4	H76989	2	Pin Fastener	-
5	19H1813	1	CAP SCREW	5/16" X 5/8"
5	12H303	1	Lock Washer	5/16"
6	19H1944	2	Cap Screw	3/8" X 2-3/4"
6	12H304	2	Lock Washer	3/8"
6	14H812	2	NUT	3/8"
7	H89981	1	Bracket	-
8	AH93720	1	Shield	(SUB AH93590)
8	AH100119	1	Shield	LOWER
8	AH93590	1	Shield	(SUB AH100119)
9	19H2335	2	Cap Screw	1/4" X 2-3/4"
9	12H302	2	Lock Washer	1/4"
9	14H786	2	Nut	1/4"
10	A3581R	1	Spring Locking Pin	(HYDROSTATIC DRIVE)
11	AH96150	1	Bracket	(HYDROSTATIC DRIVE) (SUB FOR H94684)
12	24H1305	4	Washer	13/32" X 13/16" X 0.065"
13	14H812	1	NUT	3/8"
13	12H304	1	Lock Washer	3/8"
13	03H1500	1	Bolt	3/8" X 1"
14	AH93547	1	Bracket	(POSI-TORQ)
15	H624DA	1	PIN FASTENER	DRILLED
16	11H236	1	Cotter Pin	1/8" X 1"
17	03H1500	1	Bolt	3/8" X 1", (POSI-TORQ)
17	19H1936	1	Cap Screw	3/8" X 3/4", (HYDROSTATIC)
17	12H304	1	Lock Washer	3/8"
17	14H812	1	NUT	3/8", (POSI-TORQ)
18	AH93548	1	Shield	(SUB AH100118)
18	AH100118	1	Shield	-
19	19H1936	2	Cap Screw	3/8" X 3/4"
19	12H304	2	Lock Washer	3/8"
20	H86156	1	Bracket	(SUB H94621)
20	H94621	1	Bracket	-
21	19H1944	2	Cap Screw	3/8" X 2-3/4", (RASP-BAR CYLINDER)
21	19H2128	2	CAP SCREW	3/8" X 3", (SPIKE-TOOTH CYLINDER)
21	12H304	2	Lock Washer	3/8"
21	14H812	2	NUT	3/8"
22	H77932	3	Screw	SELF-LOCKING
23	H89616	1	Wing Screw	-
24	24H1287	1	Washer	9/32" X 5/8" X 0.065"
