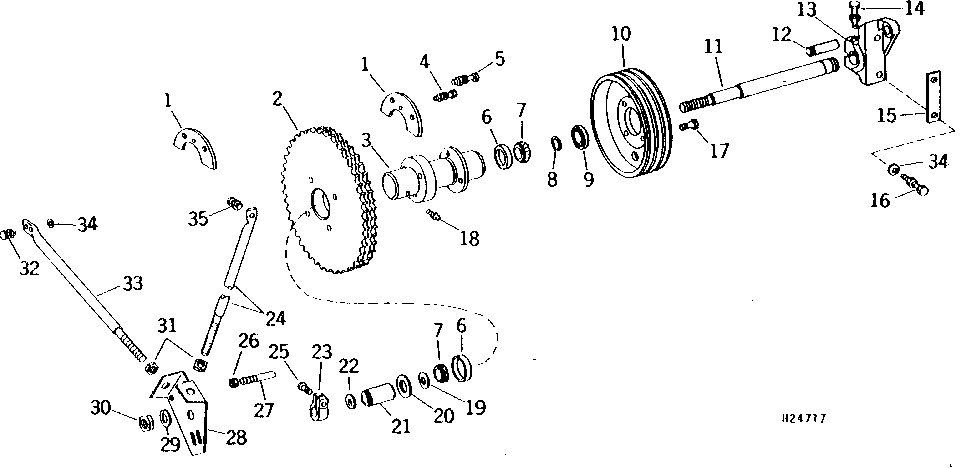

SLOW SPEED CYLINDER DRIVE INTERMEDIATE SHAFT (13551 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H85450	4	Plate	-
2	H85448	1	Chain Sprocket	77 TEETH
3	AH86433	1	Hub	-
4	19H1996	1	Cap Screw	1/4" X 2"
4	12H302	1	Lock Washer	1/4"
4	14H786	1	Nut	1/4"
5	19H1726	4	Cap Screw	3/8" X 2-1/4"
5	12H304	4	Lock Washer	3/8"
5	14H812	4	NUT	3/8"
6	JD8230	2	Bearing Cup	-
7	JD9020	2	Bearing Cone	-
8	M2353T	1	Snap Ring	(SUB FOR C3938E)
9	AH75115	1	Seal	-
10	H79645	1	Pulley	191 MM (7-1/2") DIA.
11	H75335	1	Shaft	-
12	H79683	1	Pin Fastener	-
13	AH77601	1	Pivot	(MARKED H75563)
14	19H2058	1	Cap Screw	7/16" X 3-3/4"
14	12H293	1	Lock Washer	7/16"
14	14H813	1	Nut	7/16"
15	H78107	1	Strap	-
16	19H1912	2	Cap Screw	3/8" X 3-1/2"
16	14H812	2	NUT	3/8"
17	19H1732	4	Cap Screw	3/8" X 1-1/4"
17	12H304	4	Lock Washer	3/8"
18	JD7797	1	Lubrication Fitting	-
19	24H1266	1	Washer	1-9/32" X 1-3/4" X 0.060"
20	AH86596	1	Seal	-
21	H85449	1	Bushing	-
22	H78360	1	Washer	-
23	H75348	1	Nut	-
24	AH75231	1	Brace	FRONT
25	19H1800	1	Cap Screw	3/8" X 1-1/2"
26	14H1040	2	Nut	1/2"
27	H75555	1	Stud	-
28	H80199	1	Brace	-
29	12H234	1	LOCK WASHER	1"
30	14H962	1	Nut	1"
31	14H794	4	Nut	3/4"
32	19H1731	3	Cap Screw	3/8" X 1"
32	14H812	3	NUT	3/8"
33	AH75232	1	Brace	REAR
34	24H1305	3	Washer	13/32" X 13/16" X 0.065"
35	19H1732	1	Cap Screw	3/8" X 1-1/4"
35	12H304	1	Lock Washer	3/8"
35	14H812	1	NUT	3/8"

SLOW SPEED CYLINDER DRIVE INTERMEDIATE SHAFT (13551 - )
