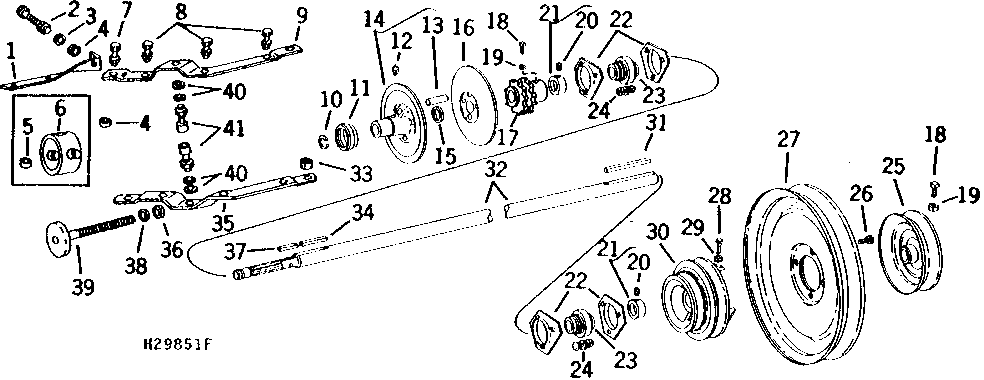

SECONDARY COUNTERSHAFT AND CLEANING FAN DRIVE ADJUSTMENT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H86132	1	Arm	-
1	H76283	1	Arm	-
2	14H785	1	Nut	5/16"
2	19H1907	1	Cap Screw	5/16" X 2-3/4"
3	24H1136	1	Washer	11/32" X 11/16" X 0.065"
4	28H1511	2	Washer	0.364" X 0.540" X 1/4"
5	28H1517	1	Washer	0.493" X 0.675" X 1/4"
6	AH75582	1	Ring	-
7	19H1849	1	Cap Screw	5/16" X 1-1/4"
7	14H785	1	Nut	5/16"
8	19H1800	2	Cap Screw	3/8" X 1-1/2"
8	14H812	2	NUT	3/8"
8	19H1792	3	Cap Screw	1/2" X 1"
8	14H1040	2	Nut	1/2"
9	H97503	1	Arm	UPPER HALF
9	H86146	1	Yoke	(SUB H97503)
9	AH75580	1	Yoke	(SUB H86146, H86147, (2) 14H1040, (2) 19H2926 AND (4) 24H1882)
10	P43363	1	Snap Ring	-
11	AH75576	1	Thrust Bearing	(SUB AH87207)
11	AH87207	1	Thrust Bearing	-
12	JD7798	1	Lubrication Fitting	NLA
13	34H372	1	Spring Pin	1/2" X 2-1/4", (SUB N137598, THIS APPLICATION)
13	N137598	1	Spring Pin	(USE WITH AH173724)
13	H100796	1	Spring Pin	(USE WITH AH173726)
14	AH173726	1	Half Sheave	(INCLUDES JD7798, A4730R AND H100795)
14	AH173724	1	Pulley	CLEANING FAN DRIVE (OUTER) (SUB FOR AH87208 OR AH100016)
15	A4730R	1	O-Ring	-
16	H80390	1	Half Sheave	CLEANING FAND DRIVE (INNER)
17	AH87249	1	Chain Sprocket	15 TEETH, DOUBLE (SHOE AND STRAW WALKER DRIVE)
17	AH84243	1	Chain Sprocket	15 TEETH, (SHOE AND STRAW WALKER DRIVE)
17	H80389	1	Chain Sprocket	(SHOE AND STRAW WALKER DRIVE) (SUB AH84243)
18	22H836	2	Set Screw	3/8" X 1"
19	14H732	1	Nut	3/8"
20	22H775	1	Set Screw	5/16" X 1/4"
21	JD8551	2	Eccentric Locking Collar	-
22	E10018	4	Pressed Flanged Housing	-
23	JD9401	2	Ball Bearing	-
23	JD9246	2	Ball Bearing	-
24	19H1731	6	Cap Screw	3/8" X 1"
24	14H812	6	NUT	3/8"
25	AH75985	1	Pulley	245 MM (9-5/8") DIA., (CLEAN GRAIN AND DIP AND POUR ELEVATOR DRIVES)
26	19H2127	4	Cap Screw	5/16" X 7/8"
27	AH75978	1	Pulley	(SUB AH92104)
27	AH92104	1	Pulley	508 MM (20") DIA.
28	22H853	2	Set Screw	3/8" X 7/8"
29	14H732	1	Nut	3/8"
30	H77020	1	Pulley	162 MM AND 211 MM (6-3/8" AND 8-19/64") DIAS., (TAILINGS AUGER AND SHOE GRAIN SUPPLY AUGERS DRIVE)
31	-	1	Part 48	6 MM X 6 MM X 127 MM (1/4" X 1/4" X 5"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
32	H76277	1	Jackshaft	-
33	H76282	1	Pin Fastener	-
34	-	1	Part 51	6 MM X 6 MM X 381 MM (1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
35	AH75581	1	Yoke	(SUB H86147, H86146, (2) 14H1040, (2) 19H2926 AND (4) 24H1882)
35	H86147	1	Yoke	LOWER HALF
36	14H1008	2	Nut	3/8"
37	N13224	1	Shaft Key	-
38	24H1682	1	Washer	13/32" X 7/8" X 0.120"
39	AH75577	1	Bolt	-
40	24H1882	4	Washer	17/32" X 3/4" X 0.060"
41	19H2926	2	Screw	1/2" X 1"
