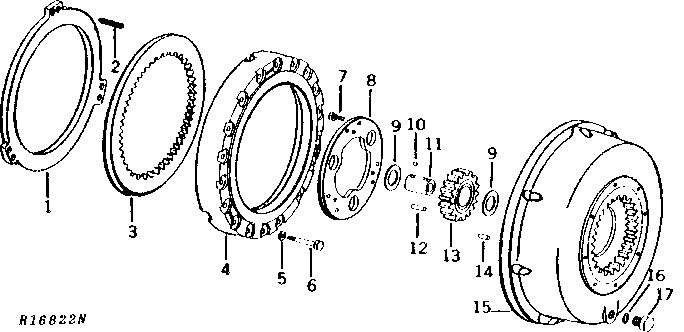

SECOND PLANET PINION, PLANETARY HOUSING, AND BRAKE PLATES (POWER REAR WHEEL DRIVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R47142	1	PLATE	-
2	R42762	6	SPRING	-
3	R42516	1	GEAR	SECOND PLANET RING
4	R47141	1	PLATE	PLANET BRAKE BACKING
5	R42729	18	Washer	-
6	19H268	18	CAP SCREW	3/8" X 2-1/2"
7	19H2284	6	Cap Screw	3/8" X 7/8"
8	R42333	1	RETAINER	(SUB R67905)
8	R67905	1	RETAINER	-
9	R42931	6	Thrust Washer	-
10	H871R	6	Ball	-
11	R42932	3	PIN	SECOND PLANET PINION
12	R42883	66	NEEDLE ROLLER	-
13	R42518	3	PINION	-
14	R28671	3	Dowel Pin	-
15	AR44377	1	Housing	(25.1 TO 1) (TIRES)
15	AR48527	1	HOUSING	(40.6 TO 1) (TRACKS)
16	R26375	1	O-Ring	(A) (B)
17	R39112	1	Fitting	-
..	AR63929	1	Cylinder	SEAL REPAIR, PIVOT PIN, (CONSISTS OF ALL PARTS IDENTIFIED BY AN (A))
..	AR63930	1	Bracket	SEAL REPAIR, BRAKE PISTON, (CONSISTS OF ALL PARTS IDENTIFIED BY AN (B))

SECOND PLANET PINION, PLANETARY HOUSING, AND BRAKE PLATES (POWER REAR WHEEL DRIVE)
