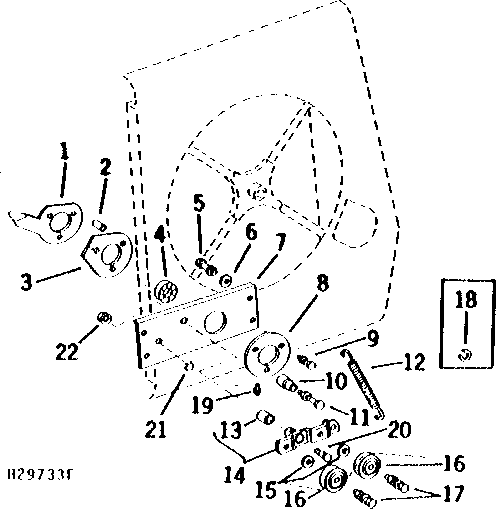

ROTARY SCREEN DRIVE BELT TIGHTENERS AND DISPLACER (206201 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89678	1	Handle	(A) (B)
2	H78537	3	Bushing	(A) (B)
3	H88458	1	Plate	(A) (B)
4	AH92661	1	Seal	(A) (B)
5	19H1936	4	Cap Screw	3/8" X 3/4"
5	12H304	4	Lock Washer	3/8"
6	24H1312	4	Washer	13/32" X 1-3/8" X 0.105"
7	-	1	Part 8	(A) (SUB AH91273)
7	-	1	Part 9	(B) (SUB AH93325)
8	H88457	1	Washer	(A) (B)
9	19H1906	2	Cap Screw	5/16" X 1-1/2", (A) (B)
9	M40699	1	Nut	(A) (B)
10	H91351	1	Bushing	(A) (B) (SUB H100197 AND 19H1913)
10	H100197	1	Pin	(B)
11	19H2657	1	CAP SCREW	5/16" X 3-1/8", (A) (B)
11	M40699	1	Nut	(A) (B)
12	H86280	1	Spring	-
13	H91788	1	Bushing	(USE WITH AH95282)
14	AH87866	1	Arm	(SUB AH93321)
14	AH93321	1	Arm	-
14	AH95282	1	Arm	-
15	24H1682	2	Washer	13/32" X 7/8" X 0.120"
16	AH87929	2	Pulley	78 MM (3-1/16") DIA.
17	19H1732	2	Cap Screw	3/8" X 1-1/4"
17	12H304	2	Lock Washer	3/8"
17	14H812	2	NUT	3/8"
18	H86839	1	Snap Ring	-
19	JD7842	1	Lubrication Fitting	-
20	H94285	1	Bolt	(B) (SUB H94562)
20	H94562	1	Bolt	(B)
21	R28473	1	Plug	(B)
22	N10215	1	Lock Nut	(B)
..	AH91273	1	Device	(SUB AH93325), (INCLUDES PARTS MARKED (A))
..	AH93325	1	Device	KIT, DISPLACER ASSEMBLY, (INCLUDES PARTS MARKED (B))
