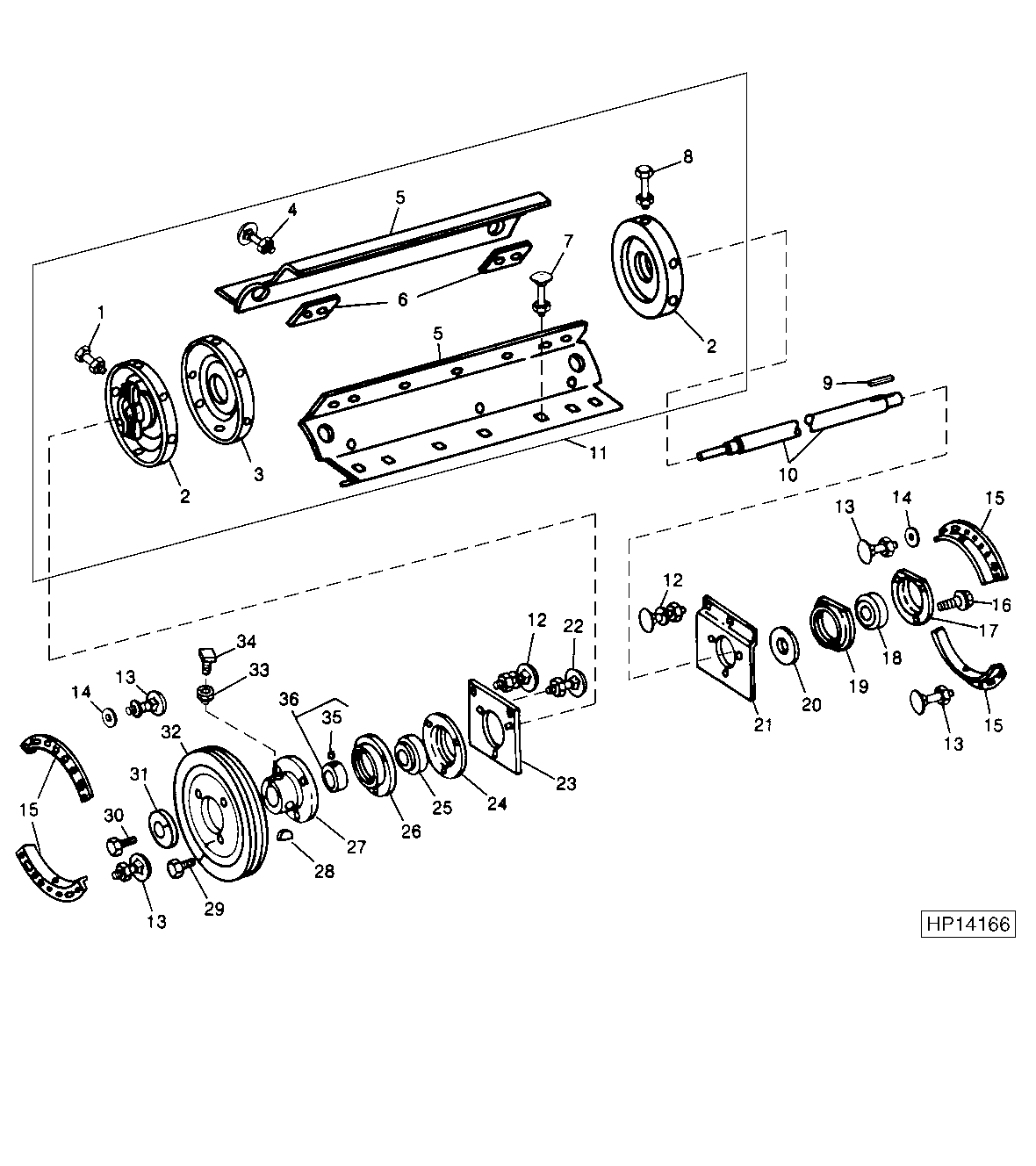

ROTARY DEFLECTOR (SIX-WING) (CONVERSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	2	Lock Washer	1/2"
1	03H1439	2	Bolt	1/2" X 1-3/4"
1	14H1040	2	Nut	1/2"
2	AH113355	2	Cylinder Head	-
3	AH113362	1	Cylinder Head	-
4	03H1480	1	Bolt	3/8" X 1-1/4"
4	12H304	1	Lock Washer	3/8"
4	14H812	1	NUT	3/8"
5	H117550	6	Beater	-
6	H110734	1	Strap	-
6	H110736	1	Strap	-
6	24H1781	1	Washer	13/32" X 7/8" X 1/4", (USE WITH H110734)
6	24H1307	1	Washer	13/32" X 1" X 1/16", (USE WITH H110736)
7	12H304	36	Lock Washer	3/8"
7	14H812	36	NUT	3/8"
7	03H1519	36	Bolt	3/8" X 1"
8	19H1936	18	Cap Screw	3/8" X 3/4"
8	12H304	18	Lock Washer	3/8"
9	-	1	Part 19	10 MM X 10 MM X 50 MM (3/8" X 3/8" X 2"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
10	H110004	1	Shaft	-
11	AH146173	1	Beater	LESS SHAFT (SUB FOR AH114806)
12	03H1522	1	Bolt	1/2" X 1-1/4"
12	12H301	1	Lock Washer	1/2"
12	14H1040	1	Nut	1/2"
13	03H1540	16	Bolt	5/16" X 3/4"
13	14H785	16	Nut	5/16"
14	24H1136	19	Washer	11/32" X 11/16" X 0.065"
15	H98955	4	Seal	-
16	H76139	3	Screw	-
17	AH93700	1	Pressed Flanged Housing	-
17	JD7845	1	Elbow Fitting	-
18	JD9335	1	Ball Bearing	-
19	H84356	1	Pressed Flanged Housing	-
20	H84357	1	Ring	-
21	H79666	1	Bracket	LH
22	03H1500	3	Bolt	3/8" X 1"
22	14H812	3	NUT	3/8"
23	H79666	1	Bracket	RH
24	N34367	1	Pressed Flanged Housing	-
25	JD10007	1	Ball Bearing	(SUB FOR JD9367)
26	H93864	1	Pressed Flanged Housing	-
26	JD7845	1	Elbow Fitting	-
27	H82323	1	Hub	-
28	26H42	1	Shaft Key	3/8" X 2-1/8"
29	19H1936	3	Cap Screw	3/8" X 3/4"
30	19H2036	2	Cap Screw	1/4" X 7/8"
31	H97481	1	Pulley	(TACHOMETER)
32	AH87155	1	Pulley	229 MM (9") DIA.
33	14H732	2	Nut	3/8"
34	22H853	1	Set Screw	3/8" X 7/8"
34	22H836	1	Set Screw	3/8" X 1"
35	22H775	1	Set Screw	5/16" X 1/4"
36	JD8544	1	Bearing	-

ROTARY DEFLECTOR (SIX-WING) (CONVERSION)
