PROPULSION-DRIVE COUNTERSHAFT SHEAVE (POSI-TORQ DRIVE) (156501 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7760	1	Lubrication Fitting	65°
1	H85995	1	Plug	(SUB JD7760)
1	JD7797	1	Lubrication Fitting	STRAIGHT USE WITH H89171)
2	H85992	1	Cover	(SUB H89171 AND JD7797)
2	H89171	1	CAP	-
3	14H902	1	Nut	3/4"
4	T25922	1	WASHER	-
5	19H2552	1	CAP SCREW	3/8" X 1-1/8"
5	12H304	1	Lock Washer	3/8"
6	H84668	1	PULLEY	422 MM (16-5/8") DIA., HALF
7	AH87141	1	Seal	-
8	P48691	1	Snap Ring	-
9	H86011	1	SPACER	-
10	AH87132	1	SLEEVE	SLEEVE
11	JD8930	1	Bearing Cone	-
12	JD8252	1	Bearing Cup	-
13	H85991	1	HUB	-
14	JD7424	1	Bearing Cup	-
15	JD8968	1	Bearing Cone	-
16	H86012	1	ROUND RETAINER	-
17	H85987	1	SNAP RING	-
18	H84667	1	HALF SHEAVE	422 MM (16-5/8") DIA.
19	JD7759	1	Lubrication Fitting	STRAIGHT
20	12H304	6	Lock Washer	3/8"
21	19H2023	6	CAP SCREW	3/8" X 3-1/4"
22	JD9137	1	BEARING CUP	-
23	R108546	1	Bearing Cone	(SUB FOR JD9079)
24	AH87140	1	SEAL	-
25	H85988	1	BACK-UP RING	(A)
26	U11017	1	O-Ring	(A)
27	H85993	1	HUB	-
28	34H323	1	Spring Pin	1/4" X 3"
29	R26863	1	O-Ring	(A)
30	H30463	1	BACK-UP RING	(A)
31	AH89663	1	Seal	(A)
32	M3827T	1	SNAP RING	(A)
33	H85989	1	ROD	-
34	AH87130	1	HYDRAULIC CYLINDER	-
35	11H218	1	Cotter Pin	3/16" X 1-1/2"
36	H84669	1	ARM	-
37	19H2133	1	Cap Screw	5/8" X 4-1/2"
37	14H1039	1	Nut	5/8"
38	12H294	1	Lock Washer	5/8"
..	AH89664	1	Seal Kit	SEAL REPAIR, (INCLUDES PARTS MARKED (A))

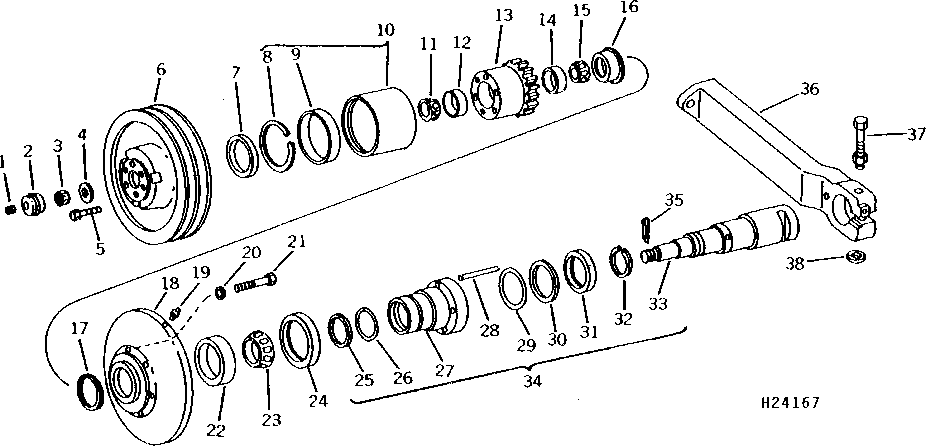

PROPULSION-DRIVE COUNTERSHAFT SHEAVE (POSI-TORQ DRIVE) (156501 - )
