OPERATOR'S PLATFORM SHIELDS, FLOORBOARD, FLOOR MATS AND HAND RAILS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH83980	1	Handrail	FRONT (NOT USED WITH OPERATOR'S CAB)
1	AH77103	1	Handrail	(NOT USED WITH OPERATOR'S CAB) (SUB AH83980)
2	H77931	2	SCREW	SELF-TAPPING
3	34H351	1	Spring Pin	3/8" X 1-1/2"
4	H78995	1	Pivot	RH (NOT USED WITH OPERATOR'S CAB)
4	H83921	1	Pivot	RH (NOT USED WITH OPERATOR'S CAB)
5	14H812	1	NUT	3/8"
6	AH77022	1	Shield	FRONT
6	AH87714	1	Shield	FRONT
8	H80970	1	Reinforcement	(USED WITH OPERATOR'S CAB)
9	H78801	2	Door	(SUB H82936)
9	H82936	2	Door	-
10	AP23835	3	Latch	-
11	H62547	3	Rivet	(SUB 21H1318, THIS APPLICATION)
11	21H1318	3	Screw	0.216" X 1/2"
12	H78811	1	Door	(SUB H82937)
12	H82937	1	Door	-
13	H80911	1	Mat	(BELT DRIVE) (NOT USED WITH OPERATOR'S CAB)
13	AH86447	1	Mat	(HYDROSTATIC DRIVE) (USED WITH OPERATOR'S CAB)
13	H85964	1	Board	(LESS FLOOR MATS) (SUB H95213)
13	AH79250	1	Mat	(HYDROSTATIC DRIVE) (USED WITH OPERATOR'S CAB) (SUB AH86447)
13	AH86448	1	Mat	(BELT DRIVE) (USED WITH OPERATOR'S CAB)
13	H80912	1	Mat	(HYDROSTATIC DRIVE) (NOT USED WITH OPERATOR'S CAB)
13	AH79249	1	Mat	(BELT DRIVE) (USED WITH OPERATOR'S CAB) (SUB AH86448)
13	H78825	1	Board	(LESS FLOOR MATS)
13	AH77029	1	Board	(LESS FLOOR MATS) (SUB H78825)
13	H95213	1	Board	(LESS FLOOR MATS)
14	21H1069	2	SCREW	3/8" X 1"
14	14H812	2	NUT	3/8"
15	14H785	14	Nut	5/16"
15	21H1075	14	Screw	5/16" X 1"
16	24H1287	1	Washer	9/32" X 5/8" X 0.065"
17	21H1310	1	SCREW	1/4" X 1/2"
17	14H786	1	Nut	1/4"
18	21H1304	1	Screw	5/16" X 3/4"
18	14H785	1	Nut	5/16"
19	H78807	1	Shield	LH (SUB H23126 AND H103618)
19	H103618	1	Shield	LH, REAR
19	H23126	2	Plug	-
20	21H1321	2	Screw	3/8" X 3/4"
20	14H812	2	NUT	3/8"
7A	H65108	1	Screw	SELF-TAPPING
7B	19H1900	1	Cap Screw	5/16" X 3/4"
7B	14H785	1	Nut	5/16"

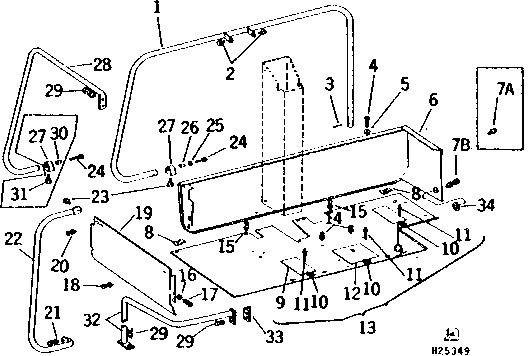

OPERATOR'S PLATFORM SHIELDS, FLOORBOARD, FLOOR MATS AND HAND RAILS
