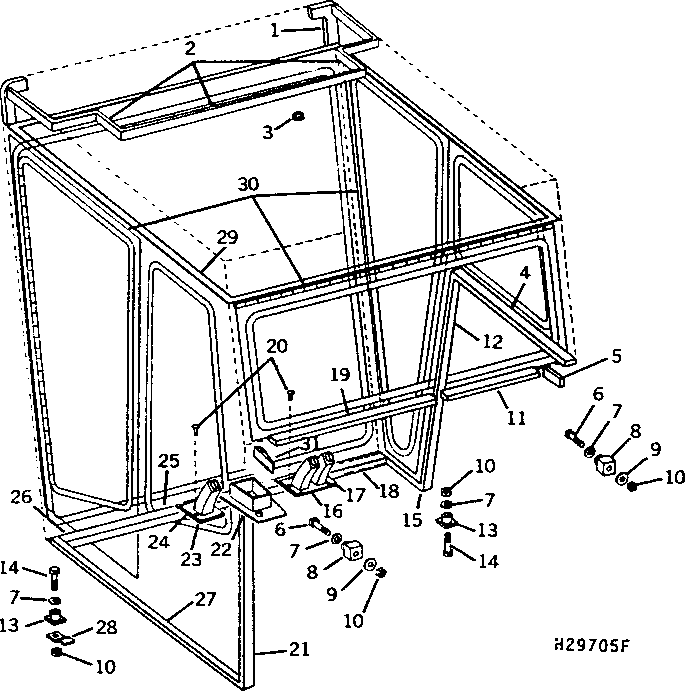

OPERATOR'S CAB MOUNTING BRACKETS, BUSHINGS AND SEALS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	319 MM (12-1/2"), (CUT FROM H92017)
2	-	1	Part 2	1524 MM (60"), (CUT FROM H93819)
3	H23746	1	PLUG	(USED WITH AIR CONDITIONING)
4	-	1	Part 4	837 MM (32-15/64"), (CUT FROM H92017)
5	-	1	Part 5	102 MM (4"), (CUT FROM H92017)
6	19H2128	2	CAP SCREW	3/8" X 3"
7	24H1312	5	Washer	13/32" X 1-3/8" X 0.105"
8	AH79104	2	Isolator	-
9	24H1315	2	Washer	13/32" X 2-1/8" X 0.134"
10	14H812	1	NUT	3/8"
11	-	1	Part 11	615 MM (24-13/64"), (CUT FROM H92017)
12	-	1	Part 12	831 MM (32-47/64"), (CUT FROM H92017)
13	AH79105	3	Isolator	-
14	19H1726	3	Cap Screw	3/8" X 2-1/4"
15	-	1	Part 15	254 MM (10"), (CUT FROM H92017)
16	H93579	1	Boot	(SUB FOR H80764)
17	H82771	2	Plug	(SUB FOR H80761)
18	-	1	Part 18	158 MM (6-15/64"), (CUT FROM H92017)
19	-	1	Part 19	346 MM (13-5/8"), (CUT FROM H92017)
20	H82771	4	Plug	-
21	AH79758	1	Weatherstrip	-
22	H94149	1	Boot	(SUB FOR H80766)
23	H88958	1	Boot	(SUB FOR H80765)
24	H82771	1	Plug	(SUB FOR H80763)
25	-	1	Part 25	782 MM (30-51/64"), (CUT FROM H92017)
26	-	1	Part 26	64 MM (2-1/2"), (CUT FROM H92017)
27	-	1	Part 27	1219 MM (48"), (CUT FROM H92017)
28	H80970	2	Reinforcement	-
29	-	1	Part 29	3 MM X 6 MM (1/8" X 1/4"), (CUT FROM H81847)
29	-	1	Part 30	6 MM X 13 MM (1/4" X 1/2"), (CUT FROM H93819)
30	-	1	Part 31	(CUT FROM AH80335)
31	AH96110	1	Seal	-

OPERATOR'S CAB MOUNTING BRACKETS, BUSHINGS AND SEALS
