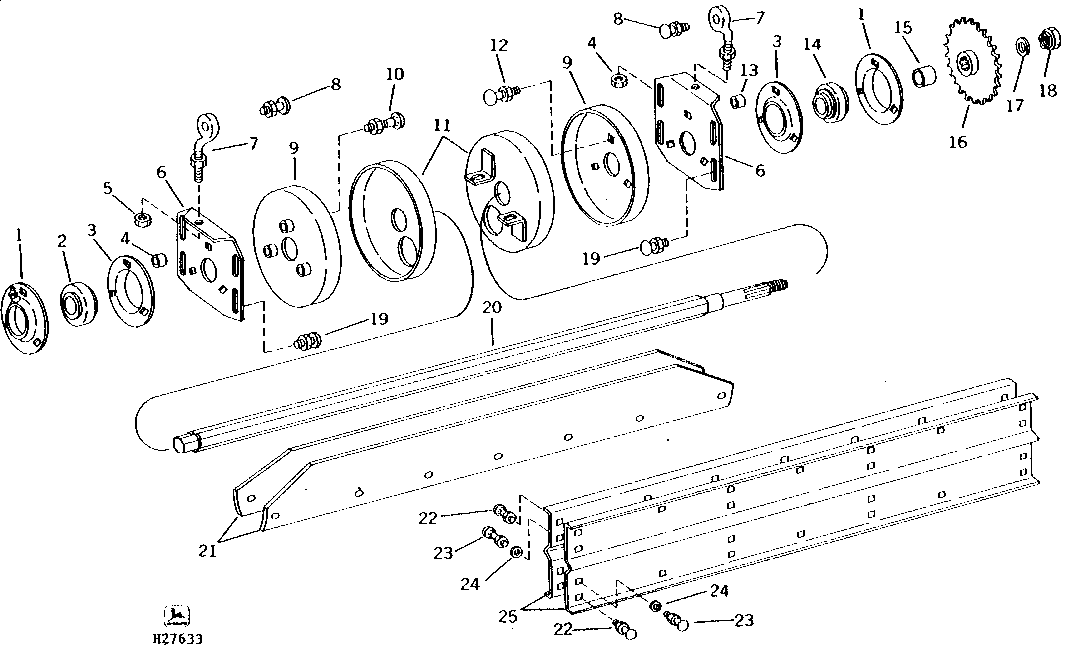

LOWER SHAFT, PADDLES, AND SPROCKET FOR PADDLE FEEDER HOUSE - SIDEHILL (PADDLE TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN50684	1	Pressed Flanged Housing	-
2	JD9332	1	Ball Bearing	(SUB JD9407, THIS APPLICATION)
2	JD9407	1	Ball Bearing	-
3	N34367	1	Pressed Flanged Housing	-
4	28H1884	3	Spacer	0.493" X 0.675" X 1/2", 3/8" X 1/2"
5	14H826	2	Nut	1/2"
6	H88072	2	HOLDER	-
7	H75371	2	Eyebolt	-
7	14H826	2	Nut	1/2"
8	03H1731	2	Bolt	1/2" X 1-1/2"
8	E54809	1	Lock Nut	-
9	AH89430	2	DEFLECTOR	-
10	03H2020	3	Bolt	3/8" X 2"
10	N10215	1	Lock Nut	(SUB 12H304 AND 14H812)
10	12H304	3	Lock Washer	3/8"
10	14H812	3	NUT	3/8"
11	AH89427	1	Deflector	ANTI-WRAP
12	14H812	3	NUT	3/8"
12	12H304	3	Lock Washer	3/8"
12	03H1653	3	Bolt	3/8" X 2-1/4"
12	N10215	3	Lock Nut	(SUB 12H304 AND 14H812)
13	28H1697	3	Spacer	0.493" X 0.675" X 3/4", 3/8" X 3/4"
14	JD9367	1	Ball Bearing	(SUB JD10007, THIS APPLICATION)
14	JD10007	1	Ball Bearing	-
15	H88079	1	Bushing	-
16	AH89440	1	Chain Sprocket	26 TEETH
17	24H1399	1	Washer	25/32" X 1-5/8" X 0.180"
18	T25879	1	Nut	-
19	N10213	8	Lock Nut	-
19	03H1540	8	Bolt	5/16" X 3/4"
20	H88083	1	Shaft	-
21	H88166	4	Paddle	(SUB H111308)
21	H111308	2	Paddle	-
22	03H1558	14	Bolt	3/8" X 1-1/2"
22	BP12233	14	Lock Nut	-
23	03H1833	8	Bolt	3/8" X 1-3/4"
23	BP12233	8	Lock Nut	-
24	24H1311	8	Washer	13/32" X 1-1/4" X 0.220"
25	H88169	2	Clamp	(SUB AH94731)
25	AH94731	2	Clamp	-
