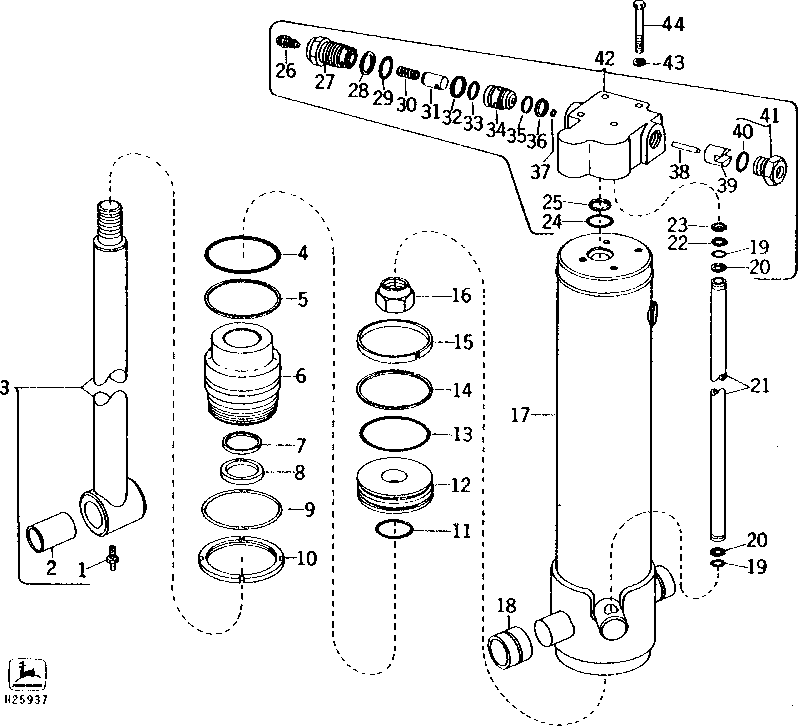

LEVELING CYLINDER - SIDEHILL ( - 255662)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7842	1	Lubrication Fitting	-
2	H89008	1	BUSHING	-
3	AH103499	1	ROD	-
3	AH90500	1	Rod	(SUB AH103499)
4	-	1	Part 5	(A)
5	N133563	1	BACK-UP RING	(A)
6	H89011	1	GUIDE	-
7	-	1	Part 8	(A)
8	-	1	Part 9	(A)
9	N133565	1	SNAP RING	(A)
10	N133564	1	NUT	-
11	-	1	Part 12	(A)
12	H89009	1	PISTON	-
13	R26621	1	O-RING	(A)
14	N131824	1	PISTON RING	(A)
15	N131814	1	WEAR RING	(A)
16	T24715	1	Nut	-
17	AH90501	1	Hydraulic Cylinder Barrel	(SUB AH93307)
17	AH93307	1	HYDRAULIC CYLINDER	(SUB AH96086 AND H97288)
18	H89030	2	Sleeve	(SUB H93975)
18	H93975	2	BUSHING	(SUB (2) AH99999 AND (2) H100904)
18	H100904	2	BUSHING	-
19	R459R	2	O-Ring	(A) (E)
20	W23690	2	Back-Up Ring	(A)
21	H89010	1	TUBE	-
22	U40748	1	Shim	-
23	U40749	1	Shim	-
24	H35238	1	O-Ring	(A)
25	H36106	1	WASHER	(A)
26	H81317	1	Bleed Valve	-
27	H86879	1	FILTER ELEMENT	-
28	T42802	1	BACK-UP RING	(E)
29	U15974	1	O-Ring	(E)
30	H86881	1	SPRING	-
31	H86880	1	CASE	-
32	U40728	1	BACK-UP RING	(E)
33	R27928	1	O-Ring	(E)
34	H89005	1	VALVE SPOOL	-
35	P42061	1	O-Ring	(E)
36	-	1	Part 40	(E)
37	A4365R	1	O-Ring	(E)
38	H89007	1	PIN FASTENER	-
39	H89006	1	ORIFICE	-
40	T74425	1	O-Ring	(E) (SUB FOR T42798)
41	AH90499	1	PLUG	-
42	AH90496	1	VALVE STACK	(SUB AH96089)
43	12H304	4	Lock Washer	3/8"
44	19H1733	4	CAP SCREW	3/8" X 2-1/2"
..	AH89071	2	HYDRAULIC CYLINDER	(SUB AH94667)
..	AH94667	2	Hydraulic Cylinder	(SUB (2) AH99999 AND AH100000)
..	AH100000	2	Cylinder	(USE WITH AH99999) (SUB AH100288, AH101266, AH101267 AND H101223)
..	AH100288	2	Cylinder	(SUB AH103200, AH101266, AH101267 AND H101223)
..	AH103200	2	Cylinder	-
..	AH90498	1	KIT	CYLINDER BARREL SEAL REPAIR, (INCLUDES PARTS MARKED (A))
..	AH90497	1	KIT	VALVE BLOCK SEAL REPAIR, (INCLUDES PARTS MARKED (E))
..	AH96090	1	KIT	VALVE BLOCK SEAL REPAIR, (INCLUDES PARTS MARKED (E))

LEVELING CYLINDER - SIDEHILL ( - 255662)
