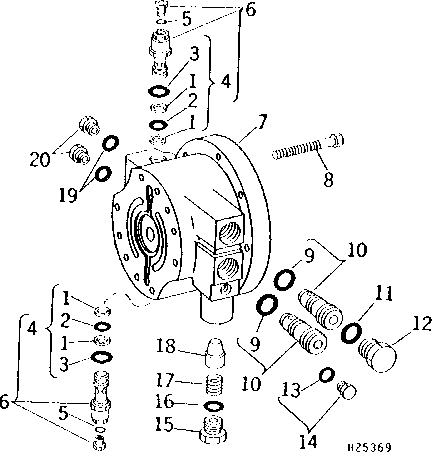

HYDROSTATIC DRIVE CENTER SECTION (2898 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H63288	4	Ring	-
2	H63289	2	O-Ring	-
3	H63290	2	O-RING	-
3	U17409	2	O-Ring	-
4	AH63292	2	SEAL KIT	(A) SEAL RELIEF VALVE
5	R26375	2	O-Ring	-
6	AH80066	2	Flow Control Hyd. Valve	-
7	H83937	1	Section	(SUB H98080 AND (2) AH63282)
7	H98080	1	Housing	-
8	H81620	8	Cap Screw	-
9	H63283	2	O-Ring	(A)
10	AH63288	2	CHECK VALVE	-
11	U12547	1	O-Ring	-
12	R27175	1	Drain Plug	-
13	R28782	1	O-Ring	-
14	AH63282	1	FITTING PLUG	-
15	H63221	1	FITTING	-
16	R26906	1	O-Ring	-
17	H81623	1	COMPRESSION SPRING	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 03 THRU 05)
17	H89241	1	Spring	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 06 AND UP)
18	H81624	1	Relief Valve	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 03 THRU 05) (SUB T54964)
18	T54964	1	PRESSURE RELIEF VALVE	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 03 THRU 05)
18	H89242	1	PISTON	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 06 AND UP)
19	U12547	2	O-Ring	-
20	R27175	2	Drain Plug	-
..	AH80067	1	Gasket Kit	(SUB AH213826), INCLUDES PARTS MARKED (A)
..	AH213826	1	Gasket Kit	(SUB FOR AH96662) SEAL AND O-RING REPAIR, (INCLUDES PARTS MARKED (A))

HYDROSTATIC DRIVE CENTER SECTION (2898 - )
