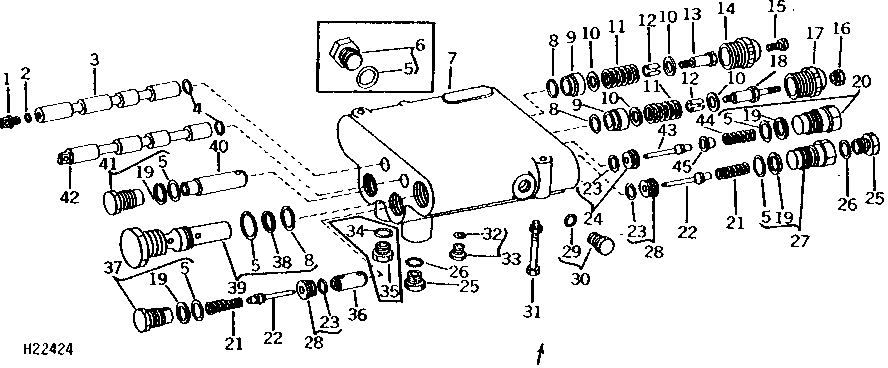

HYDRAULIC CONTROL VALVE (HYDROSTATIC DRIVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H80460	1	Clevis	-
2	A3917R	1	O-Ring	(A)
3	-	1	Part 3	(PLATFORM LIFT) (SUB AH75412)
4	H36256	2	O-Ring	(A)
5	T13119	6	O-Ring	(A)
5	T13119	5	O-Ring	(A)
6	AN71922	1	Plug	(USED WITH SPRING ASSIST AUGER SWING)
7	-	1	Part 8	(SUB AH75412)
8	R375R	3	O-Ring	(A)
8	T42786	3	O-Ring	(SUB R375R)
8	R375R	3	O-Ring	-
9	N111488	2	BUSHING	-
10	N31767	4	WASHER	-
11	H60819	2	SPRING	-
12	H62801	2	BUSHING	-
13	H63987	1	CAP SCREW	-
14	AH78797	1	Plug	-
15	H80451	1	Screw	(SUB 19H2551 AND 14H882)
15	19H2551	1	Cap Screw	5/16" X 3/4"
15	14H882	1	Nut	5/16"
16	H80459	1	Lock Nut	-
17	H80456	1	Cap	-
18	H80455	1	Screw	-
19	H35230	4	BACK-UP RING	(A)
20	AN110777	1	Plug	-
21	N111493	2	SPRING	-
22	AN30940	2	POPPET	(A)
23	R459R	3	O-Ring	(A)
24	AH20823	1	VALVE SEAT INSERT	-
25	R27218	1	Fitting Plug	(2 USED-MANUAL LIFT REEL; 1 USED-HYDRAULIC LIFT REEL)
26	R26448	1	O-Ring	(2 USED-MANUAL LIFT REEL; 1 USED-HYDRAULIC LIFT REEL)
27	AH78789	1	FITTING	-
28	AH78793	2	Seat	-
29	R28782	1	O-Ring	(A)
29	E40798	1	O-Ring	-
29	R28782	1	O-Ring	-
30	AH63282	1	FITTING PLUG	-
31	19H1913	2	Cap Screw	5/16" X 2-1/4"
31	14H785	2	Nut	5/16"
32	R34802	1	O-Ring	(A)
33	AH62843	1	Fitting Plug	-
34	R26375	1	O-Ring	-
35	R39112	1	Fitting	-
36	H80448	1	Plunger	-
37	AN110775	1	Fitting	-
38	H63357	1	BACK-UP RING	(A)
39	AH63330	1	PRESSURE RELIEF VALVE	-
39	AH88890	1	Relief Valve	(SUB AW13064)
39	AW13064	1	Pressure Relief Valve	-
40	H81706	1	Plunger	-
41	AH78791	1	Drain Plug	-
42	-	1	Part 52	(LIFT REEL) (SUB AH75412)
43	AH80223	1	POPPET	(A)
44	H81705	1	SPRING	-
45	H84537	1	GUIDE	(A)
..	AH75412	1	Valve	(SUB AH88804)
..	AH88804	1	Control Valve	(REMANUFACTURED)
..	AH78794	1	Seal Kit	SEAL REPAIR, (INCLUDES PARTS MARKED (A))

HYDRAULIC CONTROL VALVE (HYDROSTATIC DRIVE)
