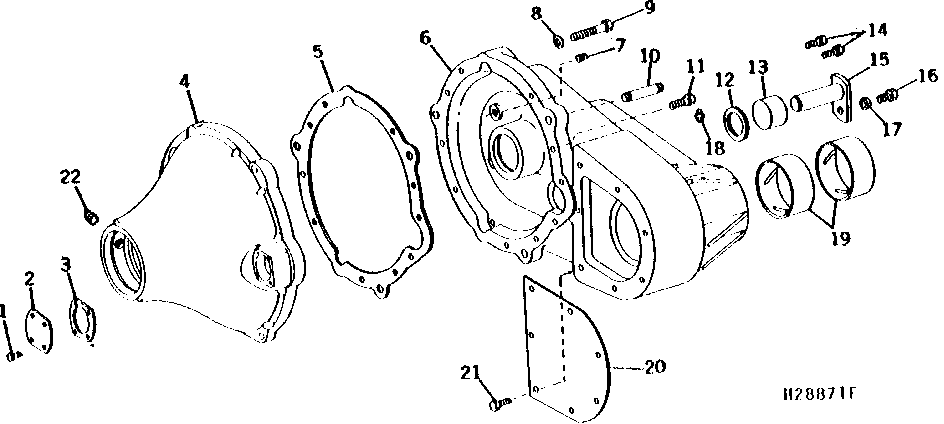

FINAL DRIVE HOUSING AND BEARING CAP - SIDEHILL

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1732	4	Cap Screw	3/8" X 1-1/4"
2	H85354	1	CAP	-
3	H75711	1	Shim	.05 MM (.002"), PLASTIC, RED
3	H75712	1	Shim	.076 MM (.003"), PLASTIC, GREEN
3	H75713	1	Shim	.127 MM (.005"), PLASTIC, BLUE
3	H75714	1	Shim	.254 MM (.010"), STEEL
3	H75715	1	Shim	.508 MM (.020"), STEEL
4	H85151	1	Housing	(HEAVY-DUTY FINAL DRIVE; 11 TO 90 RATIO) (SUB H94883)
4	H94883	1	Housing	(HEAVY-DUTY FINAL DRIVE; 11 TO 90 RATIO)
5	H75244	1	GASKET	(HEAVY-DUTY FINAL DRIVE; 11 TO 90 RATIO)
6	AH96242	1	HOUSING	INNER (SUB FOR AH89009)
7	H204931	1	Fitting	VENT (SUB FOR P46369)
7	15H584	1	Pipe Plug	1/2"
8	12H301	8	Lock Washer	1/2"
8	12H292	2	Lock Washer	1/2", (SUB FOR H75716)
9	19H1820	10	Cap Screw	1/2" X 3"
10	H95027	3	PIN FASTENER	-
10	H75243	1	Dowel Pin	(SUB H95027)
11	19H1831	2	Cap Screw	1/2" X 2"
11	12H301	2	Lock Washer	1/2"
12	H87645	1	SNAP RING	-
13	H87644	1	PLUG	-
14	19H1895	2	CAP SCREW	1/2" X 3/4", (FOR PLUGGING LOWERHLES)
15	AH90584	1	Pin Fastener	(SUB AH93026)
15	AH93026	1	PIN FASTENER	-
16	19H1815	1	Cap Screw	1/2" X 1-1/4"
17	T21242	1	Washer	-
18	JD7759	1	Lubrication Fitting	-
19	H88312	2	Bushing	-
19	H97520	2	Bushing	-
20	H89538	1	COVER	-
21	19H1936	7	Cap Screw	3/8" X 3/4"
21	12H304	7	Lock Washer	3/8"
22	15H558	1	Pipe Plug	(AH94020 IS AVAILABLE AS A SERVICE ASSEMBLY FOR ANY FINAL DRIVE PRIOR TO SERIAL NO.) 1/8"
..	AE32187	1	Sealant	-

FINAL DRIVE HOUSING AND BEARING CAP - SIDEHILL
