FINAL DRIVE AXLE, GEAR, AND BEARINGS - SIDEHILL

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H94800	1	Spindle	(SUB H103537, H103538, P48703 AND H93681)
1	H103537	1	SPINDLE	-
1	H76444	1	Axle	(SUB H94800)
2	AH87841	1	Seal	(SUB AH93852)
2	AH93852	1	SEAL	(AH94020 IS AVAILABLE AS A SERVICE ASSEMBLY FOR ANY FINAL DRIVE PRIOR TO SERIAL NO. 211519 TO)
3	R35002	1	Bowl	(SUB R59074)
3	R59074	1	Oil Cup	-
4	JD9018	1	Bearing Cone	-
5	JD8248	1	Bearing Cup	-
6	AH75467	1	RING GEAR	90 TEETH, (HEAVY-DUTY FINAL DRIVE; 11 TO 90 RATIO) (MARKED H76026) (SUB AH112028, THIS APPLICATION AND H114210 (ALSO ORDER H91730 UP TO SERIAL NO. 16474))
6	H169124	1	Gear	82 TEETH, (SUB FOR AH112028)
7	B3611R	1	SNAP RING	-
8	H76155	1	BUSHING	-
9	C565R	1	SNAP RING	-
10	JD8296	1	Bearing Cup	-
11	JD7378	1	Bearing Cone	-
15	H76441	1	Cap	-
16	H94885	1	Seal	(AH94020 IS AVAILABLE AS A SERVICE ASSEMBLY FOR ANY FINAL DRIVE PRIOR TO SERIAL NO. 211519 TO)
12A	H76446	1	Nut	-
12B	H103538	1	Nut	-
13A	H83262	1	Lock Washer	-
13B	H93681	1	Key	-
14A	H83263	1	Lock Washer	-
14B	P48703	1	Snap Ring	-

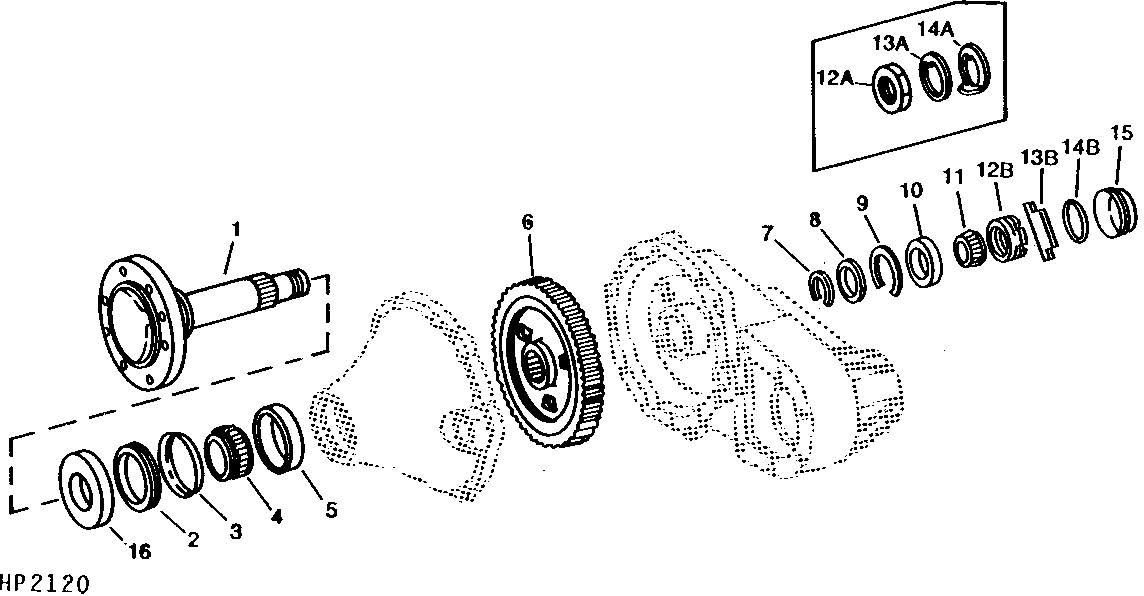

FINAL DRIVE AXLE, GEAR, AND BEARINGS - SIDEHILL
