FEEDER HOUSE VARIABLE BELT DRIVE UPPER SHAFT AND SPROCKETS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H899	2	Set Screw	3/8" X 1/2"
2	JD8544	2	Bearing	-
3	JD9452	2	Ball Bearing	-
3	JD8545	2	Ball Bearing	-
4	09H1693	4	Bolt	3/8" X 1-3/4"
4	14H812	4	NUT	3/8"
4	H95783	4	Screw	-
4	12H301	4	Lock Washer	1/2"
4	14H1040	4	Nut	1/2"
5	H75883	1	Housing	(CORN, GRAIN, RICE, BEAN) (SUB H96867, (4) H95783, (4) 12H301 AND (4) 14H1040)
5	H96867	1	Housing	(CORN, GRAIN, RICE, BEAN) (SUB H102505)
5	H102505	1	Housing	(CORN, GRAIN, RICE, BEAN)
6	H94166	3	Chain Sprocket	10 TEETH (45 MM (1-3/4") HEX. BORE)
6	H86087	3	Drive Sprocket	(A) (SUB H94166)
6	H86095	3	Chain Sprocket	10 TEETH (38 MM (1-1/2") HEX. BORE)
6	H81045	3	Chain Sprocket	(SUB H86095)
7	14H732	3	Nut	3/8"
8	H82306	3	Screw	-
8	H84158	6	Screw	-
9	H77962	1	Shaft	(SUB H83784 AND AH83900)
9	H83784	1	Shaft	(SUB H84330)
9	H84330	1	Shaft	(SUB H86088 AND (3) H94166)
9	H86088	1	Shaft	-
10	26H19	1	Shaft Key	1/4" X 7/8"
10	26H82	1	Shaft Key	1/4" X 7/8"
11	11H218	1	Cotter Pin	3/16" X 1-1/2"
12	H95857	1	Housing	(GRAIN AND RICE)
12	H87653	2	Housing	(GRAIN, RICE) (SUB H95857, (8) H95783, (8) 12H301 AND (8) 14H1040)
12	H95857	1	Housing	(CORN, GRAIN, RICE, BEAN)
12	H87653	1	Housing	(CORN, GRAIN, RICE, BEAN) (SUB H95857, (4) H95783, (4) 12H301 AND (4) 14H1040)
12	H75882	1	Housing	(CORN, GRAIN, RICE, BEAN) (SUB H87653)
12	H75882	2	Housing	(GRAIN, RICE) (SUB H87653)
13	10H1027	4	Bolt	3/8" X 1-1/4"
13	14H812	4	NUT	3/8"
13	H95783	4	Screw	-
13	12H301	4	Lock Washer	1/2"
13	14H1040	4	Nut	1/2"
14	P42749	1	Snap Ring	-
15	H78890	1	Hub	(SUB H85015 AND 26H82)
15	H85015	1	Hub	-
16	Z699H	2	SLIP CLUTCH	-
17	H80845	1	Chain Sprocket	35 TEETH
18	H93736	1	Hub	(SUB FOR H93736)
19	19H1732	4	Cap Screw	3/8" X 1-1/4"
19	14H812	4	NUT	3/8"
20	P41229	1	Spring	-
20	H84390	1	Spring	(SUB FOR H35625)
21	H20549	1	Round Retainer	-
21	H22216	1	Round Retainer	-
23	M18105	1	Spacer	-
24	J4489H	1	Washer	-
25	JD7797	1	Lubrication Fitting	-
..	AH83900	1	Clutch	(CONSISTS OF H83781, H83786, H35625, H22216)
22A	H77978	1	Nut	(SUB H105936 AND 14H793)
22A	H105936	1	Nut	SLOTTED
22A	14H793	1	Nut	3/4"
22B	H83786	1	Nut	-

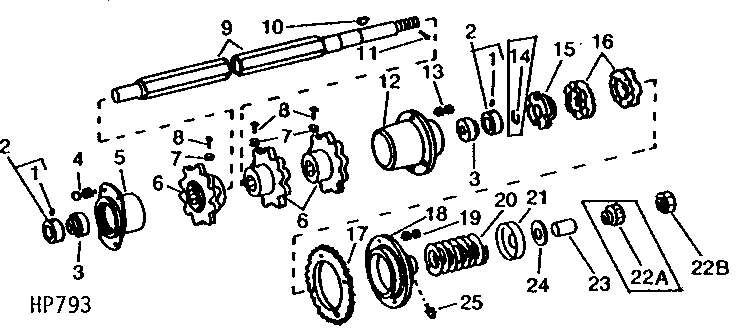

FEEDER HOUSE VARIABLE BELT DRIVE UPPER SHAFT AND SPROCKETS
