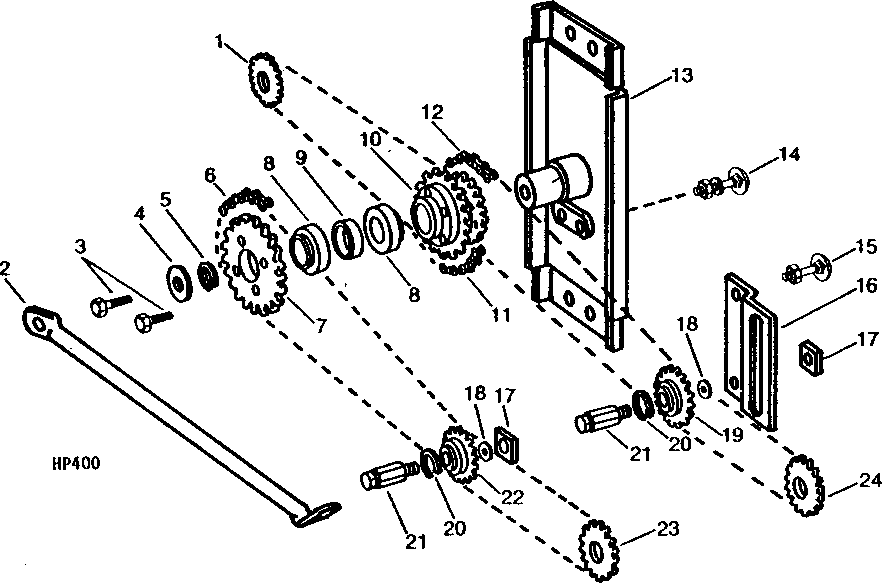

FEEDER HOUSE SPROCKETS AND TIGHTENERS (RIGHT-HAND) (SIDEHILL) (CONVEYOR TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH61821	1	Chain Sprocket	27 TEETH
2	H101206	1	Brace	-
3	19H1732	5	Cap Screw	3/8" X 1-1/4"
3	12H304	5	Lock Washer	3/8"
4	H77507	1	Washer	-
5	P42232	2	Snap Ring	-
6	-	1	Part 7	19 MM (3/4") PITCH, ROLLER, TYPE 60, 83 LINKS (ASSEMBLED FROM AB1288H, (3) AB1290H, SW60RLUS, B5235H AND SW60OLUS)
7	H98638	1	Chain Sprocket	29 TEETH, (CORN)
7	H98637	1	Chain Sprocket	23 TEETH, (SMALL GRAIN)
8	L1912C	2	Ball Bearing	-
9	H98331	1	Spacer	-
10	AH97095	1	Chain Sprocket	23 AND 30 TEETH
11	-	1	Part 13	16 MM (5/8") PITCH, ROLLER, TYPE 50, 156 LINKS (ASSEMBLED FROM (2) AP6093H, AP6094H, (3) AP6095H AND SW50OLUS)
12	-	1	Part 14	16 MM (5/8") PITCH, ROLLER, TYPE 50, 105 LINKS (ASSEMBLED FROM (2) AP6093H, (2) SW50RLUS, (2) SW50COUS AND SW50OLUS)
13	AH96801	1	Jackshaft	-
14	03H1522	2	Bolt	1/2" X 1-1/4"
14	14H1040	2	Nut	1/2"
14	12H301	2	Lock Washer	1/2"
15	03H1709	2	Bolt	5/16" X 1"
15	12H303	2	Lock Washer	5/16"
15	14H785	2	Nut	5/16"
16	H98667	1	Bracket	-
17	H88071	2	Strap	-
18	24H1850	2	Washer	17/32" X 1-1/4" X 0.180"
19	AH89428	1	Idler Sprocket	17 TEETH
20	H75588	2	Snap Ring	-
21	H88070	2	Shaft	-
22	AH89429	1	Idler Sprocket	15 TEETH
23	AH97096	1	Chain Sprocket	15 TEETH
24	AH101587	1	Chain Sprocket	26 TEETH

FEEDER HOUSE SPROCKETS AND TIGHTENERS (RIGHT-HAND) (SIDEHILL) (CONVEYOR TYPE)
