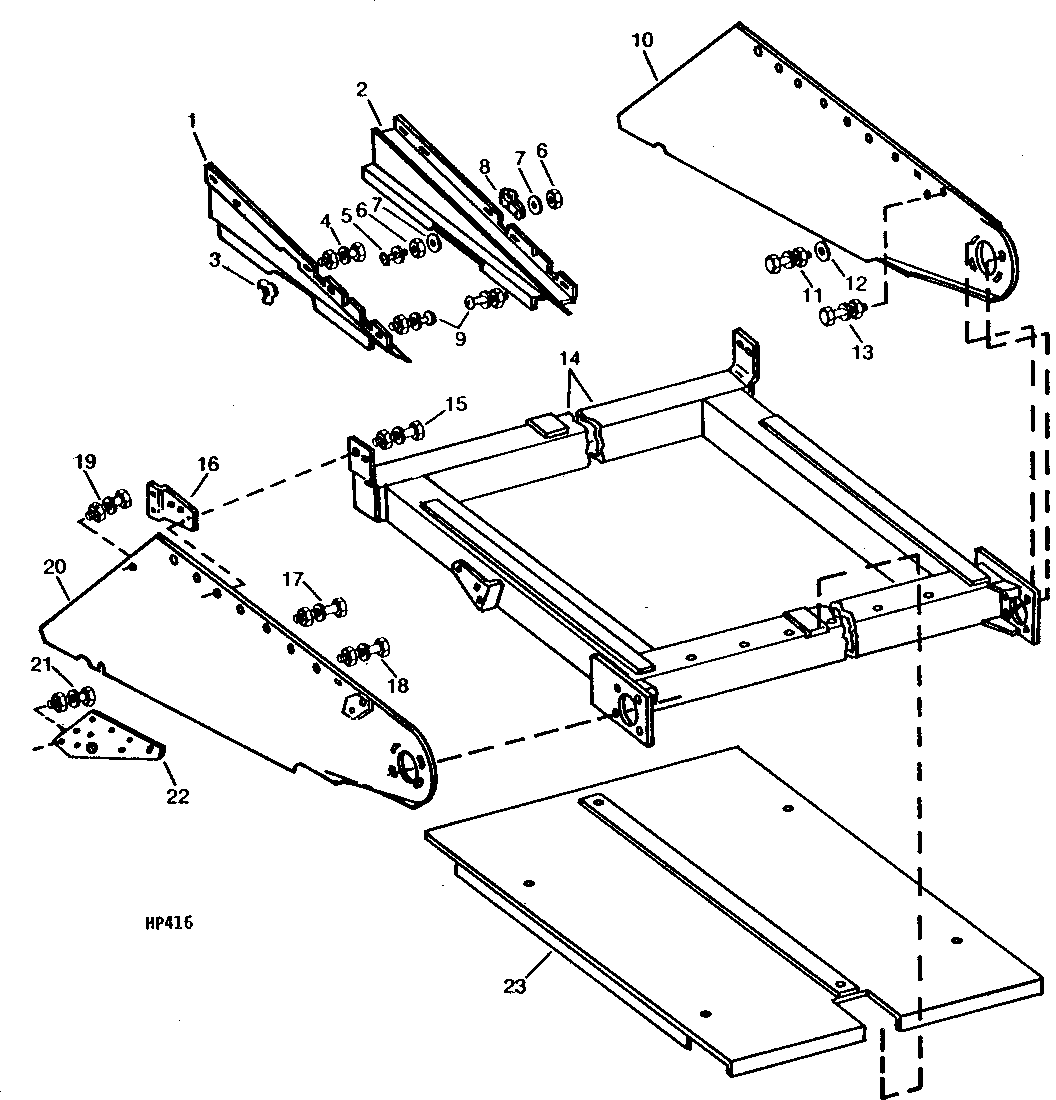

FEEDER HOUSE SIDE SHEETS AND FRAME (SIDEHILL) (CONVEYOR TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H103996	1	Shield	-
2	H103995	1	Shield	-
3	14H827	1	Wing Nut	3/8"
4	19H2471	1	CAP SCREW	3/8" X 1-1/2"
4	12H304	1	Lock Washer	3/8"
4	14H812	1	NUT	3/8"
5	21H1137	1	Screw	5/16" X 1-1/4"
5	12H303	2	Lock Washer	5/16"
6	14H785	2	Nut	5/16"
7	24H1136	2	Washer	11/32" X 11/16" X 0.065"
8	AH77869	1	Clip	-
9	12H304	4	Lock Washer	3/8"
9	14H812	4	NUT	3/8"
9	21H1321	4	Screw	3/8" X 3/4"
10	AH102724	1	Sheet	-
11	19H1936	1	Cap Screw	3/8" X 3/4"
11	12H304	1	Lock Washer	3/8"
11	14H812	1	NUT	3/8"
12	24H1305	1	Washer	13/32" X 13/16" X 0.065"
13	03H1709	2	Bolt	5/16" X 1"
13	12H303	2	Lock Washer	5/16"
13	14H785	2	Nut	5/16"
14	AH101582	1	Frame	-
15	12H294	3	Lock Washer	5/8"
15	14H1039	3	Nut	5/8"
15	03H1801	3	Bolt	5/8" X 1-3/4"
16	H102102	1	Gusset	-
16	H102103	1	Gusset	-
17	03H2321	2	Bolt	5/16" X 1-1/4", 5/16" X 1-1/4"
17	12H303	2	Lock Washer	5/16"
17	14H785	2	Nut	5/16"
18	14H812	4	NUT	3/8"
18	12H304	4	Lock Washer	3/8"
18	03H1500	4	Bolt	3/8" X 1"
19	03H1540	8	Bolt	5/16" X 3/4"
19	12H303	8	Lock Washer	5/16"
19	14H785	8	Nut	5/16"
20	AH102725	1	Sheet	-
21	19H1936	2	Cap Screw	3/8" X 3/4"
21	12H304	2	Lock Washer	3/8"
21	14H812	2	NUT	3/8"
22	H102082	1	Plate	-
22	AH97051	1	Plate	-
23	AH102054	1	Bottom	-

FEEDER HOUSE SIDE SHEETS AND FRAME (SIDEHILL) (CONVEYOR TYPE)
