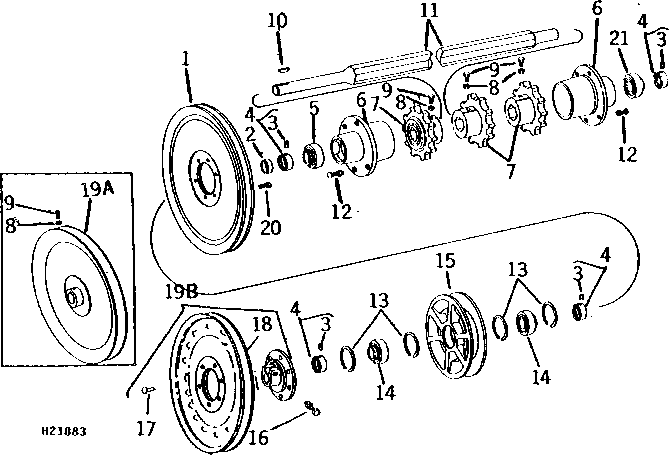

FEEDER HOUSE FIXED BELT DRIVE UPPER SHAFT AND SHEAVES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH75979	1	Pulley	440 MM (17-5/16") DIA.
2	28H1879	1	Bushing	1.380" X 1.660" X 7/16", 1-1/4" X 7/16"
2	28H3268	1	Washer	1.380" X 1.660" X 5/16"
3	22H897	4	Set Screw	1/4" X 1/4"
4	JD8544	4	Bearing	-
5	JD8545	1	Ball Bearing	(SUB JD9452, THIS APPLICATION AND 28H3268)
5	JD9274	1	BALL BEARING	(SUB JD9452, THIS APPLICATION)
5	JD9452	1	Ball Bearing	-
6	H75882	2	Housing	-
7	H86095	3	Chain Sprocket	10 TEETH (38 MM (1-1/2") HEX. BORE)
7	H94166	3	Chain Sprocket	10 TEETH (45 MM (1-3/4") HEX. BORE)
7	H86087	3	Drive Sprocket	(A) (SUB H94166)
7	H81045	3	Chain Sprocket	(SUB H86095)
8	14H732	8	Nut	3/8"
8	14H732	6	Nut	3/8"
9	H82306	8	Screw	-
9	H82306	6	Screw	-
9	H84158	6	Screw	-
10	26H22	1	Shaft Key	1/4" X 1"
11	H86093	1	Shaft	-
11	H77960	1	Shaft	(SUB H86093, THIS APPLICATION AND (3) H94166)
12	10H1027	8	Bolt	3/8" X 1-1/4"
12	14H812	8	NUT	3/8"
13	P42232	4	Snap Ring	-
14	L1912C	2	Ball Bearing	-
15	H75886	1	Pulley	188 MM (7-13/32") DIA.
16	14H812	1	NUT	3/8"
16	19H1733	1	CAP SCREW	3/8" X 2-1/2"
17	16H1110	6	Rivet	5/16" X 1"
18	AH81274	1	Pulley	327 MM (12-7/8") DIA.
20	19H1936	6	Cap Screw	3/8" X 3/4"
21	JD8545	1	Ball Bearing	(SUB JD9452, THIS APPLICATION)
21	JD9274	1	BALL BEARING	(SUB JD9452, THIS APPLICATION)
21	JD9452	1	Ball Bearing	-
19A	AH75989	1	Pulley	333 MM (13-1/8") DIA., (SUB AH81273)
19B	AH81273	1	Pulley	327 MM (12-7/8") DIA.
