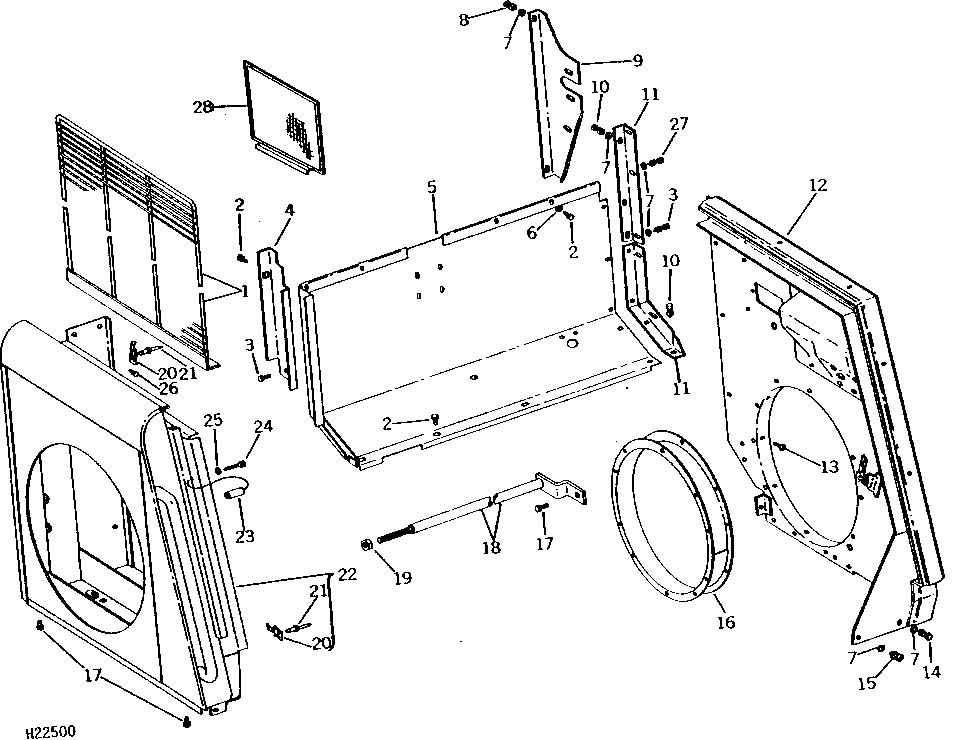

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL ( - 11500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH79228	1	Grille	-
2	H65108	1	Screw	-
3	14H785	5	Nut	5/16"
3	19H1813	5	CAP SCREW	5/16" X 5/8"
4	H79390	1	Bracket	RH
5	AH77254	1	Sheet	(SUB AH83811)
5	AH83811	1	Sheet	(SUB AH85607)
5	AH85607	1	Sheet	REAR
6	24H1224	4	Washer	11/32" X 1" X 1/16"
7	24H1136	12	Washer	11/32" X 11/16" X 0.065"
8	14H785	2	Nut	5/16"
8	19H1900	2	Cap Screw	5/16" X 3/4"
9	H80161	1	Bracket	LH
10	19H1905	6	Cap Screw	5/16" X 1"
10	14H785	6	Nut	5/16"
11	H78067	1	Angle	(SUB H84582 AND (4) H65108)
11	H84582	1	Angle	-
12	AH76578	1	Partition	(SUB AH81748)
12	AH81748	1	Partition	-
13	H76478	10	Screw	SELF-TAPPING
14	14H785	1	Nut	5/16"
14	19H1900	1	Cap Screw	5/16" X 3/4"
15	21H1304	1	Screw	5/16" X 3/4"
15	14H785	1	Nut	5/16"
16	H78081	1	Ring	-
17	19H1900	4	Cap Screw	5/16" X 3/4"
18	AH79068	1	Rail	-
19	14H1040	2	Nut	1/2"
19	12H301	2	Lock Washer	1/2"
20	AP23835	3	Latch	-
21	H62547	2	Rivet	-
22	AH81745	1	Shroud	(SUB AH83912)
22	AH84153	1	Shroud	-
22	AH83912	1	Support	(SUB AH84153)
22	AH79231	1	Shroud	-
23	28H1673	1	Bushing	0.493" X 0.675" X 4-3/16", 3/8" X 4-3/16"
24	19H2104	1	Cap Screw	3/8" X 5"
25	24H1305	1	Washer	13/32" X 13/16" X 0.065"
26	19H2020	2	Cap Screw	5/16" X 1/2"
27	19H2127	1	Cap Screw	5/16" X 7/8"
27	14H785	1	Nut	5/16"
28	AH83916	1	Screen	(BELT DRIVE)
28	AH83917	1	Screen	(HYDROSTATIC DRIVE)

FAN SHROUD, ENGINE COMPARTMENT REAR SHEET, AND INSTRUMENT WALL ( - 11500)
