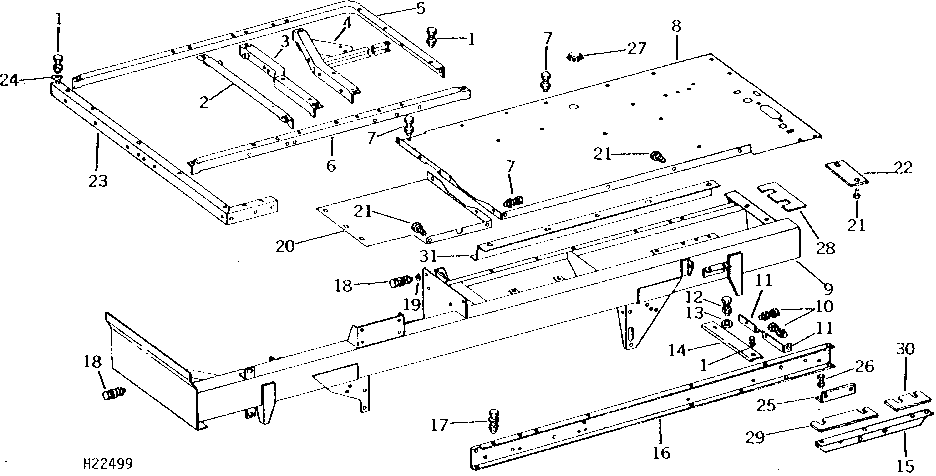

ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS ( - 105800)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	4	NUT	3/8"
1	19H1731	4	Cap Screw	3/8" X 1"
2	AH77020	1	Angle	LH
3	AH77028	1	Angle	MIDDLE
4	AH77027	1	Angle	RH
5	H78820	1	Angle	FRONT
6	H78819	1	Angle	REAR
7	19H1813	8	CAP SCREW	5/16" X 5/8"
7	14H785	8	Nut	5/16"
8	H79382	1	Sheet	(BELT DRIVE) (SUB H83473 AND H83477)
8	H83473	1	Sheet	(GASOLINE)
8	H79388	1	Sheet	(HYDROSTATIC DRIVE) (SUB H83474 AND H83477)
8	H83474	1	Sheet	(DIESEL)
8	H85057	1	Sheet	-
9	AH77167	1	Support	(SUB AH83613)
9	AH84915	1	Support	-
9	AH83613	1	Support	(SUB AH84915)
10	19H1849	2	Cap Screw	5/16" X 1-1/4"
10	14H812	2	NUT	3/8"
11	AH75306	1	Angle	-
12	19H2284	1	Cap Screw	3/8" X 7/8"
12	14H812	1	NUT	3/8"
13	24H1305	2	Washer	13/32" X 13/16" X 0.065"
14	H79385	1	Plate	RH
15	H78728	1	Angle	-
16	H79281	1	Rail	-
16	H84457	1	Rail	-
17	19H1792	1	Cap Screw	1/2" X 1"
17	12H301	1	Lock Washer	1/2"
17	14H1040	1	Nut	1/2"
18	19H1815	3	Cap Screw	1/2" X 1-1/4"
18	12H301	3	Lock Washer	1/2"
18	14H1040	3	Nut	1/2"
19	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
20	H79381	1	Sheet	LH (SUB H82286)
20	H82286	1	Sheet	LH
21	H65108	11	Screw	SELF-TAPPING
22	H84725	1	Cover	(DIESEL)
22	H84726	1	Cover	(GASOLINE)
22	H78641	1	Strap	-
23	H78827	1	Angle	LH
24	24H1219	1	Washer	7/16" X 1" X 0.083"
25	H79686	1	Angle	-
26	19H1731	1	Cap Screw	3/8" X 1"
26	14H812	1	NUT	3/8"
27	H23126	1	Plug	-
28	H85347	1	Strap	-
29	H85345	1	Strap	-
30	H85346	1	Strap	-
31	H85077	1	Seal	-

ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS ( - 105800)
