Открытый узел

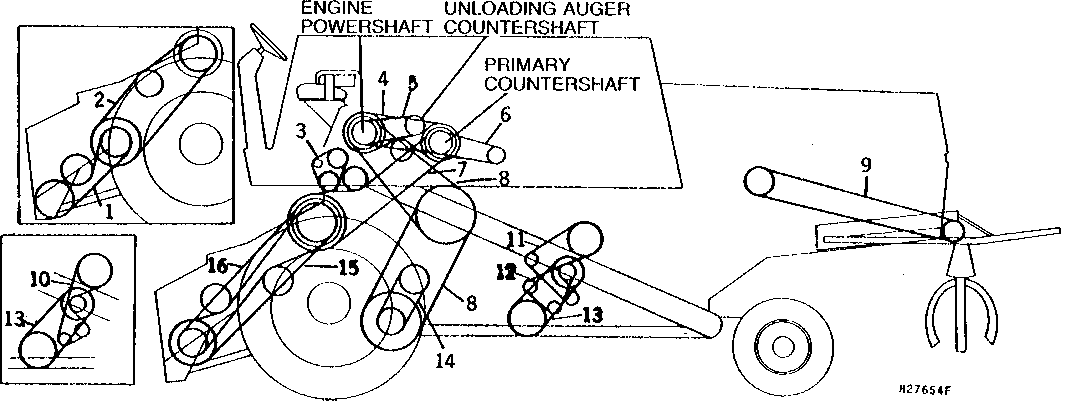

DRIVE BELTS AND CHAINS ON LEFT-HAND SIDE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89436	1	Belt Set	PLATFORM AND CORN HEAD LOWER VARIABLE (MATCHED SET OF THREE) (SIDEHILL)
1	AH76154	1	Belt Set	PLATFORM AND CORN HEAD LOWER VARIABLE (MATCHED SET OF THREE)
2	P46553	1	V-Belt	PLATFORM AND CORN HEAD MIDDLE VARIABLE
2	H84441	1	V-Belt	PLATFORM AND CORN HEAD MIDDLE VARIABLE
3	-	1	Part 5	25 MM (1") DOUBLE PITCH, DRIVE, ROLLER, TYPE 2040, 33 LINKS (TAILINGS UPPER AUGER) ASSEMBLED FROM SW2040COUS, AP19994, SW2040OLUS AND (3) AP19997)
4	AH75638	1	Belt Set	PRIMARY COUNTERSHAFT (MATCHED PAIR)
4	H83653	1	V-Belt	PRIMARY COUNTERSHAFT SUB H84462)
4	H84462	1	V-Belt	PRIMARY COUNTERSHAFT
4	H84462	1	V-Belt	PRIMARY COUNTERSHAFT (SIDEHILL)
4	H84425	1	V-Belt	PRIMARY COUNTERSHAFT (SIDEHILL) SUB H108175)
4	H108175	1	V-Belt	PRIMARY COUNTERSHAFT (SIDEHILL)
5	H76150	1	V-Belt	UNLOADING AUGER COUNTERSHAFT
5	H76150	1	V-Belt	UNLOADING AUGER COUNTERSHAFT (SIDEHILL)
5	H84424	1	V-Belt	UNLOADING AUGER COUNTERSHAFT (SIDEHILL)
6	H77683	1	V-Belt	HYDROSTATIC REEL PUMP
7	H23927	1	V-Belt	PLATFORM AND FEEDER HOUSE UPPER (CORN VARIABLE SPEED FEEDER HOUSE DRIVE)
7	H76030	1	V-Belt	PLATFORM AND FEEDER HOUSE UPPER
7	H76030	1	V-Belt	PLATFORM AND FEEDER HOUSE UPPER (EXCEPT CORN VARIABLE SPEED FEEDER HOUSE DRIVE)
8	H75847	2	V-Belt	PROPULSION (BELT DRIVE)
8	H75845	2	V-Belt	PROPULSION (HYDROSTATIC DRIVE) SUB H88576)
8	H88576	2	V-Belt	PROPULSION (HYDROSTATIC DRIVE)
8	AH84633	1	Belt Set	PROPULSION (HYDRO.DRIVE) (MATCHED SET OF TWO)
9	H26858	1	V-Belt	STRAW SPREADER
10	-	1	Part 24	16 MM (5/8") PITCH, DRIVE, ROLLER, TYPE 50, 122 LINKS (SHOE AND STRAW WALKER) ASSEMBLED FROM (2) AP6093H, (2) AP6095H, SW50RLUS AND SW50COUS)
11	-	1	Part 25	16 MM (5/8") PITCH, ROLLER, TYPE 50, 104 LINKS (STRAW WALKER) (ASSEMBLE FROM (2) AP6093H, (2) SW50RLUS, AND (2) SW50COUS)
12	-	1	Part 26	16 MM (5/8") PITCH, ROLLER, TYPE 50, 60 LINKS (SHOE CRANK) ASSEMBLED FROM AP6093H AND AP6095H)
13	H76273	1	V-Belt	66" LONG, CLEANING FAN, SUB H108668)
13	H108668	1	V-Belt	66-1/2" LONG, CLEANING FAN
14	T12042	1	V-Belt	CHARGE PUMP (HYDROSTATIC DRIVE)
14	T199T	1	V-Belt	CHARGE PUMP (HYDROSTATIC DRIVE)
15	H77765	1	V-Belt	PLATFORM AND FDRHE., LOWER (REGULAR)
15	H79796	1	V-Belt	PLATFORM AND FDRHE., LOWER (LONG)
16	H77766	1	V-Belt	FEEDER CONVEYOR (REGULAR FEEDER HOUSE)
16	H79795	1	V-Belt	FEEDER CONVEYOR (LONG FEEDER HOUSE)

DRIVE BELTS AND CHAINS ON LEFT-HAND SIDE
