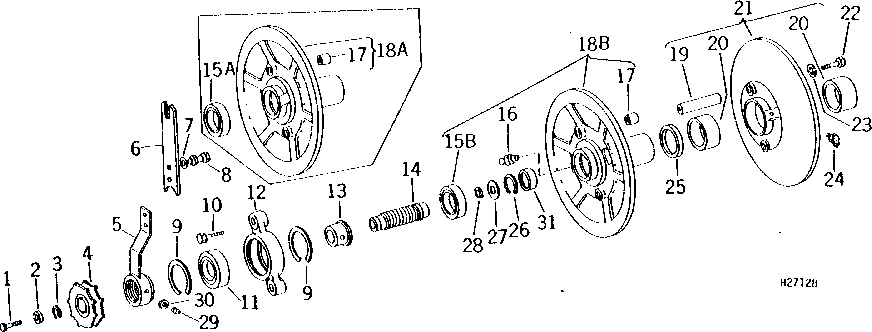

CYLINDER DRIVE SHEAVES (ON PRIMARY COUNTERSHAFT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H75549	1	Screw	-
2	JD9399	1	Ball Bearing	(SUB AT23189)
2	AT23189	1	Ball Bearing	-
3	P46437	1	SNAP RING	-
4	AH75113	1	Drive Sprocket	12 TEETH
4	AH90514	1	Drive Sprocket	28 TEETH
5	AH75112	1	Support	(SUB AH80731)
5	AH80731	1	Support	-
6	H75343	1	Strap	(SUB AH86881)
6	AH86881	1	Strap	-
7	24H1305	2	Washer	13/32" X 13/16" X 0.065"
8	19H2284	2	Cap Screw	3/8" X 7/8"
8	14H812	2	NUT	3/8"
9	H75340	2	Snap Ring	-
10	19H2735	2	Cap Screw	1/2" X 2"
10	12H301	2	Lock Washer	1/2"
11	JD8517	1	Ball Bearing	-
12	H75337	1	Cradle	-
13	H75550	1	Bushing	-
14	H75551	1	Screw	(SUB H83761)
14	H83761	1	Screw	-
16	JD7797	1	Lubrication Fitting	-
17	R27899	2	Bushing	-
19	H75334	2	Pin Fastener	-
20	H75333	2	Bushing	(SUB H84366)
20	H84366	2	Bushing	-
21	AH78077	1	Pulley	(MARKED H75010) (SUB AH84846)
21	AH84846	1	Pulley	413 MM (16-1/4") DIA., SLIDING (MARKED H75010)
22	12H301	2	Lock Washer	1/2"
22	19H1895	2	CAP SCREW	1/2" X 3/4"
23	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"
24	JD7788	1	Lubrication Fitting	-
25	AH75114	1	Seal	-
26	P43354	1	Snap Ring	-
27	H75339	1	Washer	-
28	P42273	1	Snap Ring	-
29	22H1006	1	SET SCREW	5/16" X 7/8"
30	14H611	1	Nut	5/16"
31	H89306	1	Bushing	-
15A	JD9396	1	Ball Bearing	-
15B	JD9450	1	Ball Bearing	-
18A	AH80049	1	Pulley	(MARKED H81579) (SUB AH84886)
18B	AH84884	1	Pulley	INCLUDES R27899
18B	AH84886	1	Pulley	413 MM (16-1/4") DIA., FIXED (MARKED H84416), (SUB AH84884, JD7797 AND JD9450)
