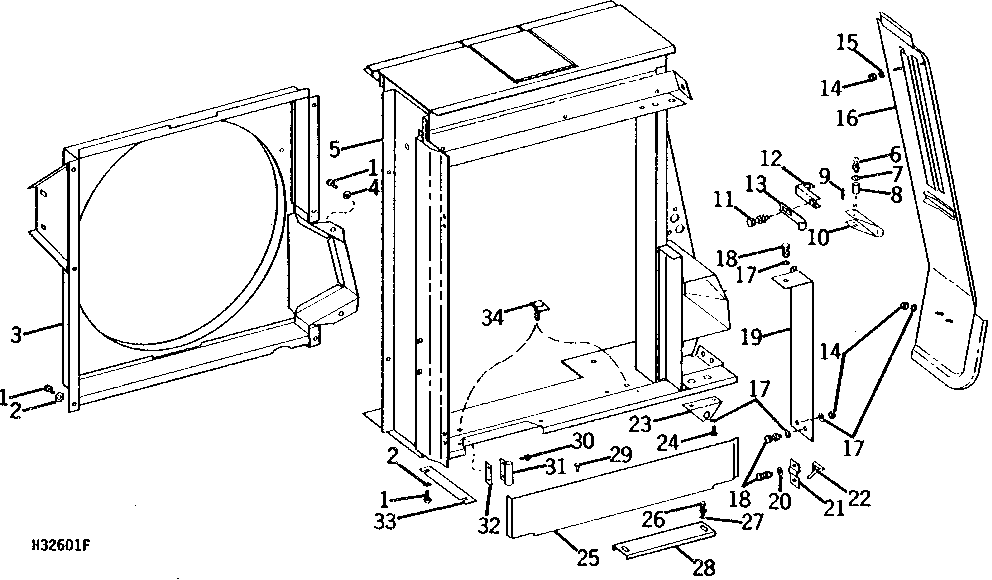

CORNER FRAME, RADIATOR CLOSURES, AND FAN SHROUD (105801 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N10214	10	Self-Locking Screw	-
2	24H1305	8	Washer	13/32" X 13/16" X 0.065"
3	AH89015	1	Shroud	(6329GH-02 AND 6329DH-01)
3	AH88857	1	Shroud	(SUB AH112178)
3	AH112178	1	Shroud	(6404DH-05)
3	AH87622	1	Shroud	(SUB AH89015)
4	24H1307	2	Washer	13/32" X 1" X 1/16"
5	AH87624	1	Frame	(SUB AH91277, (4) AH92118 AND (3) 03H1833)
5	AH91277	1	Frame	-
6	21H1045	1	Screw	1/4" X 2"
6	12H302	1	Lock Washer	1/4"
6	14H786	1	Nut	1/4"
7	24H1287	1	Washer	9/32" X 5/8" X 0.065"
8	28H1955	1	Bushing	0.269" X 0.405" X 1-15/32", 1/8" X 1-15/32"
9	34H270	1	Spring Pin	5/32" X 1-1/2"
10	H86493	1	Handle	-
11	14H850	2	NUT	1/4"
11	03H1416	2	Bolt	5/16" X 3/4"
11	N10213	1	Lock Nut	-
12	AH87635	1	Latch	(SUB H89312, H89313, N10213 AND 03H1416)
12	H89313	1	Bracket	-
13	AH87636	1	Hook	(SUB H89312, H89313, N10213 AND 03H1416)
13	H89312	1	Angle	-
14	N10213	5	Lock Nut	-
15	24H1822	2	Washer	11/32" X 7/8" X 1/16"
16	AH87634	1	Panel	(SUB AH90893)
16	AH90893	1	Panel	-
17	24H1136	5	Washer	11/32" X 11/16" X 0.065"
17	24H1136	7	Washer	11/32" X 11/16" X 0.065"
18	19H1813	4	CAP SCREW	5/16" X 5/8"
18	N10213	1	Lock Nut	-
19	H86470	1	Cover	-
19	H86470	1	Cover	(SUB H101017)
19	H101017	1	Cover	(WITHOUT AIR CONDITIONER)
20	24H1136	2	Washer	11/32" X 11/16" X 0.065"
20	24H1294	2	Washer	11/32" X 1-1/8" X 1/16", (BELT DRIVE)
21	H86479	1	Clamp	(HYDROSTATIC DRIVE) (SUB H100730 AND AH99676)
21	H100730	1	Clamp	(HYDROSTATIC DRIVE)
22	AH87793	1	Quick Lock Pin	(HYDROSTATIC DRIVE) (SUB AH99676 AND H100730)
22	AH99676	1	Quick Lock Pin	(HYDROSTATIC DRIVE) (SUB AH110420)
22	AH110420	1	Pin Fastener	-
23	H99937	1	Bracket	-
23	AH87631	1	Support	(SUB H99937)
24	N71292	2	SELF-LOCKING SCREW	-
25	H86452	1	Reinforcement	-
26	N71292	2	SELF-LOCKING SCREW	(BELT DRIVE)
26	N10213	1	Lock Nut	-
27	24H1136	2	Washer	11/32" X 11/16" X 0.065", (BELT DRIVE)
28	H86781	1	Cover	(BELT DRIVE)
29	H65108	2	Screw	-
30	N71292	2	SELF-LOCKING SCREW	-
30	N10212	2	Self-Locking Screw	-
31	H86840	2	Hinge	-
32	H86523	2	Strap	-
33	H85345	1	Strap	-
34	AH92118	2	Plate	-

CORNER FRAME, RADIATOR CLOSURES, AND FAN SHROUD (105801 - )
