AUXILIARY UNLOADING AUGER HYDRAULIC DRIVE OIL LINES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH12307	1	Hydraulic Hose	6 MM I.D. X 1048 MM LONG (1/4" X 41-1/4")
2	M66044	6	Tie Band	-
3	P47478	1	Elbow Fitting	-
4	H33776	1	Elbow Fitting	-
5	29H588	1	Threaded Nipple	3/8", 3/8" X 1-1/4"
6	P51319	1	Adapter Fitting	-
7	N31771	1	Plug	-
8	H85637	1	Orifice	-
9	AT13475	1	Hydraulic Hose	(SUB AH86644)
9	AH86644	1	Hydraulic Hose	10 MM I.D. X 1194 MM LONG (3/8" X 47")
10	R27212	1	Fitting	-
11	R26448	1	O-Ring	-
12	AR37017	1	Elbow Fitting	(WITHOUT SELECTOR VALVE)
13	AH75452	1	Line	-
14	AH77860	1	Hydraulic Hose	13 MM I.D. X 1524 MM LONG (1/2" X 60")
15	R35717	1	Fitting	-
16	AH77869	4	Clip	-
17	AH77867	2	Hydraulic Hose	13 MM I.D. X 3048 MM LONG (1/2" X 120")
18	AH77479	2	Line	-
19	H22979	4	Bushing	-
20	H76109	2	Clamp	-
21	21H1137	2	Screw	5/16" X 1-1/4"
21	12H303	2	Lock Washer	5/16"
21	14H785	2	Nut	5/16"
22	AH77473	2	Hydraulic Hose	13 MM I.D. X 711 MM LONG (1/2" X 28")
23	AR26724	1	Elbow Fitting	(2 USED-WITH REEL DRIVE; 3 USED-WITHOUT REEL DRIVE)
23	AR26724	2	Elbow Fitting	-
24	R26906	4	O-Ring	-
24	R26906	3	O-Ring	-
25	AH86624	1	Fitting	(WITH REEL DRIVE)
25	AH86624	1	Fitting	(WITH REEL DRIVE) (NOT SIDEHILL)
25	AT28383	1	Tee Fitting	(WITH REEL DRIVE) (SIDEHILL)

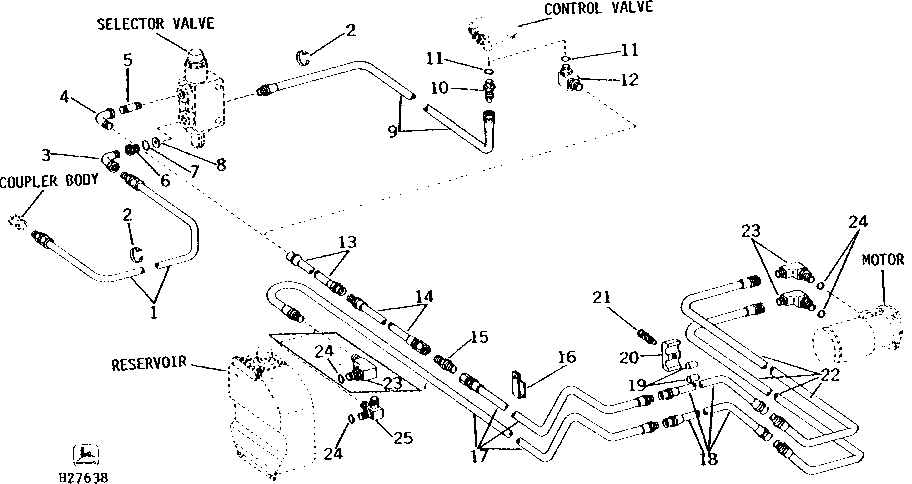

AUXILIARY UNLOADING AUGER HYDRAULIC DRIVE OIL LINES
