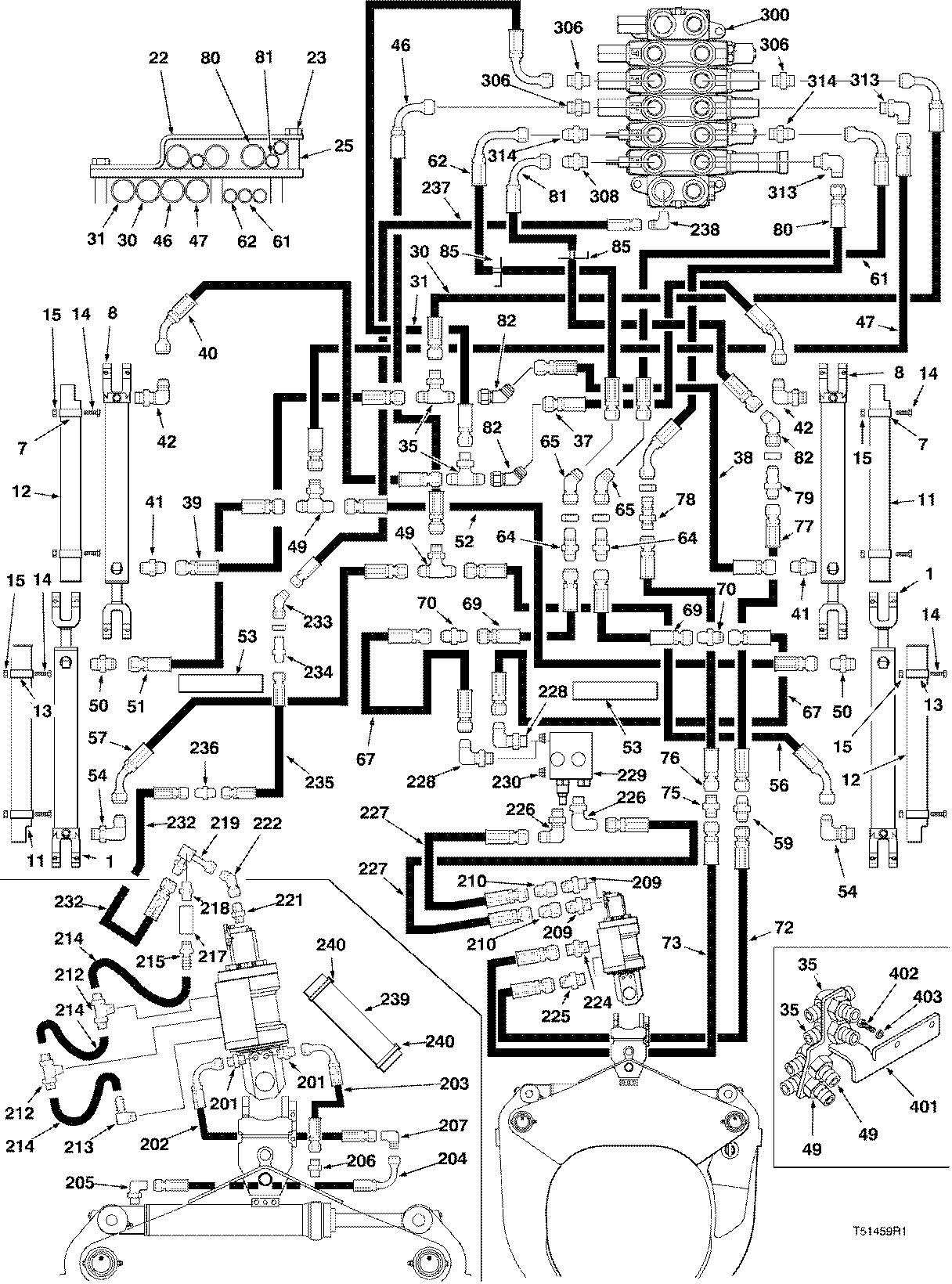

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A TJ105`` ( 974732 - 974801) 2000-289/18 [2000-289/18]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	---------	2	FELLING HEAD	-
7	826896600	4	BAND -	-
8	-------	2	O-RING	-
11	827072400	2	COVER -	-
12	827061900	2	COVER -	-
13	826906300	4	BAND -	-
14	811700900	8	SCREW*M10X1.50-110 -	-
15	811268300	8	LOCKNUT*M10X1.5 -	-
22	F278875	1	BAR -	-
23	810906900	1	BOLT*M10X1.50-75 -	-
25	F279338	1	SPACER -	-
30	F120697	1	HOSE-HYD*.75 X 72 -	-
31	F120698	1	HOSE-HYD*.75 X 76 -	-
35	827318000	2	TEE-SPECIAL -	-
37	810764400	1	HOSE-HYD*0.50X24 -	-
38	810935000	1	HOSE-HYD*0.50X52	-
39	811742200	1	HOSE-HYD*0.50X44 - (560)	-
40	811992300	1	HOSE-HYD*.50 X 14 - (560)	-
41	810490900	2	FITTING 1/2 MJIC 3/4 -	-
42	810292900	2	ELBOW-90 DEG. -	-
46	F120696	1	HOSE-HYD*.75 X 71 -	-
47	F120694	1	HOSE-HYD*.75 X 64 -	-
49	827318000	2	TEE-SPECIAL -	-
50	810490900	2	FITTING 1/2 MJIC 3/4 -	-
51	811248300	1	HOSE-HYD*0.5X84 - (560)	-
52	811421000	1	HOSE-HYD*0.5X87 - (560)	-
53	F283178	2	SLEEVE -	-
54	810292900	2	ELBOW-90 DEG. -	-
56	811099400	1	HOSE-HYD*0.50X61	-
57	810968800	1	HOSE-HYD*0.50X55 - (560)	-
59	810348700	1	FITTING -	-
61	F120699	1	HOSE-HYD*.38 X 75 -	-
62	F120701	1	HOSE-HYD*.38 X 80 -	-
64	810269500	2	ADAPTER	-
65	811675600	2	ELBOW-45 DEG.	-
67	812002600	2	HOSE-HYD* .38 X 60 -	-
69	810848200	2	HOSE-HYD*0.38X110 - (560)	-
70	810630200	2	FITTING -	-
72	811743600	1	HOSE-HYD* .50 X 81`` -	-
73	811761300	1	HOSE-HYD*0.75X83 -	-
75	811464300	1	FITTING -	-
76	811992000	1	HOSE-HYD*.75 X 110 - (560)	-
77	810582800	1	HOSE-HYD*0.5X110 - (560)	-
78	811634100	1	ADAPTER -	-
79	810328400	1	ADAPTER -	-
80	F122065	1	HOSE-HYD*.75 X 65 -	-
81	F122066	1	HOSE-HYD*.50 X 67 -	-
82	810466600	3	FITTING-45 DEG.	-
85	810654700	2	TIE STRAP -	-
201	811439600	2	ADAPTER -	-
202	811957800	1	HOSE-HYD*.75 X 40 -	-
203	811895500	1	HOSE-HYD*.75 X 38 -	-
204	F120922	1	HOSE-HYD*.75 X 30 -	-
205	811437600	1	ELBOW-90 -	-
206	811439600	1	ADAPTER -	-
207	811732700	1	ELBOW-90 DEG. -	-
209	810270000	2	FITTING*METRIC -	-
210	810749600	2	FITTING MJIC/FJIC	-
212	811204500	2	FITTING-TEE -	-
213	811172100	1	ELBOW -	-
214	826311900	3	HOSE -	-
215	811172000	1	FITTING -	-
217	811160400	1	VALVE-CHECK	-
218	811131500	1	NIPPLE	-
219	826312100	1	ELBOW	-
221	810887400	1	FITTING -	-
222	811675600	1	ELBOW-45 DEG.	-
224	811439600	1	ADAPTER -	-
225	810490900	1	FITTING 1/2 MJIC 3/4 -	-
226	810564700	2	ELBOW-45 DEG. -	-
227	811661100	2	HOSE-HYD*0.38X27 -	-
228	810280500	2	ELBOW-90 DEG. -	-
229	F122355	1	VALVE -	-
230	811706900	2	LOCKNUT*M8X1.25 -	-
232	810186300	1	HOSE-HYD*0.38X80 -	-
233	811675600	1	ELBOW-45 DEG.	-
234	810269500	1	ADAPTER	-
235	810877600	1	HOSE-HYD*0.38X118 -	-
236	810630200	1	FITTING -	-
237	F120693	1	HOSE-HYD*.38 X 75 -	-
238	810189400	1	ELBOW-90 DEG.	-
239	826791300	1	SLEEVE -	-
240	810402100	3	TIE WRAP -	-
300	---------	1	FELLING HEAD	-
306	811439600	3	ADAPTER -	-
308	810490900	1	FITTING 1/2 MJIC 3/4 -	-
313	811437600	2	ELBOW-90 -	-
314	810425400	2	FITTING 3/8 MJIC 3/4	-
401	F279202	1	MOUNT -	-
402	811168900	2	BOLT*M10X1.50-90 -	-
403	810309900	2	Washer	-
-	F435504	1	SEAL KIT -	-
-	810730000	1	HOSE-HYD*0.5X118 - (660)	-
-	811762000	1	HOSE-HYD*0.75X118 - (660)	-
-	811992500	2	HOSE-HYD*.38 X 118 - (660)	-
-	F120563	1	HOSE-HYD*.50 X 62 - (660)	-
-	F120279	1	HOSE-HYD*.50 X 68 - (660)	-
-	810777100	1	HOSE-HYD*0.5X94 - (660)	-
-	811743800	1	HOSE-HYD*0.5X91 - (660)	-
-	811540600	1	HOSE-HYD*0.50X21 - (660)	-
-	811420600	1	HOSE-HYD*0.50X51 - (660)	-
-	811420700	1	HOSE-HYD*0.5X58 - (660)	-
-	811853100	1	HOSE-HYD*.50 X 29`` - (660)	-
