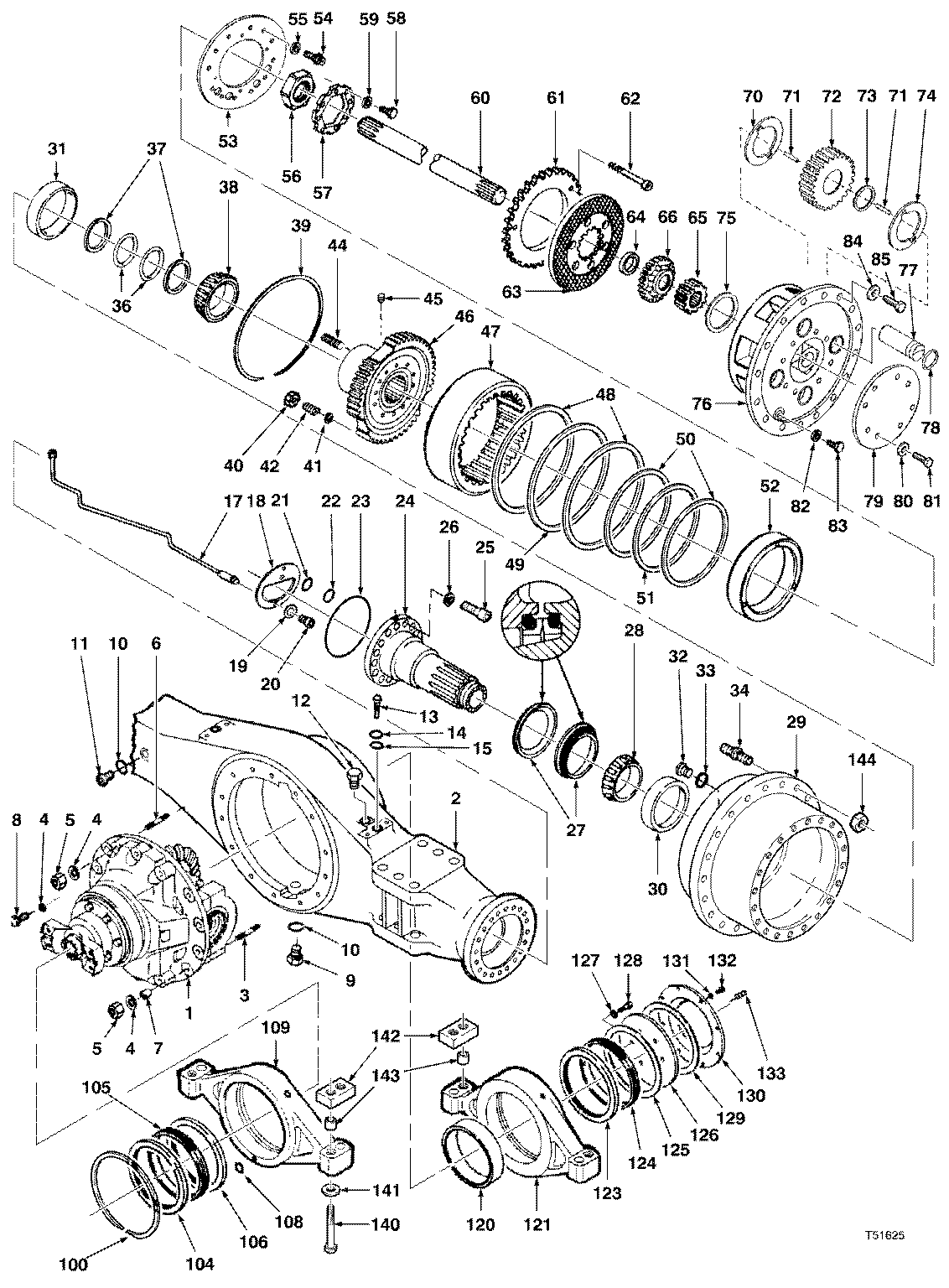

AXLE ASSY GRAPPLE FRONT 42R112 TW142D ( 962013 - 962016) 5133-022/10 [5133-022/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F434206	1	DIFFERENTIAL - HYDRALOC (5.555:1)RATIO	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\VALVE ASSEMBLY - CAB TILT SEE CAB MT & TILT\VALVE ASSEMBLY GRAPPLE MOTOR CONTROL ( 10EC1184 - ) 2481-058/10
2	F434207	1	HOUSING - AXLE -	-
3	843100700	4	STUD -	-
4	840766200	24	WASHER* 5/8 X 1 -	-
5	811336900	20	NUT*M14X2.00 -	-
6	F433780	16	STUD -	-
7	843100600	4	DOWEL -	-
8	811969300	4	BOLT*M14X2.00-20 -	-
9	843097900	1	PLUG-MAGNETIC -	-
10	840287000	1	O-RING	-
11	810529100	1	PLUG -	-
12	810605700	1	PLUG -	-
13	F433232	2	FITTING -	-
14	841428600	2	O-RING -	-
15	F433020	2	SEAL RING -	-
17	F433234	2	BRAKE LINE -	-
18	F433764	2	PLATE -	-
19	843147500	4	WASHER*METRIC -	-
20	F433236	4	BOLT -	-
21	F434100	2	BACK-UP RING - (.028 THICK)	-
22	F434106	2	SEAL RING - (.127 THICK)	-
23	843042900	2	SEAL -	-
24	F433295	2	SPINDLE -	-
25	841806500	40	BOLT*M24-3.00X100 -	-
26	843100400	40	WASHER*METRIC 24 -	-
27	842265300	2	SEAL-ASSY -	-
28	843043900	2	CONE -	-
29	843047500	2	HUB & CUP -	-
30	841622400	2	BEARING-CUP - OUTER	-
31	840361700	2	BEARING-CUP - LOWER	-
32	810529100	2	PLUG -	-
33	840287000	2	O-RING	-
34	F433242	40	STUD -	-
36	F433243	4	SEAL -	-
37	F433244	4	BACK-UP RING -	-
38	840361800	2	BEARING-CONE	-
39	843100500	2	RETAINING RING -	-
40	F433909	6	NUT -	-
41	841627200	6	WASHER -	-
42	F433249	6	SPRING -	-
44	F433250	2	PLUG -	-
45	F433251	2	BLEEDER -	-
46	F433296	2	GEAR - & HOUSING - BRAKE	-
47	843043700	2	GEAR -	-
48	F433254	4	BACK-UP RING - OUTER	-
49	F433255	2	SEAL - OUTER	-
50	F433256	4	BACK-UP RING - INNER	-
51	F433594	2	RING-PISTON SEAL - INNER	-
52	F433258	2	PISTON - BRAKE	-
53	F433259	2	RETAINER -	-
54	810899400	24	BOLT*M10X1.50-35	-
55	843147500	24	WASHER*METRIC -	-
56	843044000	2	NUT-ADJUSTING*M105 -	-
57	843044100	2	LOCK -	-
58	F433260	8	BOLT -	-
59	843142700	8	WASHER*METRIC -	-
60	F432276	2	SHAFT-AXLE -	-
61	F433302	2	PLATE - PRESSURE	-
62	F433869	6	BOLT -	-
63	F433307	2	DISC - FRICTION	-
64	F433265	2	THRUST WASHER -	-
65	841937000	2	GEAR -	-
66	F433303	2	COUPLING - DISC	-
70	841620600	4	WASHER*SPECIAL -	-
71	841936800	224	BEARING NEEDLE - NEEDLE	-
72	841936900	4	GEAR - PLANET	-
73	841620800	4	SPACER -	-
74	841620600	4	WASHER*SPECIAL -	-
75	841936300	1	THRUST WASHER -	-
76	843043200	1	CARRIER -	-
77	843043300	4	SHAFT -	-
78	841936600	4	O-RING -	-
79	843043400	1	PLATE -	-
80	F433279	8	WASHER -	-
81	F433280	8	BOLT -	-
82	840287000	2	O-RING	-
83	810529100	2	PLUG -	-
84	840766200	40	WASHER* 5/8 X 1 -	-
85	843100800	40	SCREW*METRIC 14X50 -	-
100	F433364	1	RETAINING RING - BUSHING	-
104	F434209	1	SEAL - WIPER -	-
105	F434210	1	BUSHING - TRUNION -	-
106	F434209	1	SEAL - WIPER -	-
108	F433368	2	VENT -	-
109	F434211	1	TRUNION - FRONT -	-
120	F433370	1	WEAR RING -	-
121	F434212	1	TRUNION - REAR -	-
123	F434209	1	SEAL - WIPER -	-
124	F434213	1	BUSHING -	-
125	F433373	1	THRUST WASHER -	-
126	F433374	1	PLATE - THRUST	-
127	840766200	16	WASHER* 5/8 X 1 -	-
128	811045400	16	BOLT*M14X2.00-45 -	-
129	F433373	1	THRUST WASHER -	-
130	F433375	1	RETAINER - THRUST PLATE	-
131	840766200	12	WASHER* 5/8 X 1 -	-
132	811045400	12	BOLT*M14X2.00-45 -	-
133	F433376	1	VENT -	-
134	840855300	1	SEALANT - (NOT ILLUSTRATED)	-
140	-------	1	O-RING	-
141	-------	1	O-RING	-
142	826991500	4	BLOCK -	-
143	826960900	4	DOWEL -	-
144	826918700	40	NUT*SPECIAL -	-
-	-	1	Part 112	-
-	-	1	Part 113	-
-	-	1	Part 114	-
-	-	1	Part 115	-
-	F433596	2	SEAL -	-
-	-	1	Part 116	-
-	F434108	1	KIT*SEAL - BRAKE LINE - K1	-
-	843043100	2	PLANET CARRIER - ASSY	-
-	F434146	2	PLATE - PRESSURE -	-
-	812001100	1	AXLE-TW117D -	-
-	F434107	2	BACK-UP RING -	-
-	F433763	2	SEAL RING -	-
