Pilot Controls, 2 Lever Without Front Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT356443	1	Hydr./Pilot Control Valve	Components on Seperate Page
2	AT361642	1	Plate	-
3	AT363359	1	Flow Control Hyd. Valve	Components on Seperate Page
4	AT195957	1	Hydraulic Accumulator	-
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	38H3004	3	Adapter Fitting	-
7	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	38H3060	1	Adapter Fitting	-
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H3160	1	Adapter Fitting	-
13	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	T251904	1	Label	Pilot Control Plumbing Connections
16	T249873	1	Label	Fingertip Controls
17	19M7775	4	Screw	M6 X 16
18	19M7810	1	Screw	M10 X 80
19	19M7811	1	Screw	M10 X 90
20	14M7303	4	Flange Nut	M6
21	14M7608	4	Flange Nut	M6
22	62H1054	1	Adapter Fitting	-
23	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
24	62H1001	5	Adapter Fitting	INCLUDES AT193365
24	AT193365	1	Seal Kit	-
25	T340220	1	Elbow Fitting	-
25	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	AT469632	1	Pressure Sensor	INCLUDES R26448

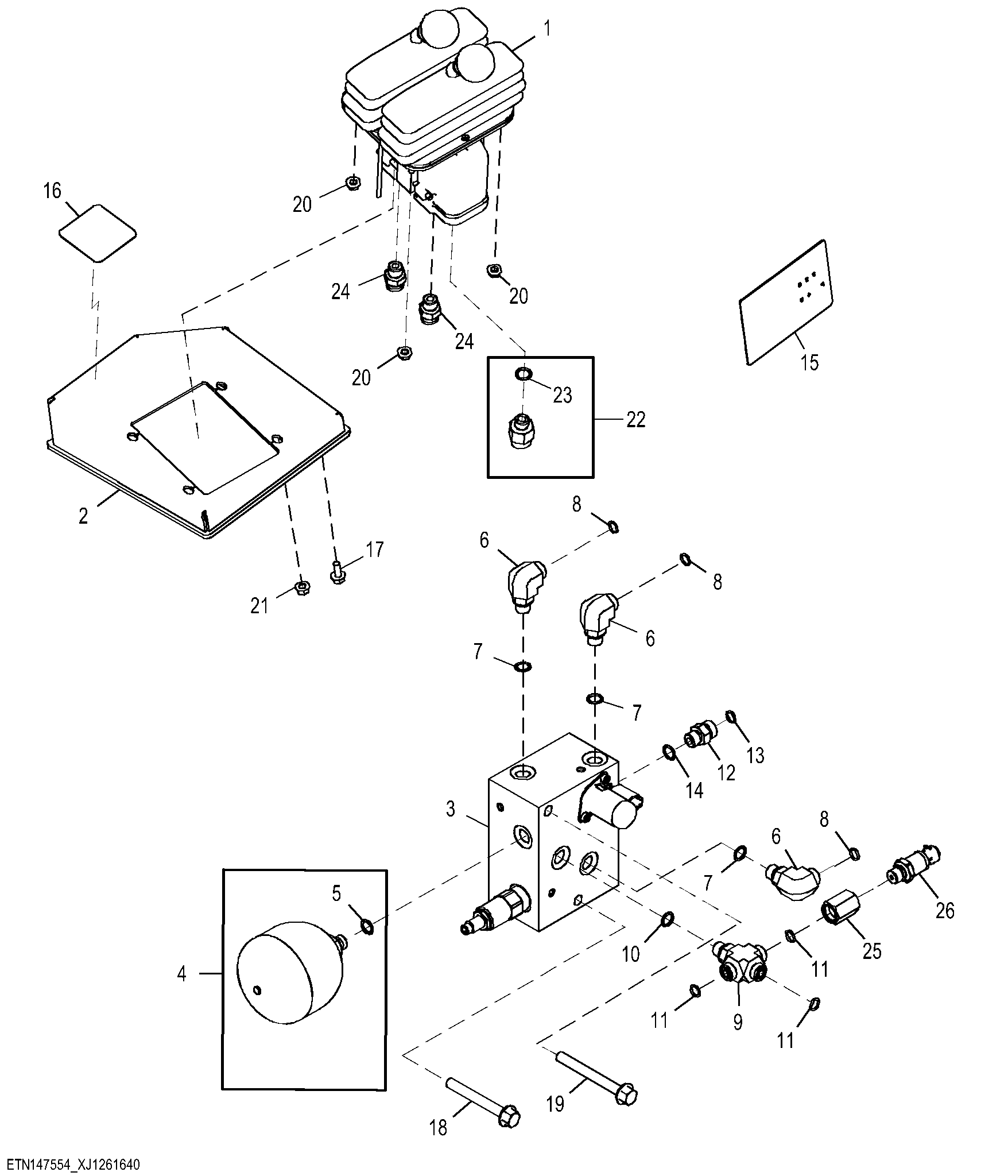

Pilot Controls, 2 Lever Without Front Hydraulics
