Pilot Control 3 Lever with Front Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT357442	1	Plate	-
2	AT359448	1	Hydr./Pilot Control Valve	Components on Seperate Page
3	AT363359	1	Flow Control Hyd. Valve	Components on Seperate Page
4	62H1001	7	Adapter Fitting	SUB FOR AT187666
4	AT193365	1	Seal Kit	-
5	AT195957	1	Hydraulic Accumulator	-
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	38H3004	3	Adapter Fitting	-
8	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
9	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	38H3060	1	Adapter Fitting	-
11	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	38H3160	1	Adapter Fitting	-
14	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	T289465	1	Label	Fingertip Controls With Multipurpose Bucket
17	T251904	1	Label	Pilot Control Plumbing Connections
18	19M7775	4	Screw	M6 X 16
19	19M7810	1	Screw	M10 X 80
20	19M7811	1	Screw	M10 X 90
21	14M7303	4	Flange Nut	M6
22	14M7608	4	Flange Nut	M6
23	62H1054	1	Adapter Fitting	-
24	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	T340220	1	Elbow Fitting	-
26	AT469632	1	Pressure Sensor	INCLUDES R26448
26	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")

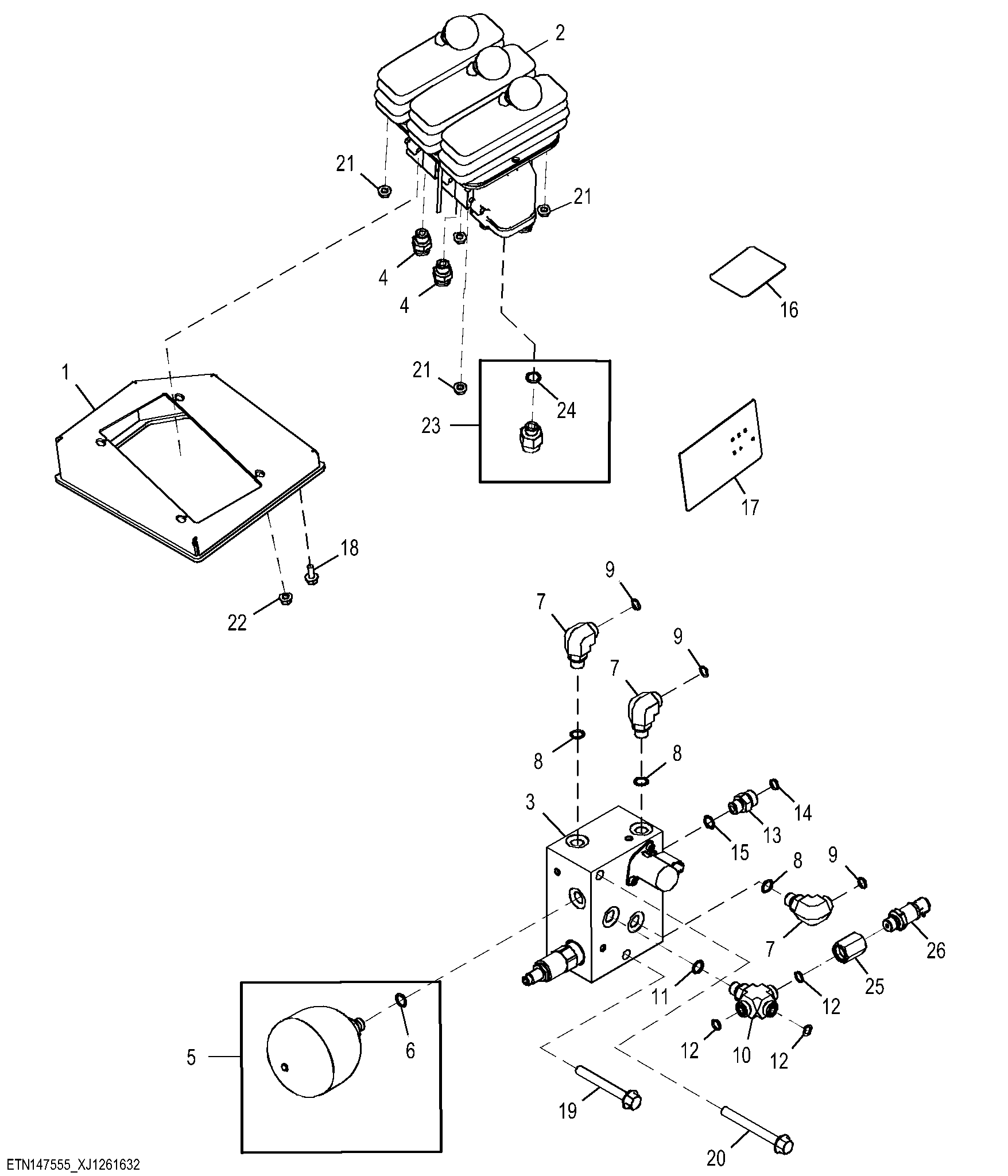

Pilot Control 3 Lever with Front Hydraulics
