Hydrostatic Integrated Control Valve, Right And Rear

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT327148	1	Seal Kit	-
1	AT317089	1	Valve	Directional Valve, INCLUDES AT327148
2	AT305595	1	Pressure Switch	Filter Restriction Indicator Switch
3	14H778	2	Nut	0.190"
4	12H295	1	Lock Washer	0.190"
5	R26448	1	O-Ring	-
6	AT430039	2	Pressure Sensor	750 PSI
6	R28782	2	O-Ring	-
7	AT49216	2	Fitting Plug	-
8	T70177	1	O-Ring	-
9	38H5006	1	Adapter Fitting	-
10	T76938	1	O-Ring	-
11	51M7048	1	O-Ring	29.600 X 2.900 mm
12	38H5408	1	Adapter Fitting	-
13	T76938	2	O-Ring	-
14	38H5020	1	Elbow Fitting	-
15	51M7048	1	O-Ring	29.600 X 2.900 mm
16	T76938	1	O-Ring	-
17	38H5018	2	Elbow Fitting	-
18	T77932	2	O-Ring	-
19	51M7045	2	O-Ring	19.300 X 2.200 mm
20	38H5010	2	Adapter Fitting	-
21	T77932	2	O-Ring	-
22	51M7043	2	O-Ring	15.300 X 2.200 mm
23	38H5412	1	Adapter Fitting	-
24	51M7048	1	O-Ring	29.600 X 2.900 mm
25	T78612	3	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
26	38H5206	1	Adapter Fitting	-
27	T76938	1	O-Ring	-
28	KV24574	3	Washer	12.900 X 23 X 6 mm (0.508" X 29/32" X 0.236")
29	AT462147	1	Hydraulic Hose	To Hydrostatic Integrated Control Valve
30	RE65836	1	Coolant Temperature Sensor	-
31	19M7789	3	Screw	M12 X 30
32	38H5189	1	Adapter Fitting	-
33	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
34	51M7049	1	O-Ring	38.600 X 2.900 mm

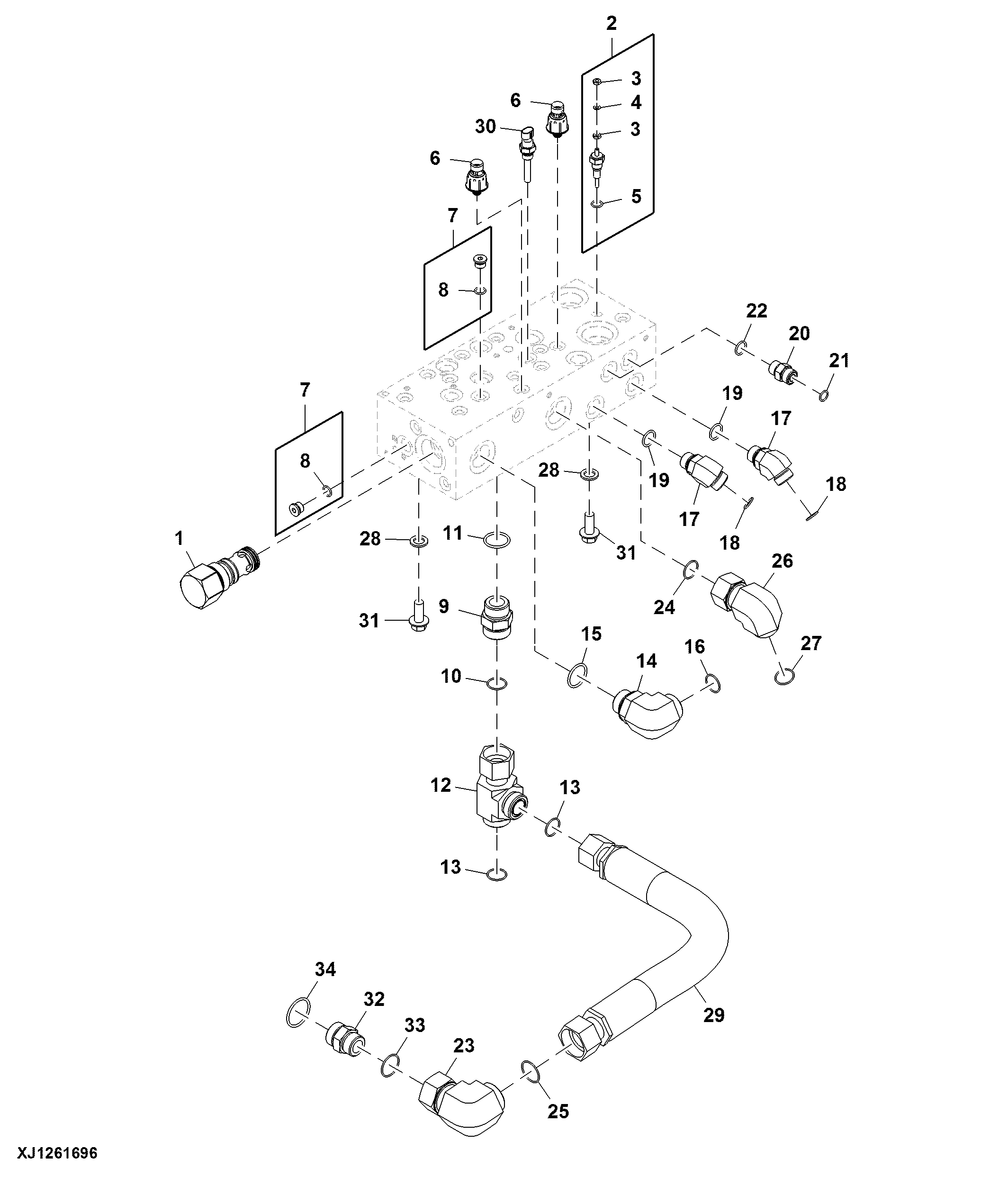

Hydrostatic Integrated Control Valve, Right And Rear
