Hydrostatic Integrated Control Valve, Front And Left

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT327143	1	Seal Kit	-
1	AT486606	1	Valve	Relief Valve
2	AT327145	1	Seal Kit	-
2	AT314329	1	Seal Kit	-
2	AT308124	1	Solenoid Valve Coil	Brake Apply
3	AT308123	1	Solenoid Valve	Brake Apply
4	AT423342	1	Solenoid Valve Coil	-
5	T225292	1	Nut	-
6	AT423342	1	Solenoid Valve Coil	Brake Release
7	AT308122	1	Solenoid Valve	Brake Release
7	AT327146	1	Seal Kit	-
8	T225293	1	Nut	-
9	AT317092	1	Valve	Directional Valve
9	AT327148	1	Seal Kit	-
10	AT310789	1	Valve	Pull To Shift
10	AT327150	1	Seal Kit	-
11	AT310790	1	Valve	Pull To Shift
11	AT327151	1	Seal Kit	-
12	AT307214	1	Valve	Load Shuttle Valve
12	AT327152	1	Seal Kit	-
13	AT323730	1	Valve	Check Valve
13	AT327153	1	Seal Kit	-
14	AT307211	1	Pressure Relief Valve	-
14	AT327149	1	Seal Kit	-
14	T187815	1	O-Ring	-
15	AT307212	1	Pressure Relief Valve	-
15	AT327149	1	Seal Kit	-
15	T187815	1	O-Ring	-
16	AT318160	1	Oil Filter	-
17	AT317088	1	Valve	-
18	AT327149	1	Seal Kit	-
18	AT313500	1	Valve	Tank Bypass Pilot Valve
19	AT423339	1	Solenoid Valve Coil	-
20	T225293	1	Nut	-
21	AT303799	1	Valve	Solenoid Valve
21	AT224873	1	Seal Kit	-
22	AT474166	1	Pump	Hand Pump
22	AT327146	1	Seal Kit	-
23	AT63271	1	Fitting	-
24	R26375	1	O-Ring	-
25	38H5386	1	Adapter Fitting	-
26	51M7043	1	O-Ring	15.300 X 2.200 mm
27	T77857	1	O-Ring	-
28	38H5066	1	Elbow Fitting	-
29	51M7045	1	O-Ring	19.300 X 2.200 mm
30	T77858	1	O-Ring	-
31	38H5001	1	Adapter Fitting	-
32	T77814	2	O-Ring	-
33	51M7040	2	O-Ring	9.300 X 2.200 mm
34	38H5183	2	Elbow Fitting	-
35	T77814	2	O-Ring	-
36	T105368	8	Fitting Plug	-
37	T58477	1	Fitting	-
38	38H5415	1	Adapter Fitting	-
39	T76938	1	O-Ring	-
40	51M7048	1	O-Ring	29.600 X 2.900 mm
41	T204128	2	Screw	-
42	38H5361	1	Adapter Fitting	-

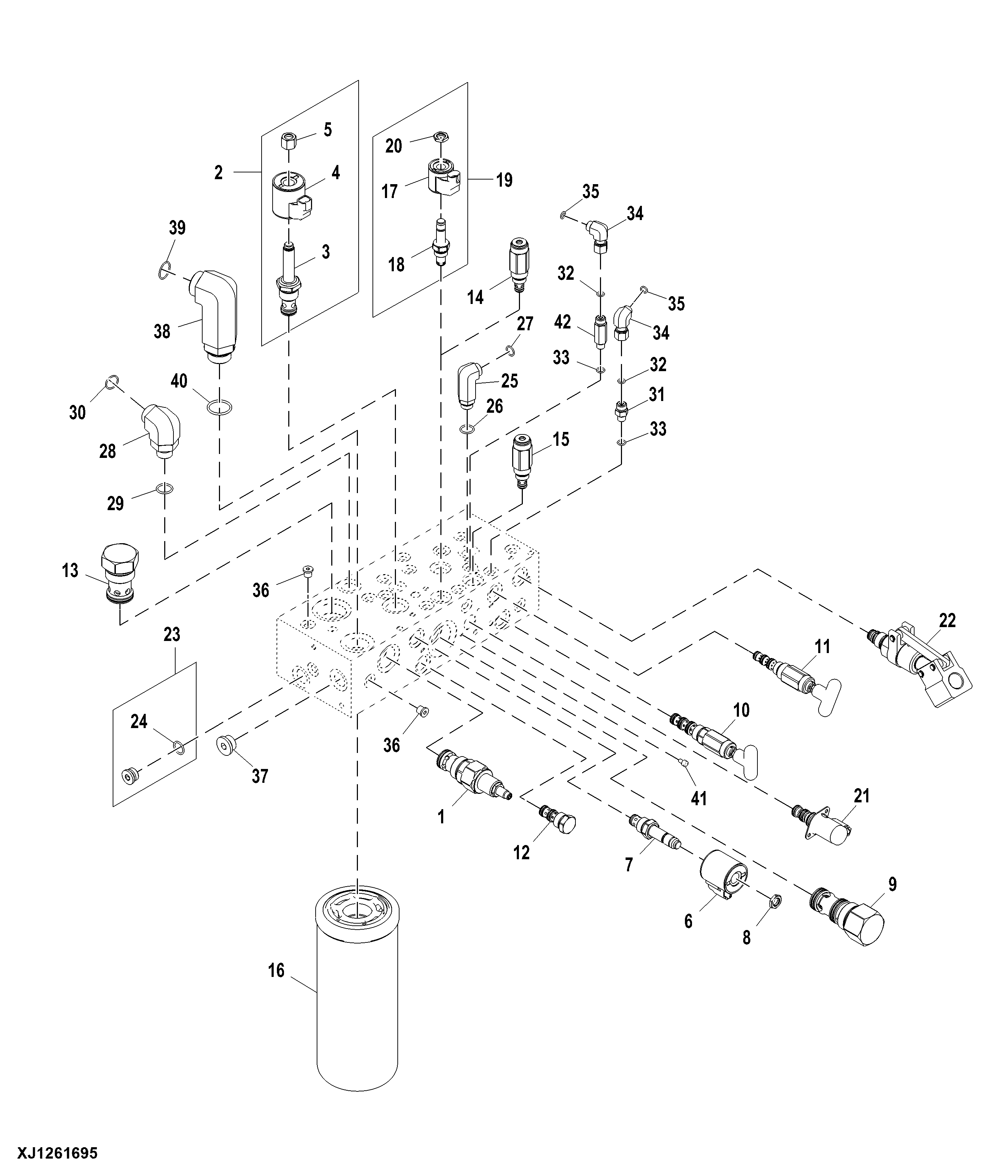

Hydrostatic Integrated Control Valve, Front And Left

Нет текстового описания
