Final Drive Components, Long Track, Standard Track

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200986	1	Drive Reman	RH, NLA; ORDER RM100135; REMAN FOR AT452042 AND AT352354, REQUIRES (5) T349113, (25) T354545 AND (25) T354546
1	AT466305	1	Drive	RH, SUB FOR AT452042, AT352354, AT450284 AND AT479168, REQUIRES (5) T349113, (25) T354545 AND (25) T354546
1	RM100134	1	Drive Reman	LH, REMAN FOR AT466304, AT450283 AND AT479167
1	PG200991	1	Drive Reman	LH, NLA; ORDER RM100134; REMAN FOR AT452041 AND AT352353, REQUIRES (5) T349113, (25) T354545 AND (25) T354546
1	RM100135	1	Drive Reman	RH, REMAN FOR AT466305, AT450284 AND AT479168
1	AT466304	1	Drive	LH, SUB FOR AT452041, AT352353, AT450283 AND AT479167, REQUIRES (5) T349113, (25) T354545 AND (25) T354546
2	AT528332	1	Housing	LH, SUB FOR AT462611, T279467 AND T209107
2	AT528333	1	Housing	RH, SUB FOR AT462612, T279466 AND T208697
3	T239237	1	Housing	-
4	T369362	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T200797
5	T369363	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T200798
6	T369364	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T200799
7	AT505275	1	Seal	SUB FOR AT450312 AND AT353424
8	T359175	1	Housing	SUB FOR T267975, REQUIRES (5) T349113, (25) T354545 AND (25) T354546, PER FINAL DRIVE
8	T349113	5	Sprocket Segments	Through-Bolt Design Not Illustrated, USE WITH T359175, AT466305, RM100135, AT466304 AND RM100134
8	T354545	25	Screw	Not Illustrated, USE WITH T359175, AT466305, RM100135, AT466304 AND RM100134
8	T354546	25	Nut	Not Illustrated, USE WITH T359175, AT466305, RM100135, AT466304 AND RM100134
9	AT461877	1	Seal	SUB FOR T216571
10	JD7446	1	Bearing Cup	-
11	JD8130	1	Bearing Cone	-
12	T200698	1	Snap Ring	-
13	T200200	1	Hub	-
14	T200364	1	Plate	-
15	19M7493	12	Cap Screw	M12 X 40
16	T369645	1	Ring Gear	SUB FOR T195868
17	T200401	1	Snap Ring	-
18	T394703	1	Sun Gear	11 Tooth, SUB FOR T357029, T216997 AND T212533, REQUIRES (3) T394705
19	T394702	1	Gear	79 Tooth, SUB FOR T218792, REQUIRES T394697
20	T394697	1	Pinion Shaft	13 Tooth, SUB FOR T218791, REQUIRES T394702
21	T427603	1	Planet Pinion Carrier	SUB FOR T196375
22	T166933	1	O-Ring	-
23	DE18556	3	Thrust Bearing	-
24	T394705	3	Planet Pinion	SUB FOR T357032, T216994 AND T212530, REQUIRES T394703
25	T372247	3	Pin	SUB FOR T200202
26	19M9387	3	Screw	M16 X 120
27	19M8306	30	Screw	M12 X 50
28	T369365	1	Shim	TK = 0.178 mm (0.007 in), SUB FOR T216314
29	T369366	1	Shim	TK = 0.127 mm (0.005 in), SUB FOR T216315
30	T369367	1	Shim	TK = 0.508 mm (0.02 in), SUB FOR T263699
31	T257941	1	Bearing Housing W/O Bearing	SUB FOR T203227
32	19M8637	8	Cap Screw	M10 X 40
33	T162018	1	Gasket	-
34	AT460572	1	Brake	SUB FOR AT352327
35	T202030	1	Housing	-
36	T373515	1	Gasket	SUB FOR T164624
37	T153832	1	O-Ring	-
38	T56467	16	Spring	-
39	T200272	1	Plate	-
40	T45901	1	Snap Ring	-
41	T200271	1	Piston	-
42	T152624	1	O-Ring	-
43	R81499	4	Plate	-
44	AT467275	4	Disk With Inner Spline	SUB FOR AT300740
45	AT460569	1	Hub	SUB FOR AT300032
46	34M7131	1	Spring Pin	4 X 50 mm
47	T200552	1	Plate	-
48	19M7835	4	Screw	M10 X 35
49	T153833	2	O-Ring	-
50	40M7120	1	Snap Ring	-
51	19M8610	22	Screw	M16 X 110
52	H23836	1	Ball	SUB FOR R29194
53	T78662	4	Drain Plug	-
54	U17409	4	O-Ring	-
55	25M3827	2	Groove Pin	3 X 8 mm
56	24M7345	8	Washer	13.500 X 24 X 2.500 mm
57	19M7908	8	Cap Screw	M12 X 110
58	AT385620	2	Tapered Roller Bearing	SUB FOR JD9157 AND JD9603
59	AT390577	4	Tapered Roller Bearing	-

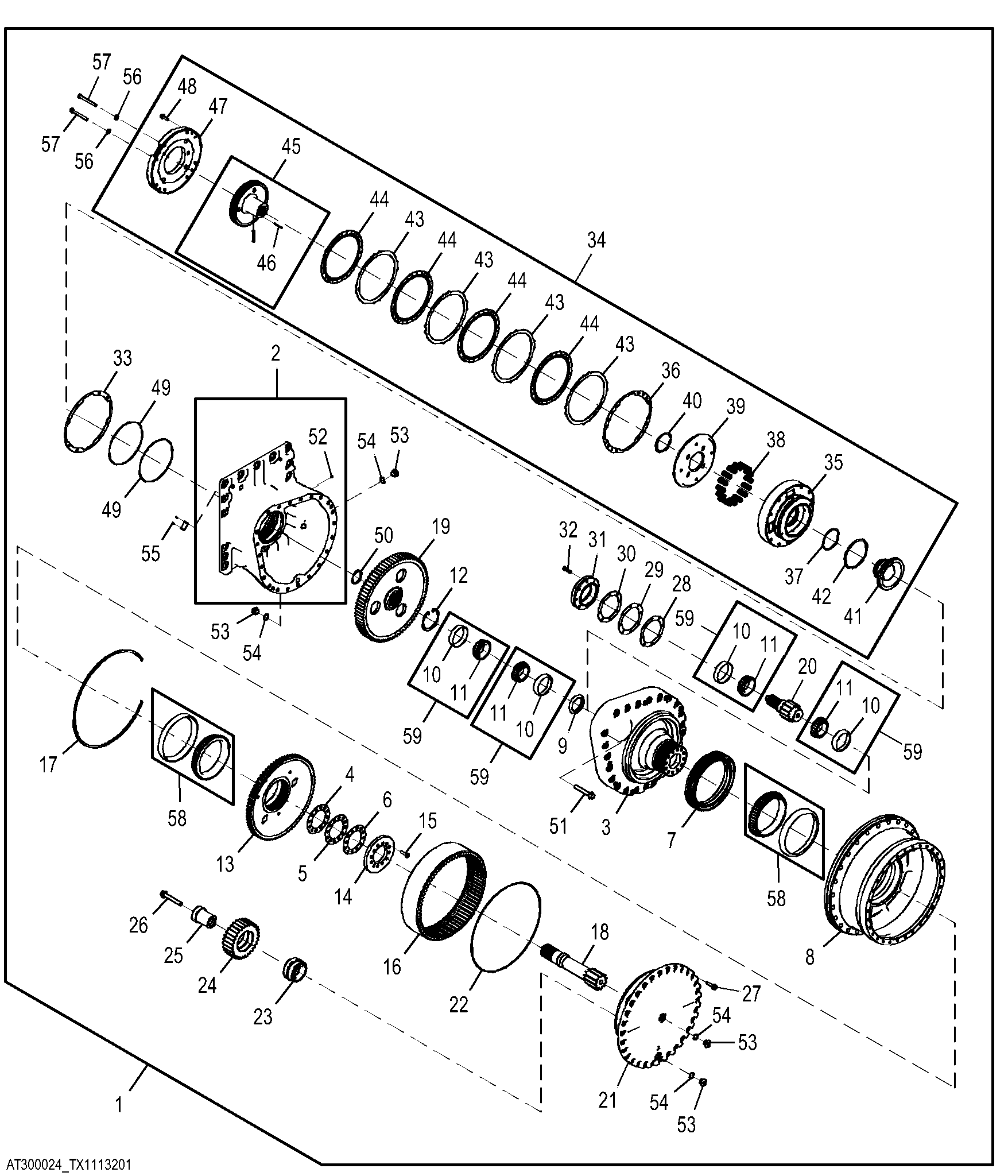

Final Drive Components, Long Track, Standard Track
