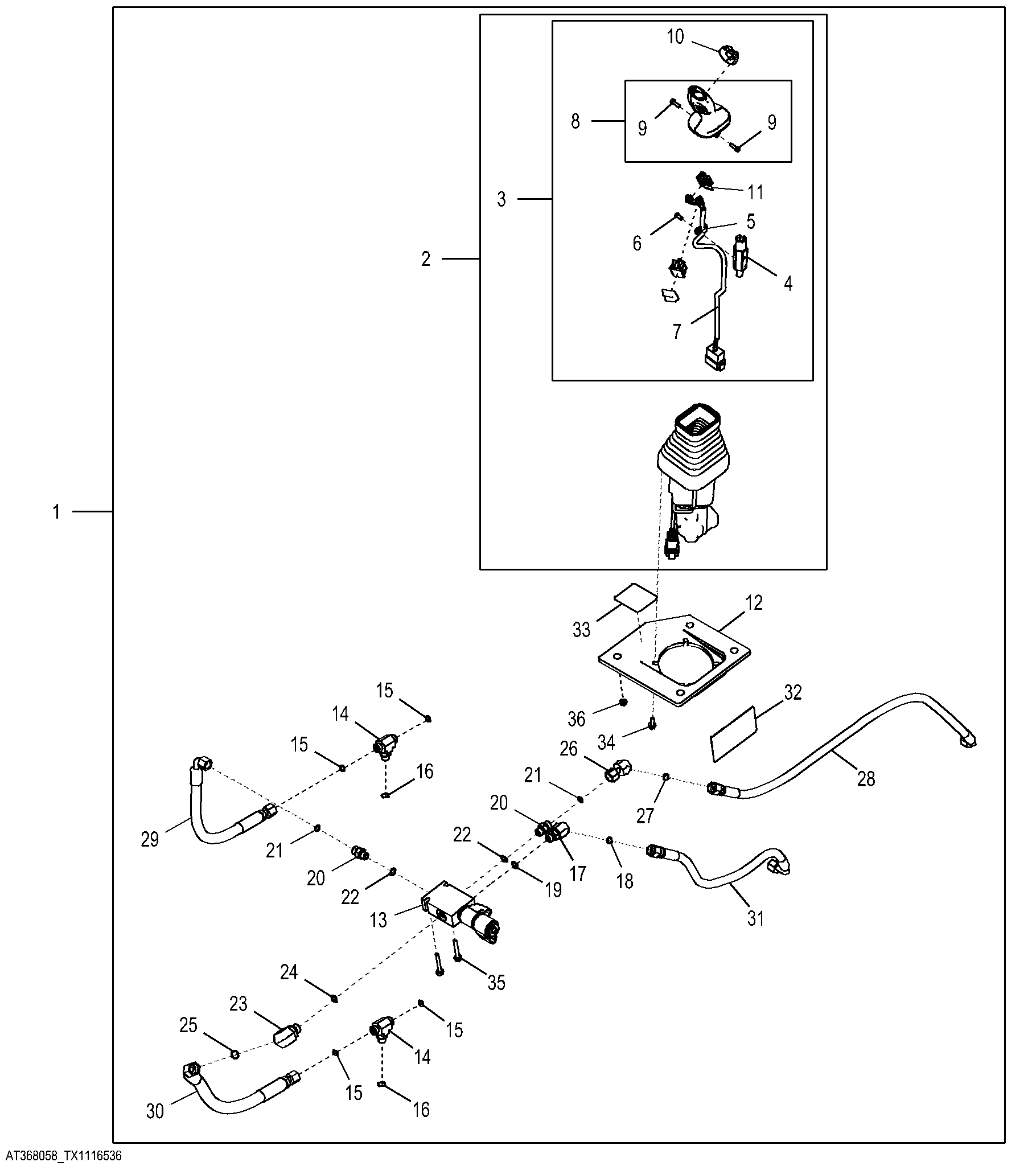

3- Lever Controller To Joystick Conversion Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464312	1	Valve Kit	Component on Separate Page
1	AT368058	1	Valve Kit	WHOLE GOODS, NLA, ORDER AT464312
2	AT352262	1	Hydr./Pilot Control Valve	Components Listed on Separate Pages
3	AT360753	1	Handle	-
4	LW9591352	1	Control Lever	-
5	LW7381634	1	Clip	-
6	21M7198	1	Screw	M5 X 8
7	LW9289201	1	Cab Wiring Harness	Handle
8	LW10469932	1	Handle	-
9	AT218439	2	Socket Head Screw	-
10	LW10469918	1	Cover	-
11	LW9968581	1	Push Switch	-
12	AT375057	1	Plate	-
13	AT330179	1	Solenoid Hydraulic Valve	Angle Control
13	AT330180	1	Solenoid Hydraulic Valve	Cartridge
13	AT423341	2	Solenoid Valve Coil	SUB FOR AT333811
13	F433465	1	Seal Kit	-
13	T225291	1	Nut	-
14	38H1016	1	Tee Fitting	-
15	T77613	2	O-Ring	-
16	R26448	1	O-Ring	-
17	38H1045	1	Elbow Fitting	-
18	T77613	1	O-Ring	-
19	R26448	1	O-Ring	-
20	38H1160	1	Adapter Fitting	-
21	T77613	1	O-Ring	-
22	R26448	1	O-Ring	-
23	38H1314	1	Elbow Fitting	-
24	R26448	1	O-Ring	-
25	T77857	1	O-Ring	-
26	38H1621	1	Adapter Fitting	-
27	T77613	1	O-Ring	-
28	AT354183	1	Hydraulic Hose	Fabricate
29	AT387382	1	Hydraulic Hose	Fabricate
30	AT387388	1	Hydraulic Hose	Fabricate
31	AT387400	1	Hydraulic Hose	Fabricate
32	T251905	1	Label	Pilot Control Plumbing Connections
33	T251938	1	Label	Joystick Control w/ Multipurpose Bucket
34	19M7862	4	Screw	M6 X 20
35	19M7834	2	Screw	M6 X 45
36	14M7303	4	Flange Nut	M6
