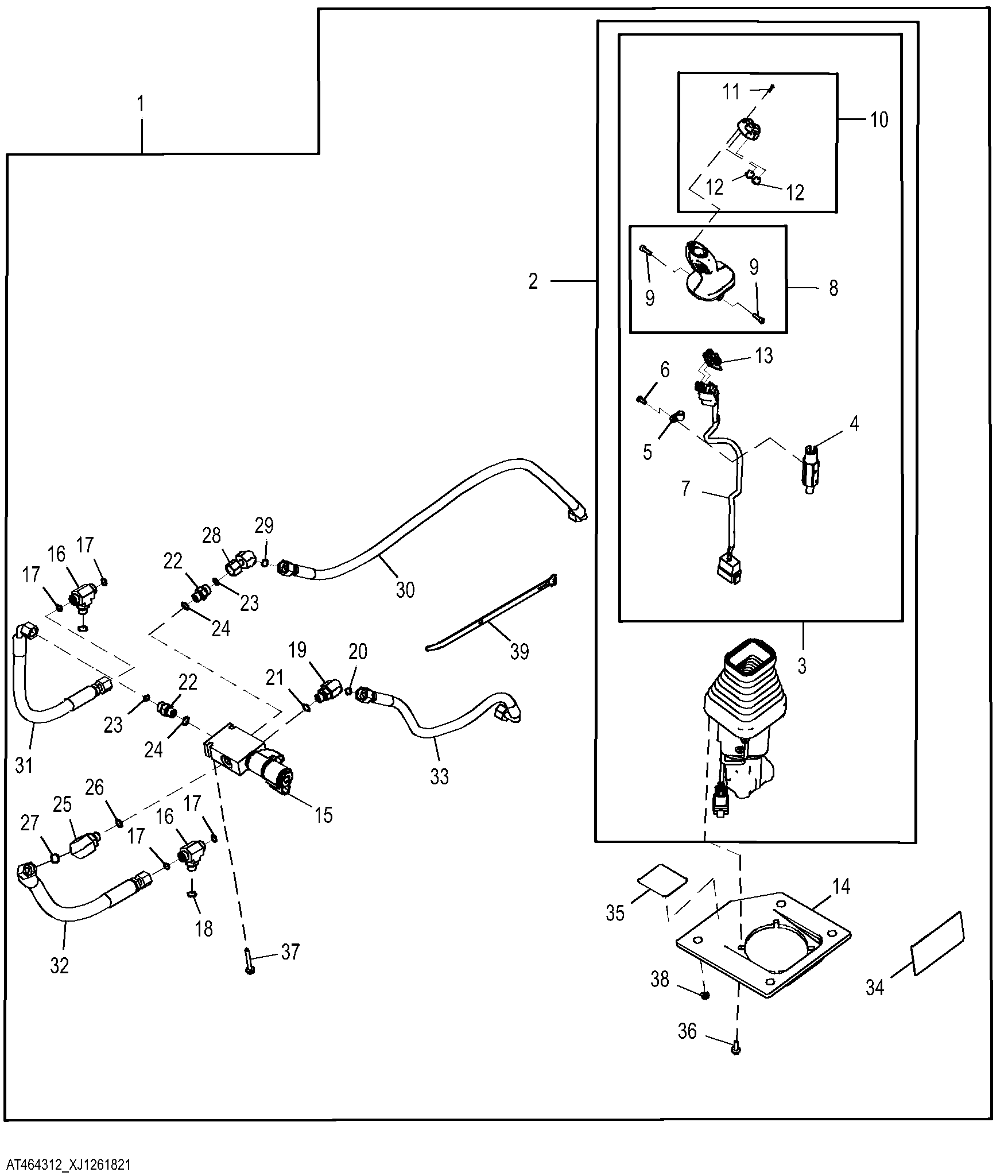

3 Lever Controller To Joystick Conversion Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464312	1	Valve Kit	WHOLE GOODS
2	AT352262	1	Hydr./Pilot Control Valve	Components Listed on Separate Pages
3	AT360753	1	Handle	-
4	LW9591352	1	Control Lever	-
5	LW7381634	1	Clip	-
6	21M7198	1	Screw	M5 X 8
7	LW9289201	1	Cab Wiring Harness	Handle
8	LW10469932	1	Handle	-
9	AT218439	1	Socket Head Screw	-
10	LW10469918	1	Cover	-
11	LW10015712	1	Screw	-
12	LW10040322	2	Push Switch	-
13	LW9968581	1	Push Switch	-
14	AT375057	1	Plate	-
15	AT330179	1	Solenoid Hydraulic Valve	Angle Control, INCLUDES AT330180, F433465, T225291 AND AT423341
15	AT330180	1	Solenoid Hydraulic Valve	Cartridge
15	F433465	1	Seal Kit	-
15	T225291	1	Nut	-
15	AT423341	2	Solenoid Valve Coil	-
16	38H1016	2	Tee Fitting	-
17	T77613	4	O-Ring	-
18	R26448	2	O-Ring	-
19	38H1045	1	Elbow Fitting	-
20	T77613	1	O-Ring	-
21	R26448	1	O-Ring	-
22	38H1160	2	Adapter Fitting	-
23	T77613	2	O-Ring	-
24	R26448	2	O-Ring	-
25	38H1314	1	Elbow Fitting	-
26	R26448	1	O-Ring	-
27	T77857	1	O-Ring	-
28	38H1621	1	Adapter Fitting	-
29	T77613	1	O-Ring	-
30	AT463804	1	Hydraulic Hose	-
31	AT463805	1	Hydraulic Hose	-
32	AT463806	1	Hydraulic Hose	-
33	AT463807	1	Hydraulic Hose	-
34	T251905	1	Label	Pilot Control Plumbing Connections
35	T251938	1	Label	Joystick Control with Multipurpose Bucket
36	19M7862	4	Screw	M6 X 20
37	19M7834	2	Screw	M6 X 45
38	14M7303	4	Flange Nut	M6
39	H224073	1	Tie Band	-

3 Lever Controller To Joystick Conversion Kit
