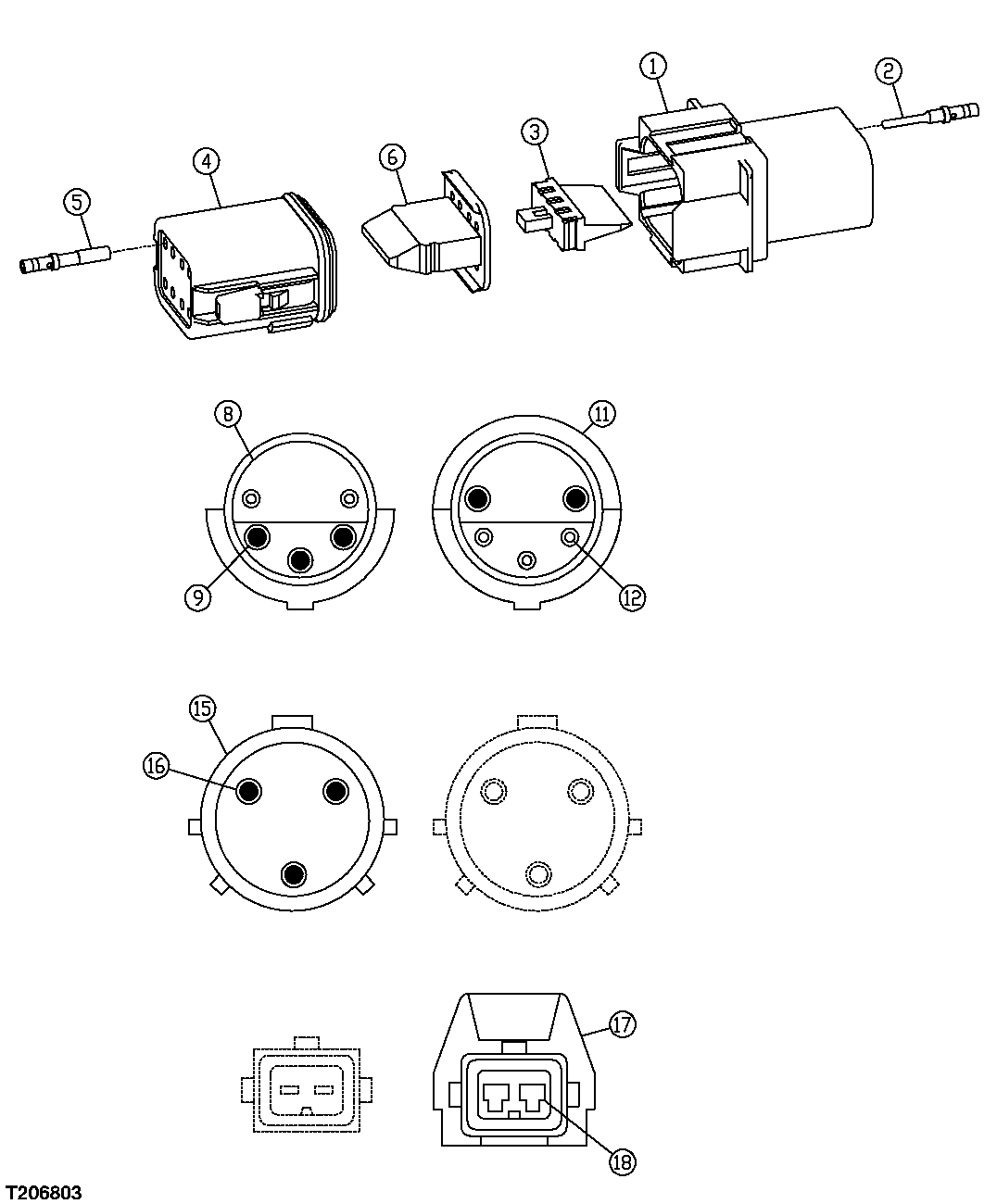

Travel Motor, Support Shaft, And Diesel Engine RPM Sensor Electrical Connectors

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8679	1	Elec. Connector Housing	8 WAY RCPT, PIN CONTACTS, TRAVEL MOTOR
2	57M7541	1	Elec. Connector Terminal	SOLID TERM M, 14-16 GA.
3	57M7680	1	Elec. Connector Terminal	RECPT. LOCKING WEDGE, 8 PIN
4	57M8746	1	Elec. Connector Housing	8WAY PLUG, TRAVEL MOTOR
5	57M7542	1	Elec. Connector Terminal	-
6	57M7679	1	Elec. Connector Terminal	LOCKING WEDGE, 8 SOCKET
7	57M9024	1	Elec. Connector Seal	8WAY INTERFACIAL SEAL, NOT ILLUSTRATED
8	57M8679	1	Elec. Connector Housing	8 WAY RCPT, PIN CONTACTS , TRAVEL MOTOR/SUPPORT SHAFT
9	57M7541	1	Elec. Connector Terminal	SOLID TERM M, 14-16 GA.
10	57M7680	1	Elec. Connector Terminal	Not Illustrated, RECPT. LOCKING WEDGE, 8 PIN
11	57M8680	1	Elec. Connector Housing	8 WAY PLUG, SOC CONTACTS, TRAVEL MOTOR/SUPPORT SHAFT
12	57M7542	1	Elec. Connector Terminal	-
13	57M7679	1	Elec. Connector Terminal	Not Illustrated, PLUG LOCKING WEDGE, 8 SOCKET
14	57M9024	1	Elec. Connector Seal	Not Illustrated, 8WAY INTERFACIAL SEAL
15	57M8671	1	Elec. Connector Housing	3 WAY HOUSING, SOCKET CONTACT, TRAVEL MOTOR SENSOR
16	57M9017	1	Elec. Connector Terminal	FEMALE CONTACT
17	LW6002985	1	Electrical Connector Assy	3 WAY FEM. CONNECTOR, RPM SENSOR; SUB FOR 57M8620
18	57M8699	1	Elec. Connector Terminal	1 MM2 JR TIMER CONTACT
19	57M7400	1	Elec. Connector Seal	SEAL PTS 1.2-2.1, NOT ILLUSTRATED

Travel Motor, Support Shaft, And Diesel Engine RPM Sensor Electrical Connectors
