Loader Electrical Sensors Limit Switches Series II (006200 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7874	2	Cap Screw	M6 X 30
2	AT264663	1	Circuit Box	-
3	LW9076544	2	Hydr.Oil Temperature Sensor	(SUB FOR AT264970 AND AT313508)(COOLANT, HYDRAULIC AND OIL TEMPERATURE SENSOR)
4	AT274449	2	Union Fitting	-
5	AT274450	2	Union Fitting	-
6	AT218439	2	Socket Head Screw	-
7	AT317550	1	Switch	Park Brake Switch, (SUB FOR AT274444)
8	AT322848	2	Union Fitting	-
10	AT264750	2	Ground Cable	-
11	19M7872	2	Cap Screw	M12 X 25, (SUB FOR 19M7268)
12	24M7240	2	Washer	13 X 25 X 3 mm
13	AT275720	1	Plate	-
15	AT266107	2	Elec. Connector Terminal	-
16	AT266108	2	Elec. Connector Cavity Plug	-
17	AT266109	1	Push Button	Horn
18	AT316610	1	Bracket	(SUB FOR AT266110)
19	AT266111	1	Bracket	-
20	AT266112	1	Label	-
21	AT304427	1	Pressure Switch	(SUB FOR AT264964)(TRAVEL SPEED RANGE)
22	AT266113	1	Wiring Harness	-
23	AT266114	1	Switch	Bucket Positioner, NLA; ORDER AT266105
23	AT266114	1	Switch	NLA; ORDER AT316608
24	AT316603	1	Reducer	(SUB FOR AT316602)
25	AT274449	4	Union Fitting	( AT316613 NLA)
25	AT316614	2	Adapter Fitting	-
26	-	1	Part 26	1.97 m, (MAKE FROM LW10306332 ) (SUB FOR AT316615) (CTL)
26	-	1	Part 27	1.97 m, (MAKE FROM LW10306117 ) (SUB FOR AT316616) (CTL )
27	AT316608	1	Switch	-
27	AT266105	1	Switch	-
28	AT266115	1	Wiring Harness	-
29	AT304430	1	Switch	(BOOM HEIGHT KICK-OUT)
30	AT266106	1	Switch	-
30	AT316609	1	Switch	-
31	AT265068	8	Socket Head Screw	-
32	24M7250	4	Washer	6.400 X 17 X 3 mm
33	-	1	Part 36	0.42 m, (MAKE FROM LW10306332 ) (SUB FOR AT316615)(CTL )
33	-	1	Part 37	0.42 m, (MAKE FROM LW10306116 ) (SUB FOR AT316616) (CTL)

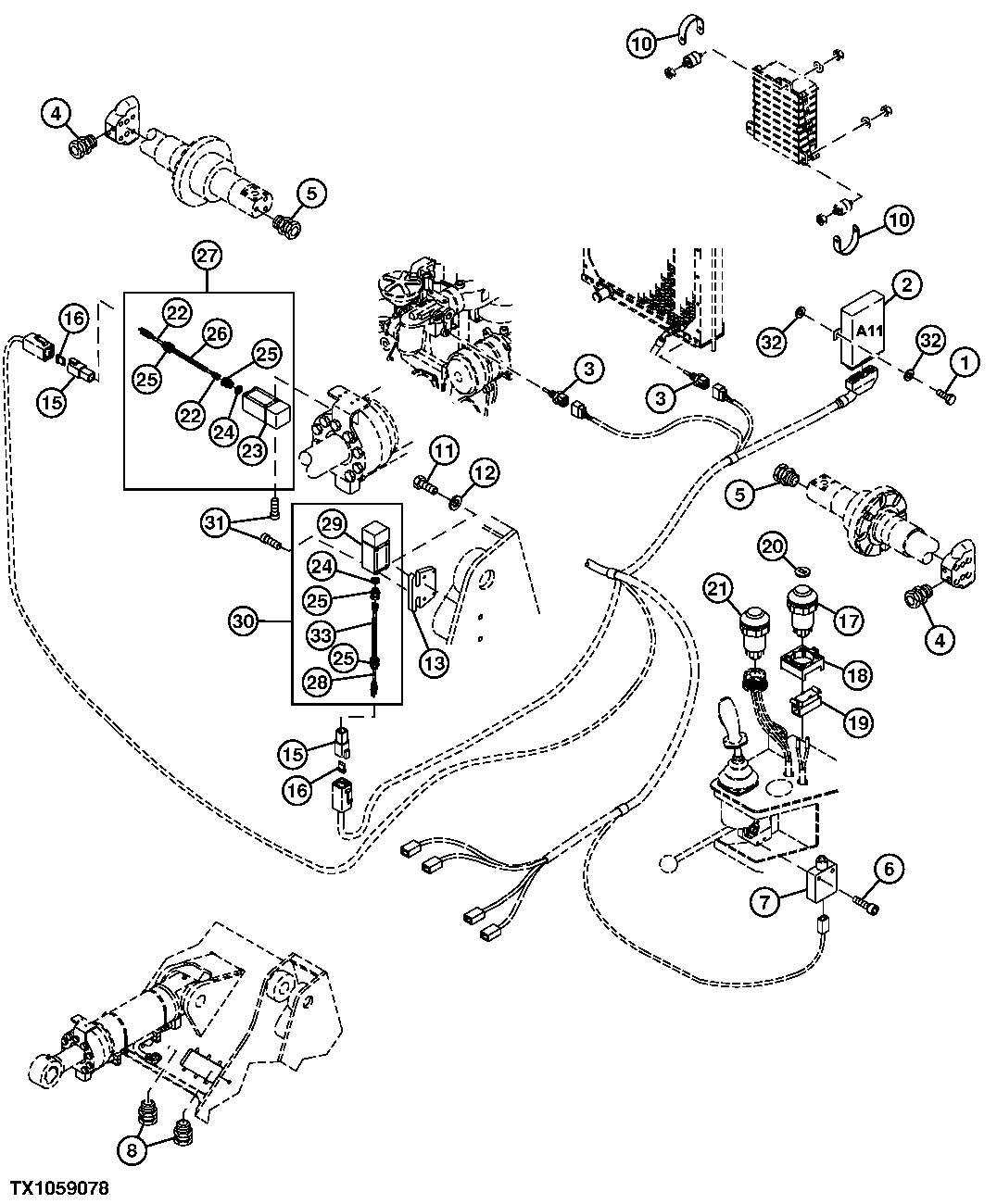

Loader Electrical Sensors Limit Switches Series II (006200 - )
