Left Hydrostatic Pump And Transmission Charge Pump (Series II) (006200 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
23	19M7761	2	Screw	M8 X 16
24	AT274948	1	Flange	-
25	PG200183	1	Hydraulic Pump Reman	REMAN FOR AT266036, LH
25	AT266036	1	Hydraulic Pump	NLA, ORDER PG200183, LH
26	XGE18LMEDCF	1	Fitting	SUB FOR AT274522
27	AT274671	1	Fitting	-
28	PMH3844	1	Fitting	SUB FOR AT218900
28	51M7102	1	O-Ring	20 X 2 mm
29	XEW18LOMDCF	1	Adapter Fitting	SUB FOR AT274831 AND LW247108302
29	51M7109	1	O-Ring	15 X 2 mm
30	XGE10LMEDCF	1	Fitting	SUB FOR AT218623
31	PMH3083	1	Fitting	SUB FOR AT250332
31	PMH3830	1	Fitting	-
32	LW7026656	1	Coupling	SUB FOR AT274772
36	PMH3849	1	Fitting	SUB FOR AT275174
36	51M7114	1	O-Ring	32 X 2.500 mm
37	XEL22LCF	1	Fitting	SUB FOR AT218883 AND LW247138602
37	51M7102	1	O-Ring	20 X 2 mm
38	LW7026656	1	Coupling	SUB FOR AT274772
39	19M8658	4	Screw	M8 X 60
40	19M9738	4	Screw	M8 X 25, SUB FOR AT274141
41	AT266572	2	Cap Screw	-
42	AT274207	2	Socket Head Screw	-
43	AT275652	2	Link	-
44	19M9233	2	Screw	M10 X 40
45	AT265376	1	Fitting	-
46	XEL15LCF	1	Fitting	SUB FOR AT218875 AND LW472300414
46	51M7109	1	O-Ring	15 X 2 mm
47	PMH3838	1	Fitting	SUB FOR AT218902
47	51M7109	1	O-Ring	15 X 2 mm
48	XEW10LOMDCF	1	Adapter Fitting	This Application, SUB FOR AT218871
48	51M7106	1	O-Ring	7.500 X 1.500 mm
49	AT274812	1	Fitting	-
50	19M8265	2	Screw	M6 X 50
51	19M7603	2	Screw	M6 X 20
52	AT250327	1	O-Ring	This Application, SUB FOR AT261788, OR L53840
53	LW10289802	4	Washer	This Application, SUB FOR 24M7088
54	51M7114	3	O-Ring	32 X 2.500 mm, SUB FOR AT320754 AND AT274538
55	LW10289803	12	Washer	This Application, SUB FOR 24M7055
56	AT250338	1	O-Ring	-

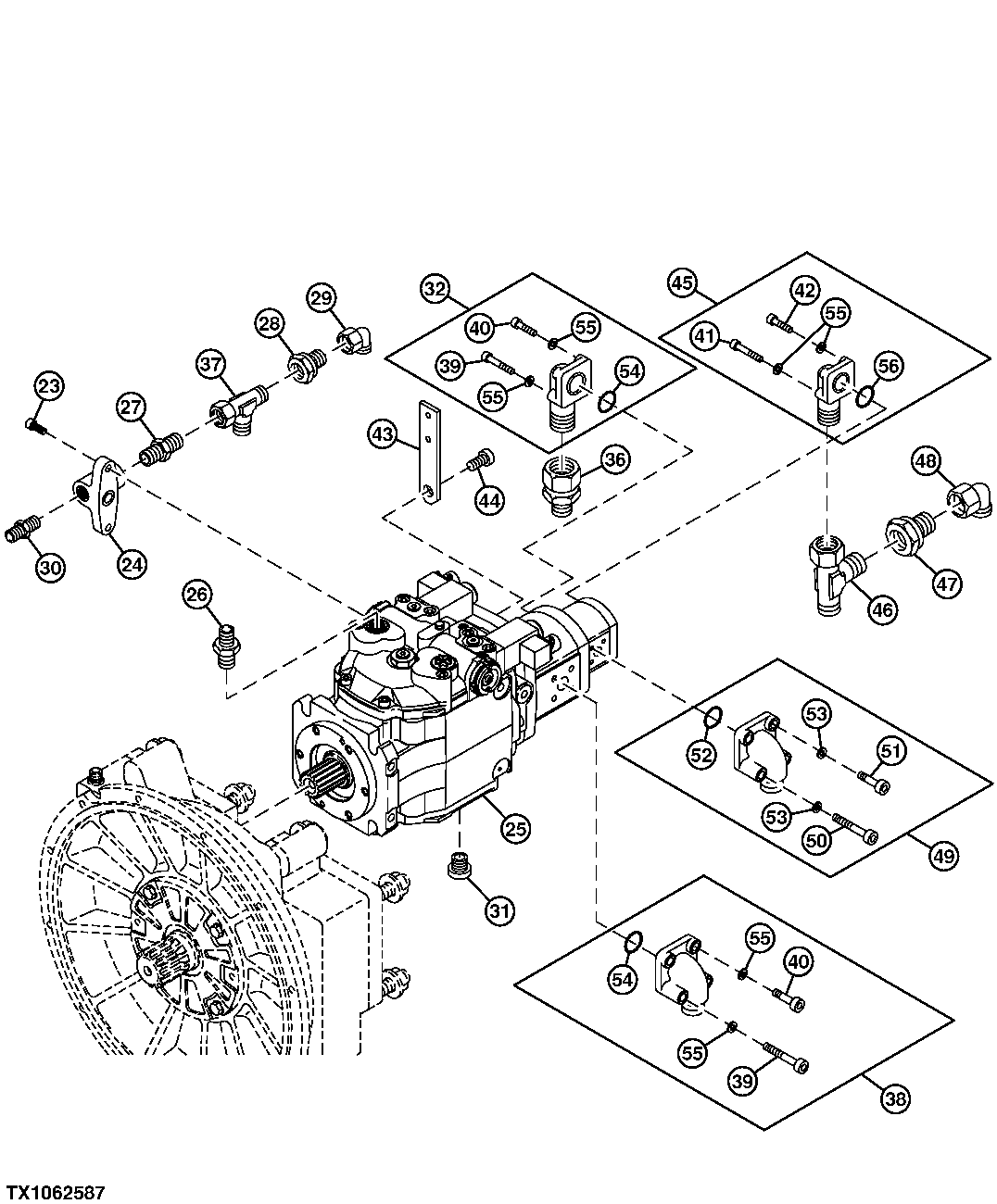

Left Hydrostatic Pump And Transmission Charge Pump (Series II) (006200 - )
