Instrument Panel, Vehicle Main Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21M7376	1	Screw	M6 X 50
2	AT274865	2	Seal	-
3	AT275263	1	Seal	-
4	AT274429	1	Gasket	-
5	AT274431	1	Electrical Connector Assy	-
6	21M7209	8	Screw	M4 X 10, SUB FOR AT274019
9	AT274874	1	Plug	-
10	AT274425	51	Elec. Connector Terminal	-
10	AT274426	10	Elec. Connector Terminal	-
10	AT274427	11	Elec. Connector Terminal	-
11	AT274430	5	Elec. Connector Terminal	-
12	AT274424	1	Socket	Bridge
13	AT274984	1	Electrical Connector Assy	-
14	AT274428	1	Housing	Add On Housing
15	21M7250	4	Screw	M4 X 12
16	AT275264	1	Seal	-
17	AT275678	1	Instrument Panel	-
18	AT274985	2	Bracket	-
19	AT274389	2	Coupling	-
20	AT274215	1	Screw	-
21	21M7405	1	Screw	M6 X 40
22	AT275268	1	Plate	Rubber
23	AT274529	4	Plug	-
24	AT275651	1	Housing	-
25	AT317622	1	Hinge	SUB FOR AT275267
26	AT275723	2	Bolt	-
27	AT275722	1	Bracket	-
28	AT275721	1	Support	-
29	14M7139	1	Nut	M4
30	21M7395	2	Screw	M4 X 8, SUB FOR AT274060
31	AT275827	1	Wiring Harness	-
31	LW9413876	1	Wiring Harness	-
32	R44302	25	Tie Band	-
33	AT300280	1	Wiring Harness	Main Wiring Harness
33	AT266103	1	Wiring Harness	Main Wiring Harness
34	AT278487	1	Cover	-
35	LW10409890	1	Spring	SUB FOR AT278423
36	AT274982	1	Ball Joint	-
37	AT278361	1	Snap Ring	-
38	19M8618	4	Screw	M6 X 12
39	19M8024	4	Screw	M8 X 30
40	AT319617	1	Instrument Panel	Main Wiring Harness
40	AT319464	1	Instrument Panel	Main Wiring Harness

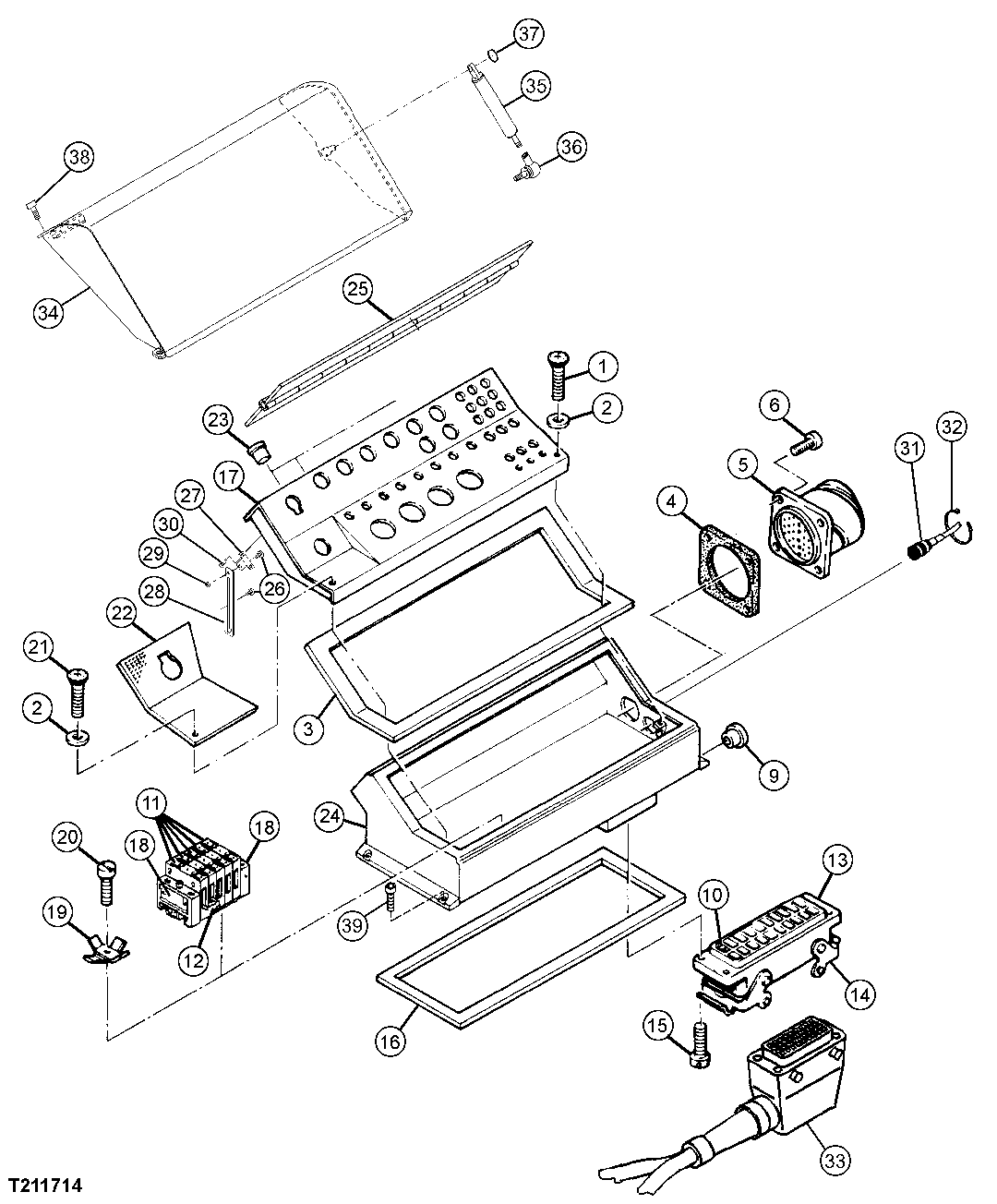

Instrument Panel, Vehicle Main Wiring Harness
