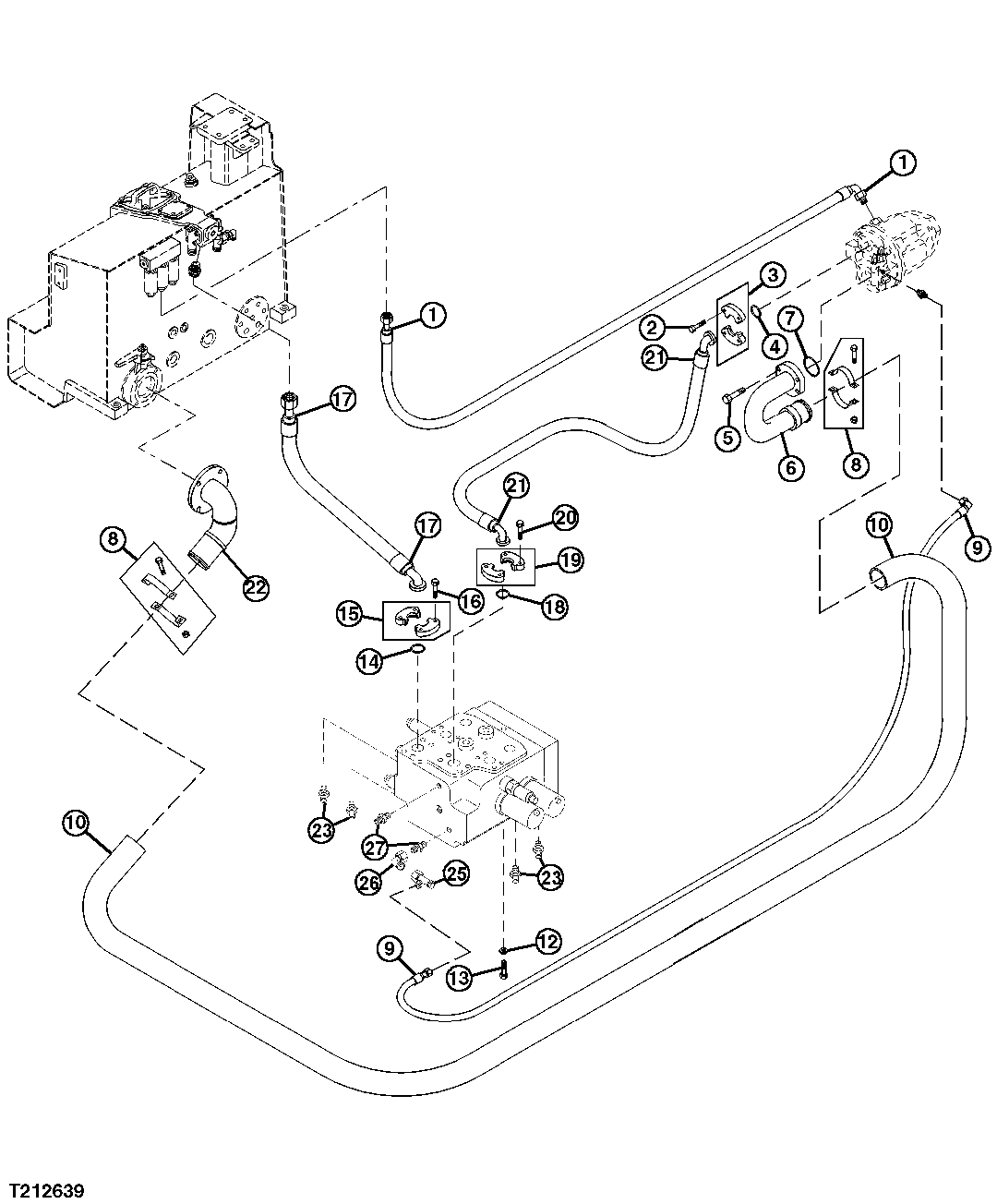

Hydraulic Suction, Pressure, and Return Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT274817	1	Hydraulic Hose	(INCLUDES (2) 51M7109)
2	19M7662	4	Cap Screw	M10 X 30
3	AT274312	2	Flange	-
4	LW10472425	1	O-Ring	(SUB FOR LW10290518 AND AT218852)
5	19M7403	4	Cap Screw	M12 X 35
6	AT275579	1	Tube	-
7	LW10490786	1	O-Ring	(SUB FOR LW10290516 AND AT274588)
8	AT274767	2	Clip	-
9	AT274955	1	Hydraulic Hose	Fabricate, (INCLUDES (2) 51M7105)
10	AT275637	1	Hose	-
12	24H1272	3	Washer	9/16" X 1-1/4" X 1/4"
13	19M8011	3	Cap Screw	M12 X 30
14	LW10472425	1	O-Ring	(SUB FOR LW10290518 AND AT218852)
15	AT274312	2	Flange	-
16	19M7662	4	Cap Screw	M10 X 30
17	AT275061	1	Hydraulic Hose	(INCLUDES U10289 AND 51M7114)
18	LW10490781	1	O-Ring	(SUB FOR LW10290519 AND AT218851)
19	LW10286360	2	Flange	(SUB FOR AT218503, THIS APPLICATION)
20	19M7493	4	Cap Screw	M12 X 40
21	AT274960	1	Hydraulic Hose	Fabricate, (INCLUDES T78313 AND U10289)
22	AT275715	1	Tube	-
23	XGE10LMEDCF	1	Fitting	SUB FOR AT218623
25	XEL08SCF	1	Fitting	SUB FOR AT218876
25	51M7105	1	O-Ring	6 X 1.500 mm
26	XEW08SCF	1	Fitting	SUB FOR AT190974
27	AT218877	2	Fitting	-

Hydraulic Suction, Pressure, and Return Hoses

Нет текстового описания
