Hydraulic Hoses And Fittings, Three Shank Ripper

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT264638	2	Cap Screw	This Application, (SUB FOR AT218440)
2	24H1380	2	Washer	11/16" X 1-3/4" X 0.194", (SUB FOR AT218460)
3	AT278532	2	Pin	-
4	AT275211	4	Cap	Dust Cap
5	LW10490784	4	O-Ring	(SUB FOR LW10290520 AND AT274678)
6	LW10286359	8	Flange Fitting	This Application, (SUB FOR AT274302)
7	19M7550	16	Cap Screw	M10 X 35
8	AT278439	2	Hydraulic Hose	Fabricate, (INCLUDES (2) T59014)
9	19M8539	8	Cap Screw	M8 X 90
10	LW10490784	4	O-Ring	(SUB FOR LW10290520 AND AT274678)
11	AT278587	2	Hydraulic Cylinder	-
12	AT278580	1	Retainer	-
13	R113500	3	Washer	-
14	19M7610	3	Cap Screw	M20 X 40
15	AT278549	1	Tube	(HYDRAULIC, LEFT CYLINDER) (BEFORE ORDERING CHECK TO SEE IF RIPPER WAS STANDARD FROM FACTORY, S.N. MIGHT NOT BE CORRECT IF INSTALLED AFTER PURCHASE, CHECK IF LINE IS 1 PIECE OR MULTIPLE PIECES)
16	AT276016	8	Screw	-
17	AT278438	2	Hydraulic Hose	Fabricate, (INCLUDES (2) T59014)
18	AT278533	1	Retainer	-
19	AT278368	1	Cap Screw	-
20	AT278548	1	Tube	(HYDRAULIC, RIGHT CYLINDER) (BEFORE ORDERING CHECK TO SEE IF RIPPER WAS STANDARD FROM FACTORY, S.N. MIGHT NOT BE CORRECT IF INSTALLED AFTER PURCHASE, CHECK IF LINE IS 1 PIECE OR MULTIPLE PIECES)
21	AT304108	2	Line	-
22	AT304105	1	Junction Block	Right Cylinder
25	AT304095	1	Junction Block	Left Hand Cylinder
26	XGE25SMEDCF	2	Fitting	SUB FOR AT218491
27	XPSR25SX	2	Fitting	SUB FOR AT304111
28	XM25SCFX	2	Fitting	SUB FOR AT304109

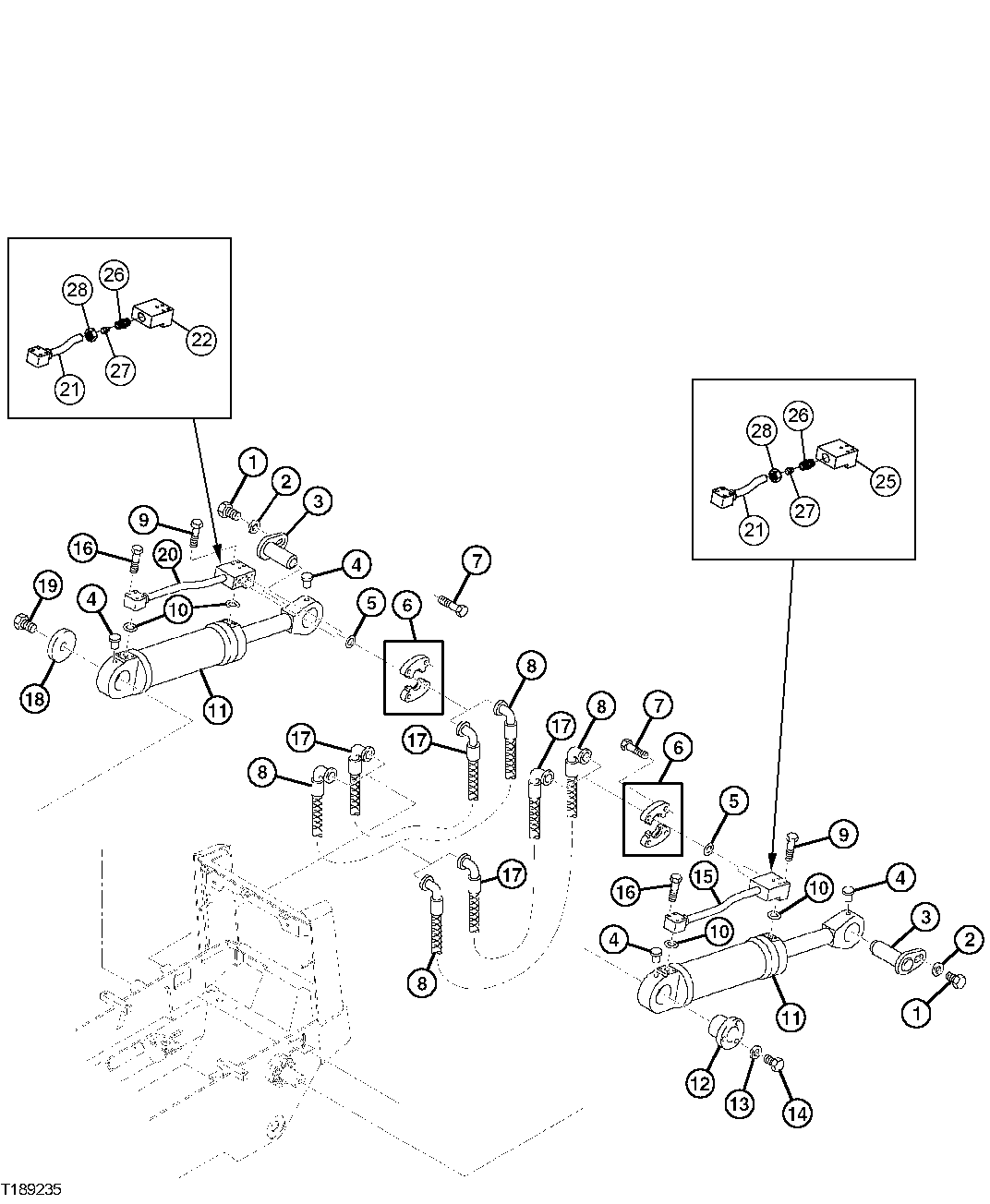

Hydraulic Hoses And Fittings, Three Shank Ripper
