Final Drive Motor, Oil Sensor, And Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT261728	4	Bolt	-
2	AT274010	4	Socket Head Screw	-
3	AT275258	2	Flange	-
4	LW10490781	2	O-Ring	SUB FOR LW10290519 AND AT218851
5	AT315082	1	Hydraulic Motor	Components On Another Page, SUB FOR AT263599
5	AT321543	1	Hydraulic Motor Reman	SUB FOR AT263599, REMAN FOR AT315082, REFER TO DTAC SOLUTION 55217 FOR DETAILS REGARDING TRAVEL MOTOR LEAKAGE PRIOR TO ORDERING THIS SERVICE PART
5	AT315082	1	Hydraulic Motor	-
5	AT321543	1	Hydraulic Motor Reman	REMAN FOR AT315082, REFER TO DTAC SOLUTION 55217 FOR DETAILS REGARDING TRAVEL MOTOR LEAKAGE PRIOR TO ORDERING THIS SERVICE PART
7	XGE18LMEDCF	1	Fitting	SUB FOR AT274522
8	R113500	2	Washer	-
9	19M7612	2	Cap Screw	M20 X 55, SUB FOR AT274130
10	AT274986	2	Bearing Cap	-
11	AT218510	1	Plate	SUB FOR AT274784
12	19M7685	2	Cap Screw	M6 X 70
13	XGE12LMEDCF	3	Elec. Connector Accessory	SUB FOR AT274170
14	AT275131	1	Hydraulic Hose	INCLUDES (2) 51M7107
15	AT275178	1	Fitting	-
16	AT263611	1	Adapter Fitting	-
17	AT275130	1	Hydraulic Hose	INCLUDES (2) 51M7107
18	XEW12LOMDCF	1	Adapter Fitting	SUB FOR AT274796 AND LW247117702
18	51M7107	1	O-Ring	9 X 1.500 mm
19	AT275763	2	Adapter Fitting	-
20	AT274338	1	Sensor	Oil Level Sensor
21	AT306568	1	Wiring Harness	RH
21	AT275545	1	Wiring Harness	RH
21	AT306567	1	Wiring Harness	LH
21	AT275544	1	Wiring Harness	LH
6A	XEW18LOMDCF	1	Adapter Fitting	SUB FOR LW247108302 AND AT274831, LH ONLY
6A	51M7109	1	O-Ring	15 X 2 mm
6B	AT187610	1	Elbow Fitting	RH ONLY

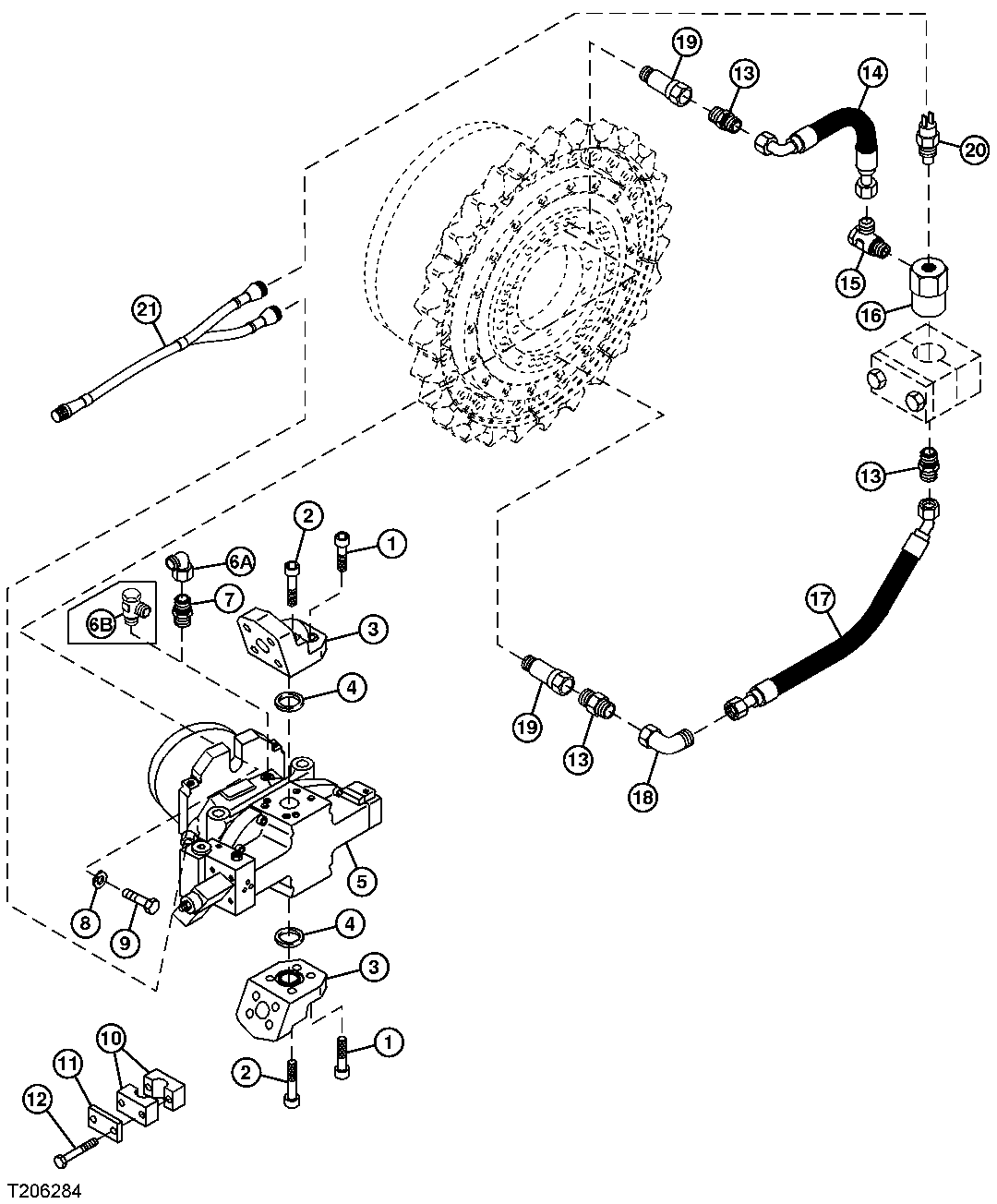

Final Drive Motor, Oil Sensor, And Wiring Harness
